InfraStruXure Power Generation System 51
Configuring the ATS Network Management
Interface
Connect the ATS to your network

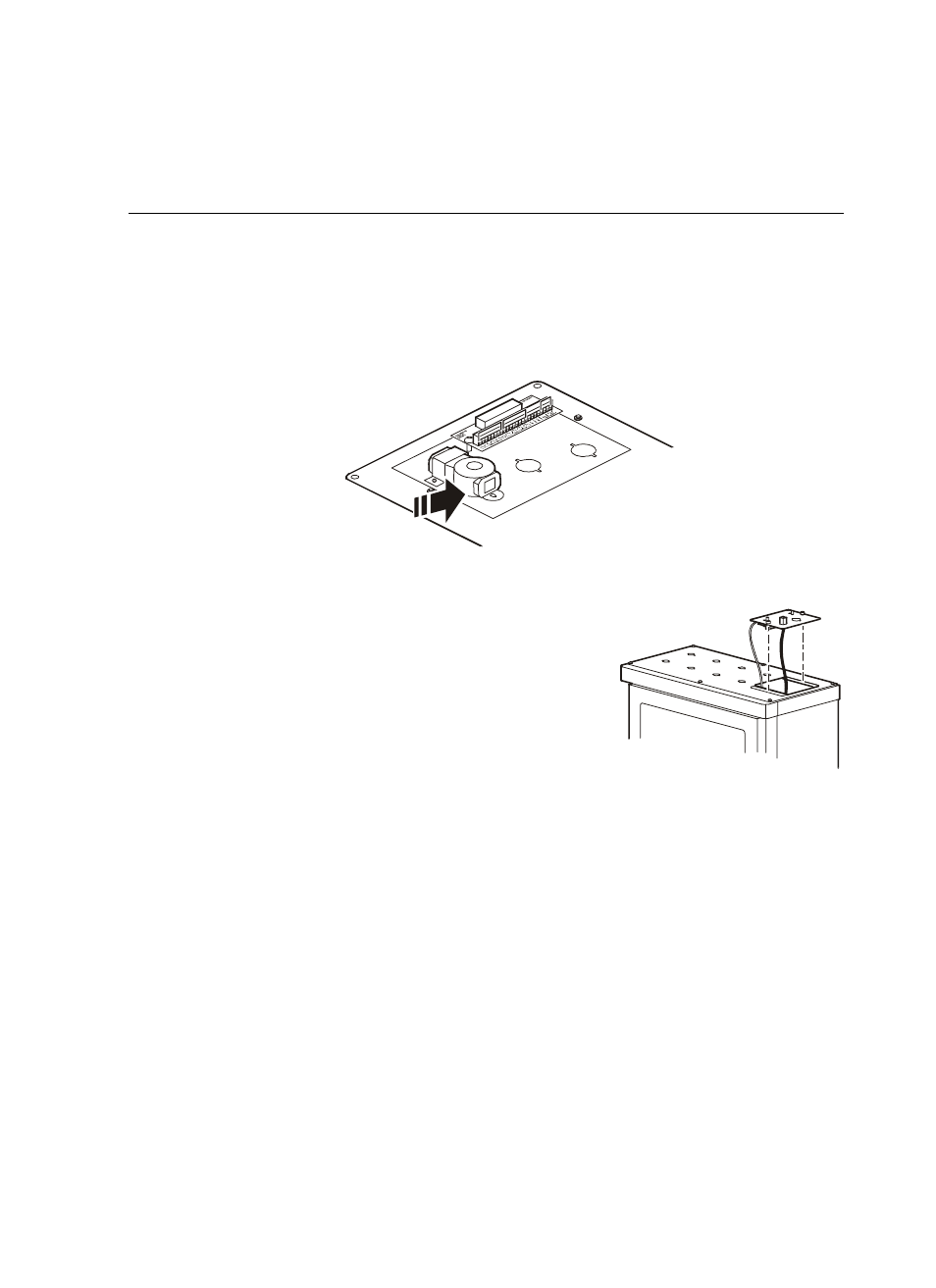

1. Connect a CAT-5 network cable to the surge-protected ethernet port on the user connection
plate. The arrow in the illustration below is pointing to the port. The figure on page 11 shows
the location of the user connection plate on the roof of the ATS.
You can make this connection from inside the enclosure, or
you can remove the user connection plate from the ATS to
make the connection. A Phillips or standard screwdriver is
needed to loosen the two captive screws. Use the knockout
in this plate to route the cable. If you decide to remove the
plate, make sure not to disturb the existing connections.
2. Run the connected CAT-5 network cable through the
knockout in the user connection plate to your network connection.
3. Configure the TCP/IP settings of the ATS (see “Configuration overview” on page 52 for further
instructions).
