ATS Component Details
Motorized switches

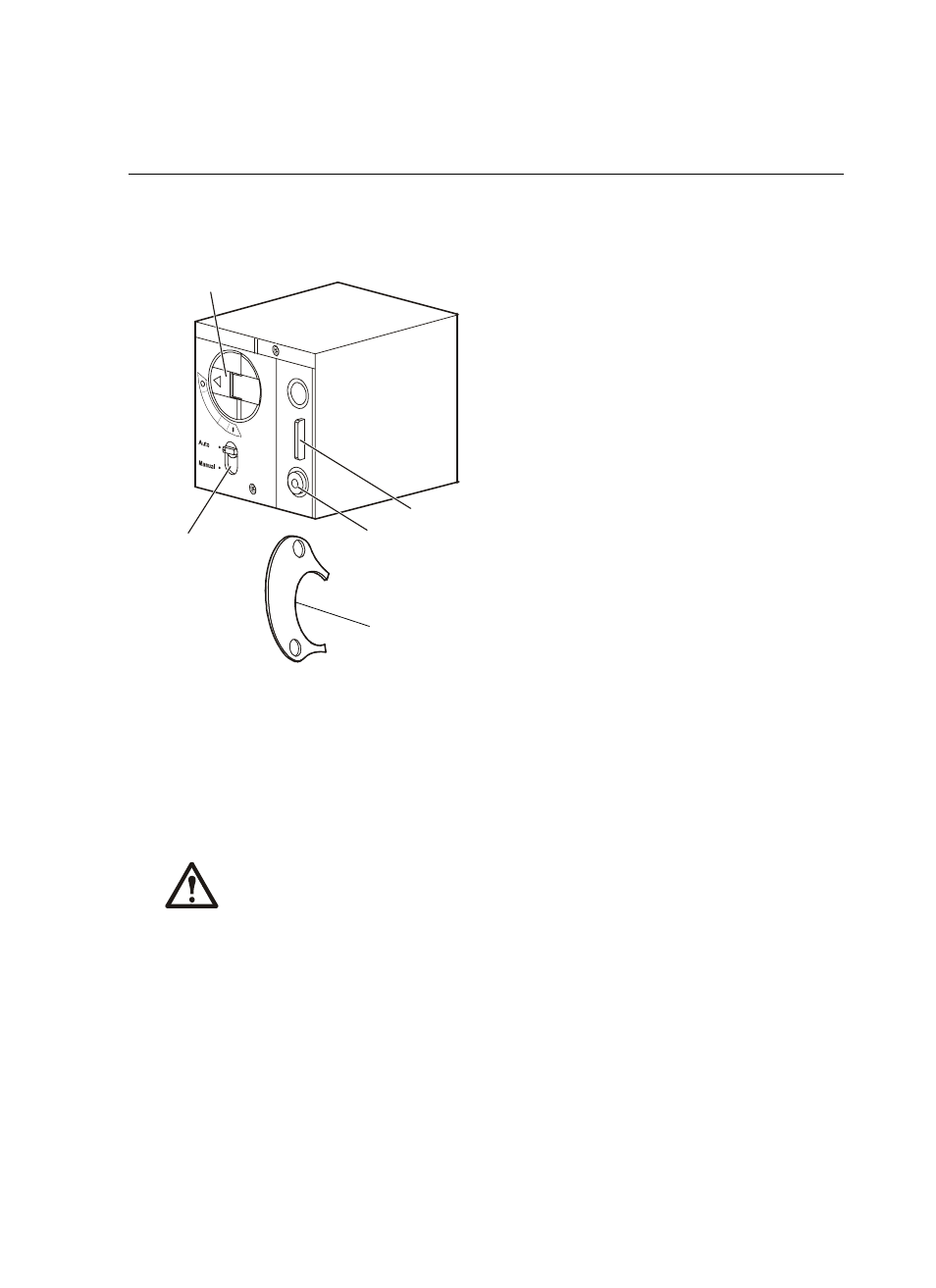

The operating lever indicates the present
position of the motorized switch [OFF
(
),
TRIP, or ON
(
)
]. This lever is also used
during manual operation of the switch (see
“Emergency Manual Operation” on page 22
for proper operating procedures).
The on/off selector allows the operator to
choose whether or not the motorized switch
controls the input switch. The selector should
only be used for the purpose of implementing
emergency manual operation (see page 21 for
more information).
Pressing the trip button immediately trips the
motorized switch. If this button is pressed
during automatic operation, the operating
lever will move to the OFF
(
)
position.
WARNING: Do not press this button while
load is connected!
When the motorized switch is in the OFF
(
)
position, attach a lock-out tag to the withdrawal
prevention lock for added safety.
The operating lever key is used during manual operation of the motorized switch to assist in
turning the operating lever. The key is provided in the hardware bag with the ATS.
D A N G E R
Before operating the motorized switches, review “Emergency Manual Operation”
on page 22. Failure to follow proper procedures could cause personal injury or
damage to the equipment.
