InfraStruXure Power Generation System 29

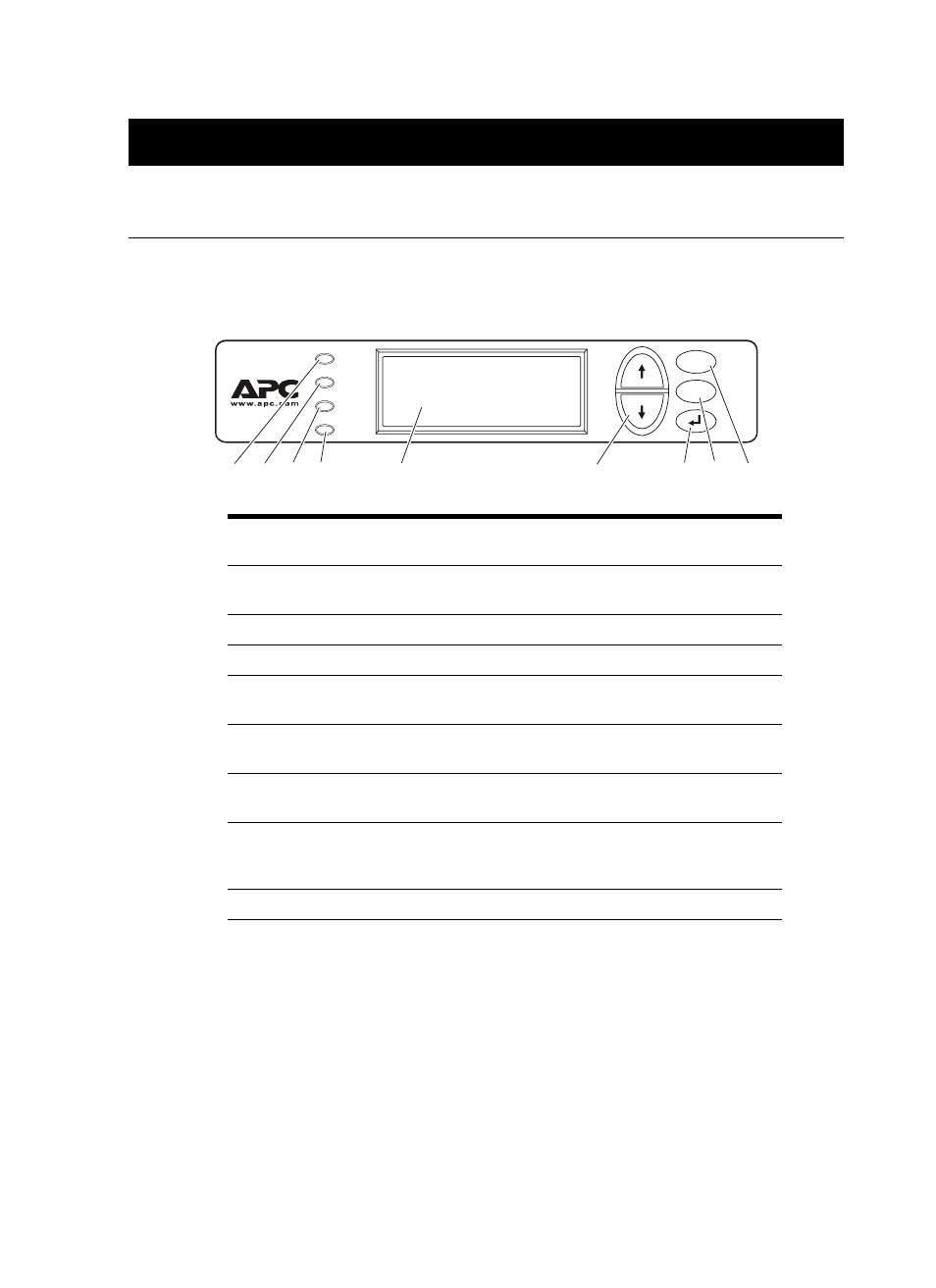

Display Interface
Overview
The ATS display interface is used to configure settings, set alarm thresholds, and provide audible and
visual alarms.
ESC
?
Load
On
Check
Log
Gen Set
On
Alarm
        

Load On LED When lit green, all output phases are within the limits
specified by the output alarm limit thresholds.

Check Log LED When lit yellow, at least one new alarm condition has
been detected.

Gen Set On LED When lit green, the generator is running.

Alarm LED When lit red, an alarm condition exists.

LCD For viewing alarms, status data, instructional help, and
configuration items.

U p and Down
navigation buttons
Selects menu items and accesses information.

ENTER button Opens menu items and inputs changes to system
parameters.

HELP button Launches context-sensitive help. Press the H ELP button
for information about each item on the screen and for
instructions about performing certain tasks.

ESC button Returns to previously displayed screen.
