Smart Distribution Panel with ATS

12

InfraStruXure Power Generation System

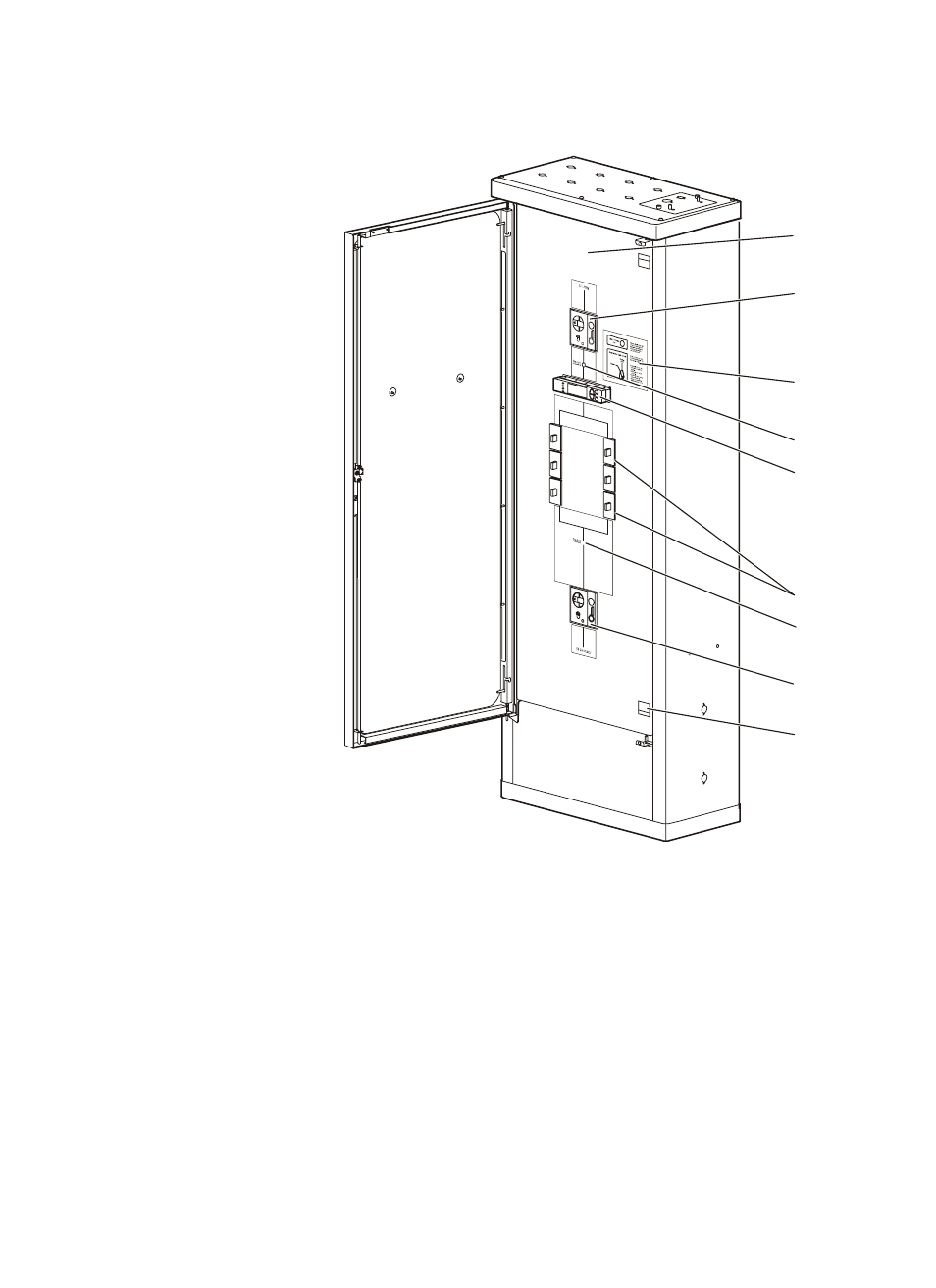

Front view, door open

 Remove the dead front to

obtain access to the panel

board for maintenance and

wiring.

 The Source 1 motorized

switch (see “Motorized

switches” on page 15)

controls operation of the

Source 1 input switch.

 The automatic operation

control panel is used to set

the generator to automatic

operation or, alternatively, to

remove the generator from

automatic operation (see

“Automatic operation control

panel” on page 16).

 The Source 1 lamp lights

green when the Source 1

switch is ON (closed).

 The display interface

provides a local interface for

viewing status data,

configuring settings, and

operating the ATS. The

display interface has an LCD,

a five-button panel,

basic status lights, and a beeper (see

“Display Interface” on page 29 for detailed information about the

contents and operation of each screen).

 The sub-feed output breakers provide power to equipment in the data center (see

page 68 for

detailed information about installing these breakers).

 The Source 2 lamp lights green when the Source 2 switch is ON (closed).

 The Source 2 motorized switch (see “Motorized switches” on page 15) controls operation of the

Source 2 input switch.

 Use the latches to open the dead front.
