Chapter 4 _______________________________________________________________ Installation
VAISALA _______________________________________________________________________ 61
1012-207

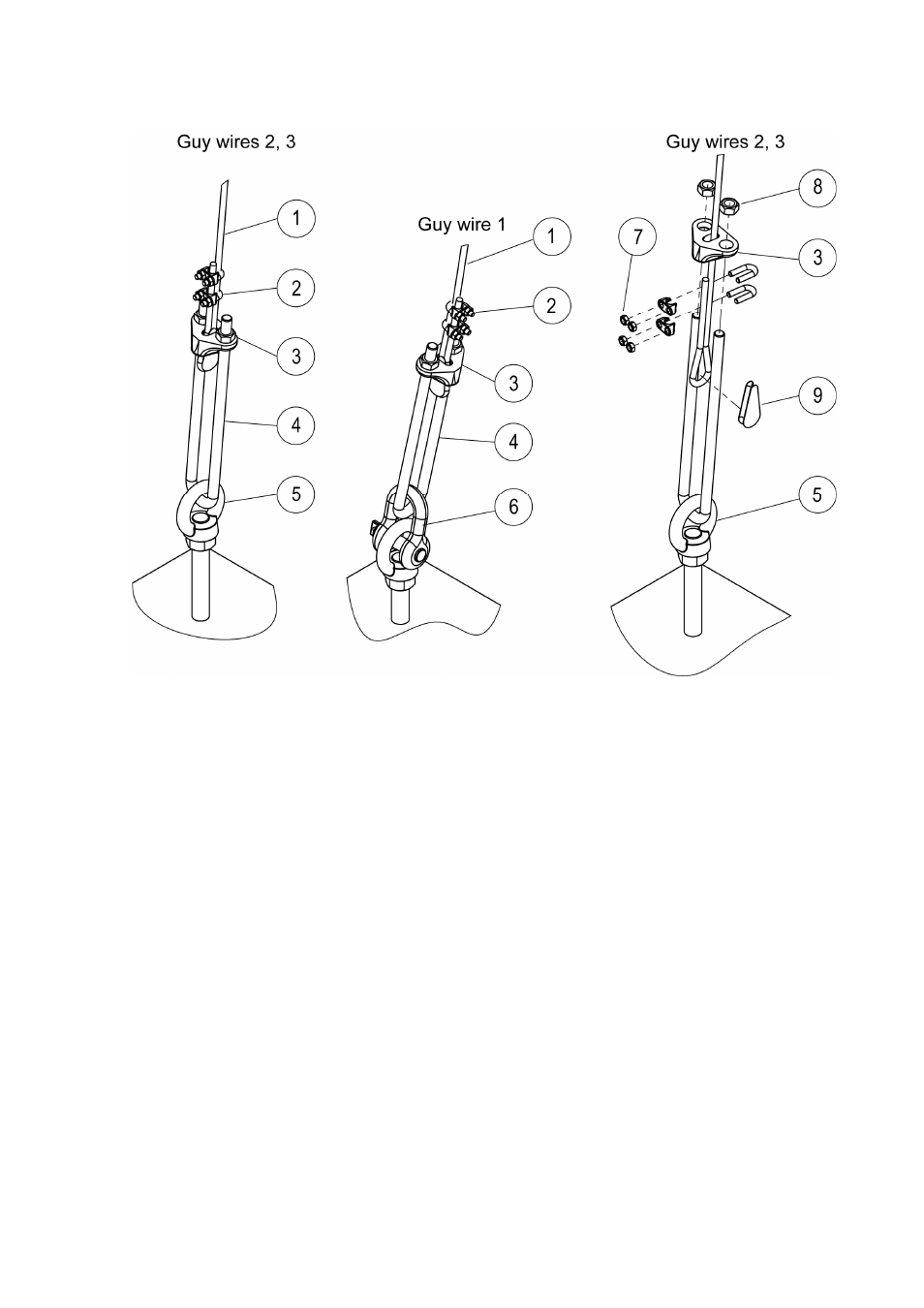

Figure 24 Connecting Guy Wires to Concrete Blocks
The following numbers refer to Figure 24 above:
1 = Guy
wire
2 = Wire clip
3 = Strap
4 = U-bolt
5 = Eye
nut
6 = Additional bow shackle
7 = Nut M6 DIN934; use wrench 10 mm
8 = Nut M12 DIN934; use wrench 19 mm
9 = Wedge
