Visual Check
Open the enclosure and check that all the equipment is present. Check
that the QML logger, power supply, and communication devices are
connected properly. Remove the cover of the logger for visually checking
the CPU board and other components located under the cover. In Figure
121 below, the logger is shown without the cover and the optional
communication modules.
1004-120

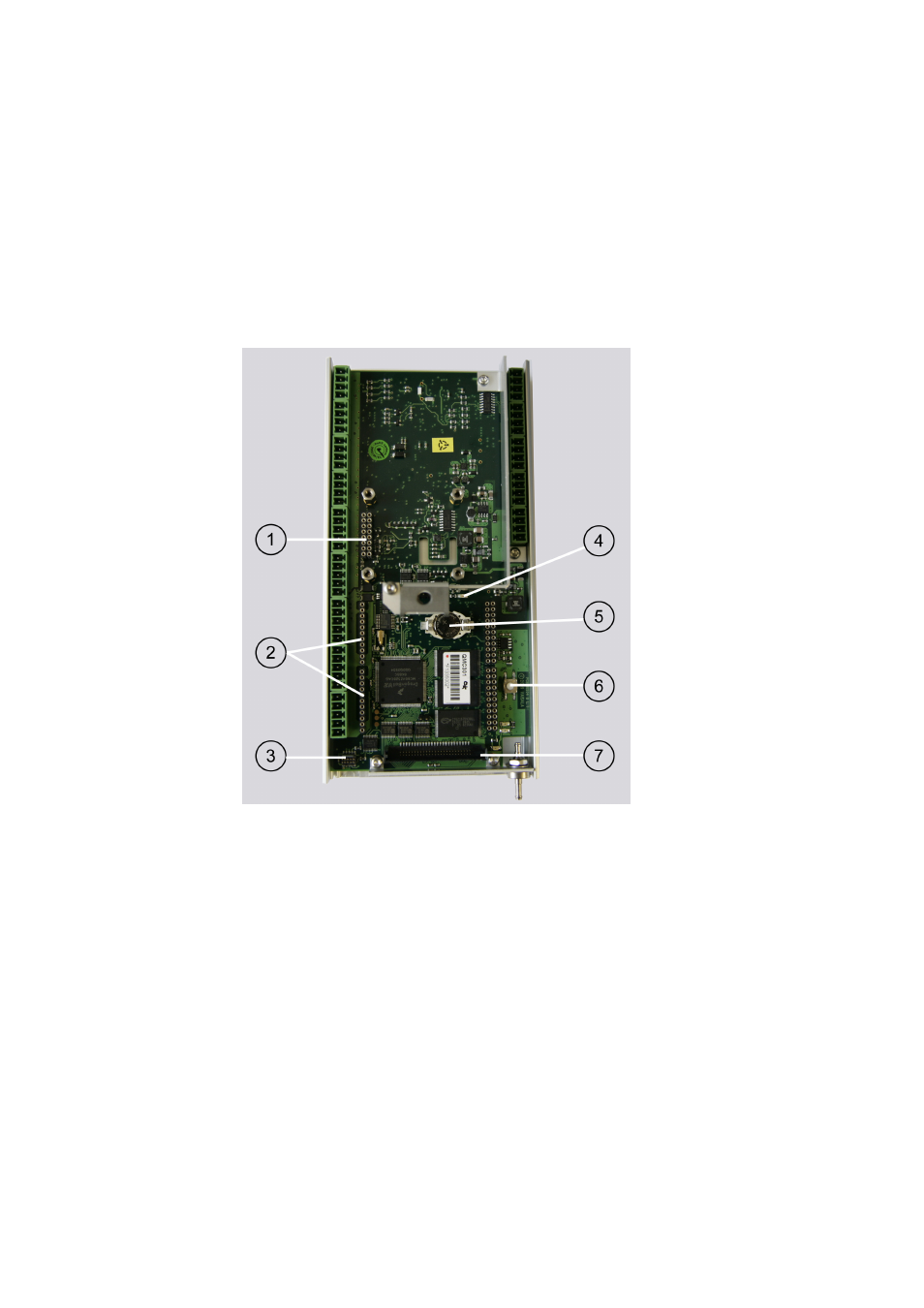

Figure 121 QML Logger without Cover
The following numbers refer to Figure 121 above:
1 = Pressure
sensor connector
2 = Communication module places MOD1 and MOD2
3 = SPI
connector
4 = Status LED (green)
5 = Lithium battery for RTC
6 = Reset
button
7 = CF Card connector
