Assembling Remaining Parts of Mast

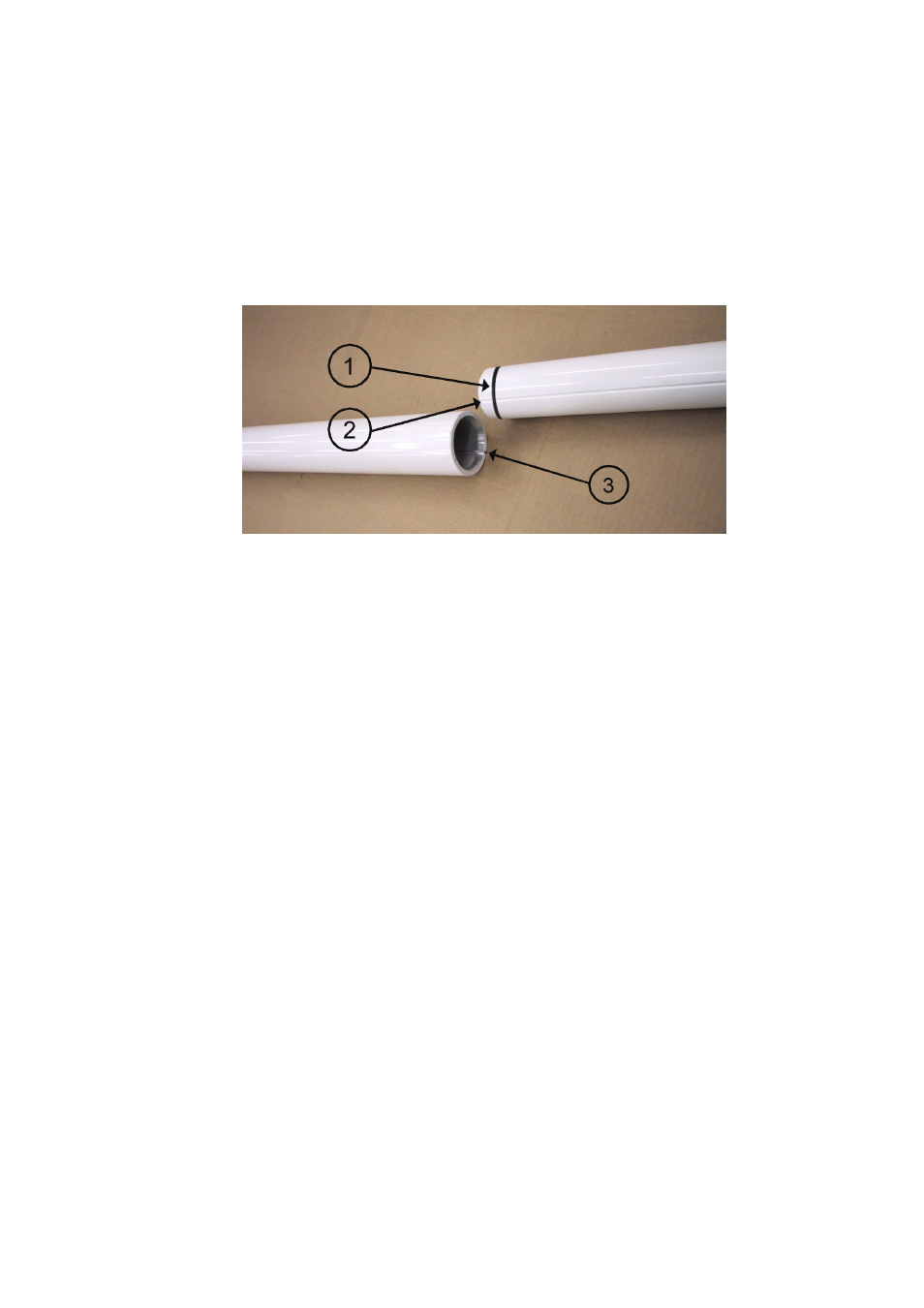

The remaining parts of the mast have an O-ring (number 1 in Figure 16
below) installed on the mast part. Just slide the parts of the mast together
to connect them. You need to rotate either of the parts to align the groove
(2) on the upper part and the ridge (3) inside the lower part.
1012-205
Figure 16
Aligning Remaining Mast Parts
