Ethernet Communication Module DSE101
1004-122

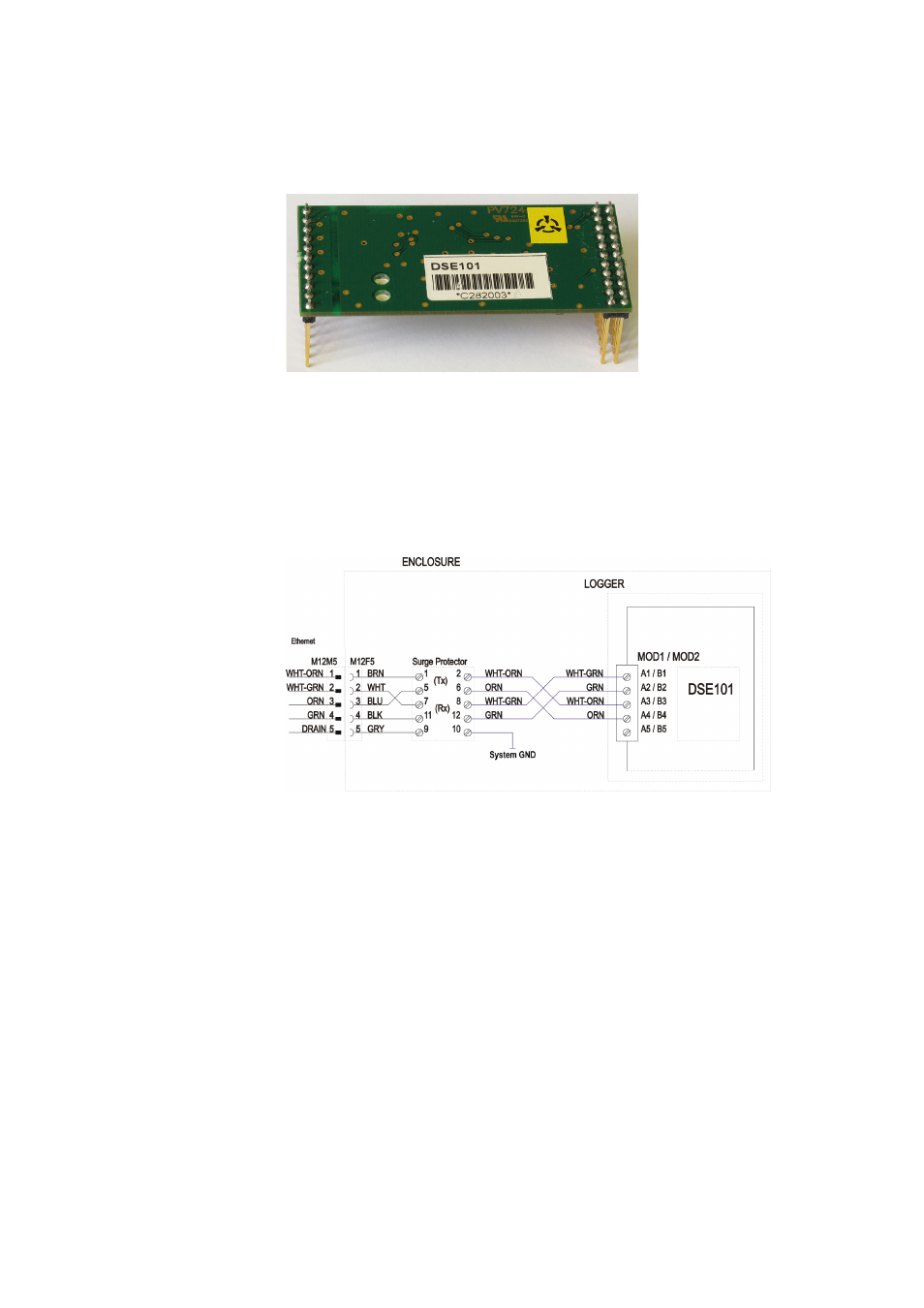

Figure 133 Ethernet Communication Module DSE101
The Ethernet module DSE101 provides a 10base-T connection, which is
compatible with 100 Mbps and 1 G switches; DSE101, however,
operates at 10 Mbps. Supported by software, the module allows virtual
serial port connections and socket connections to be established to the
QML logger.
1003-031
Figure 134 DSE101 Ethernet Module Wiring Diagram
