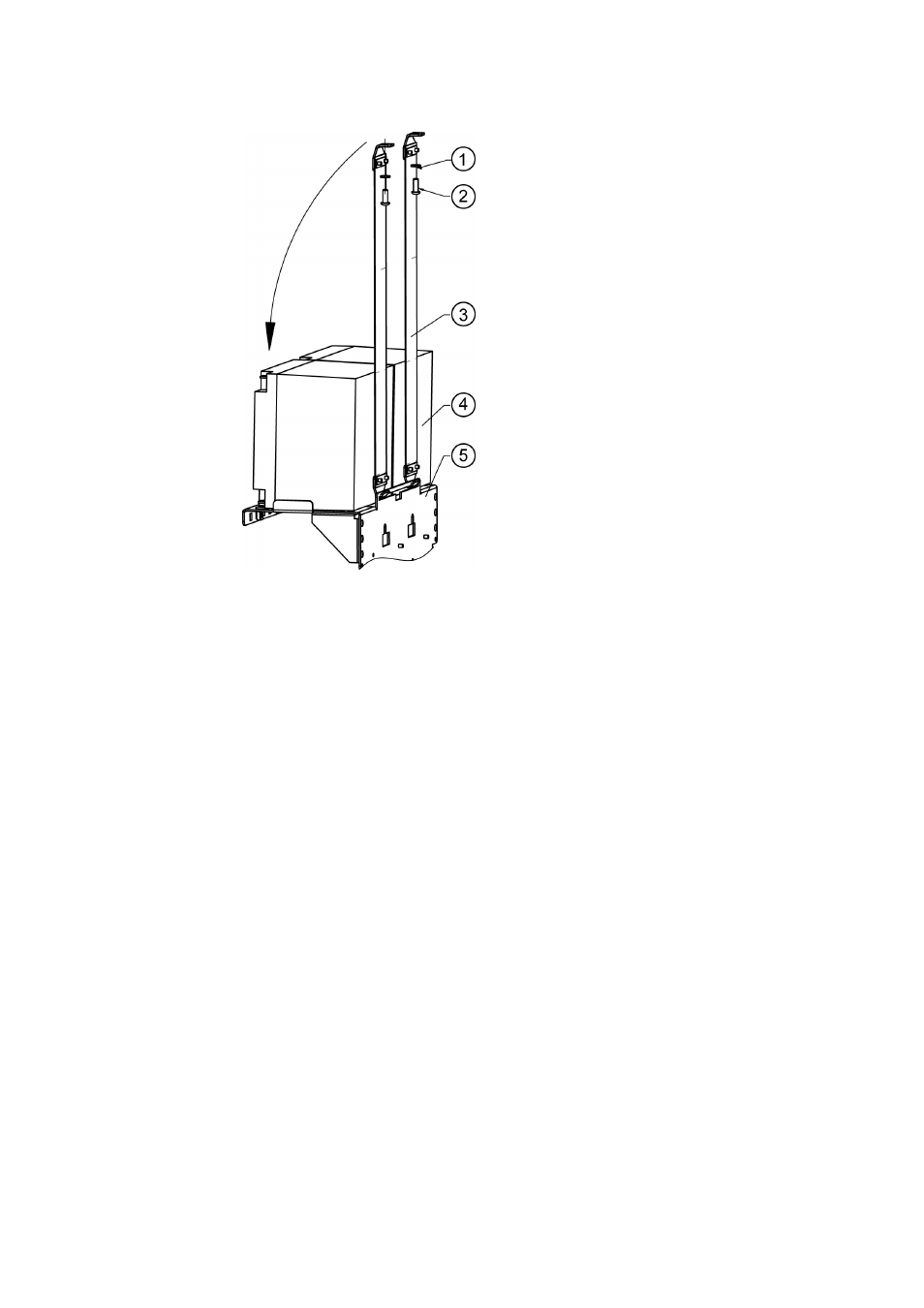

Figure 55
Attaching Strips over Battery
The following numbers refer to Figure 55 above:
1 = Spring washer B6 DIN127 A4, 2 pcs
2 = Screw M6x25 ISO7380 A4, 2 pcs; use Allen key 4 mm
3 = Battery strap, 2 pcs
4 = Battery 26 Ah, 2 pcs
5 = Subframe
