Chapter 4 _______________________________________________________________ Installation
VAISALA _______________________________________________________________________ 57
2. Install the winch toward the pedestal tube so that the tap (number 3
in Figure 20 below) on the tube goes to the hole (2) on the winch.
Make sure that the plastic cover on the winch faces up.
1101-029

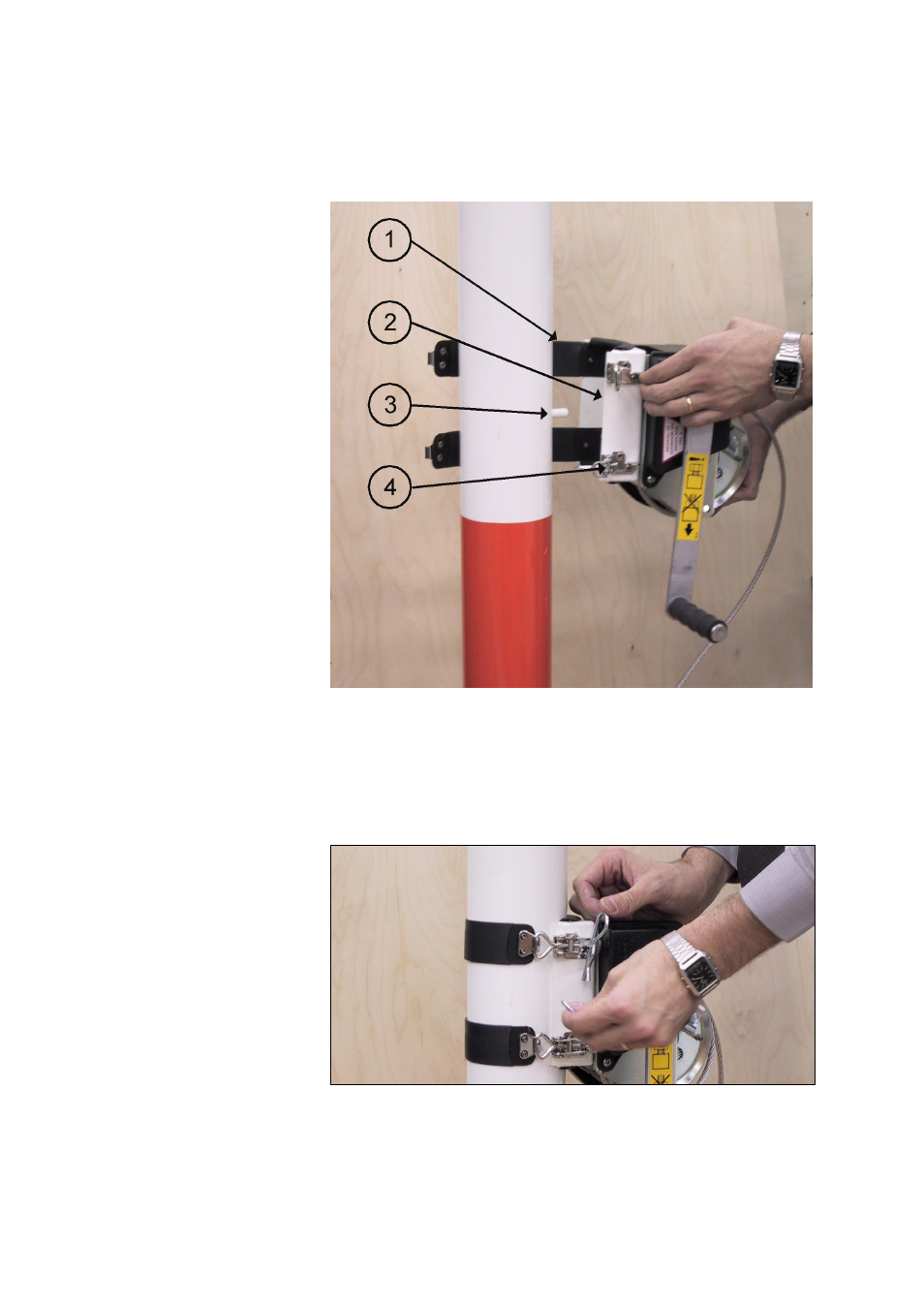

Figure 20 Winch Installation
3. Wrap the clamps (1) around the tube to the clamp assemblies (4)
and attach them.
4. Finally, secure the clamps with the provided pin clips as shown in
Figure 21 below.
0303-042
Figure 21 Securing Winch Clamp
