Mounting with DIN Rail Installation Kit
DIN rail installation kit includes a wall mounting kit, 2 clip-fasteners and
2 screws M4 x 10 DIN 7985 (Vaisala order code 215094).
1.
Attach two spring holders to the plastic mounting plate by using the
screws provided in the installation kit.
2.
Fasten DMT340 to the plastic mounting plate with 4 screws
(provided).
3.
Press the transmitter onto the DIN rail so that the clip-fasteners
snap into the rail.
0503-002

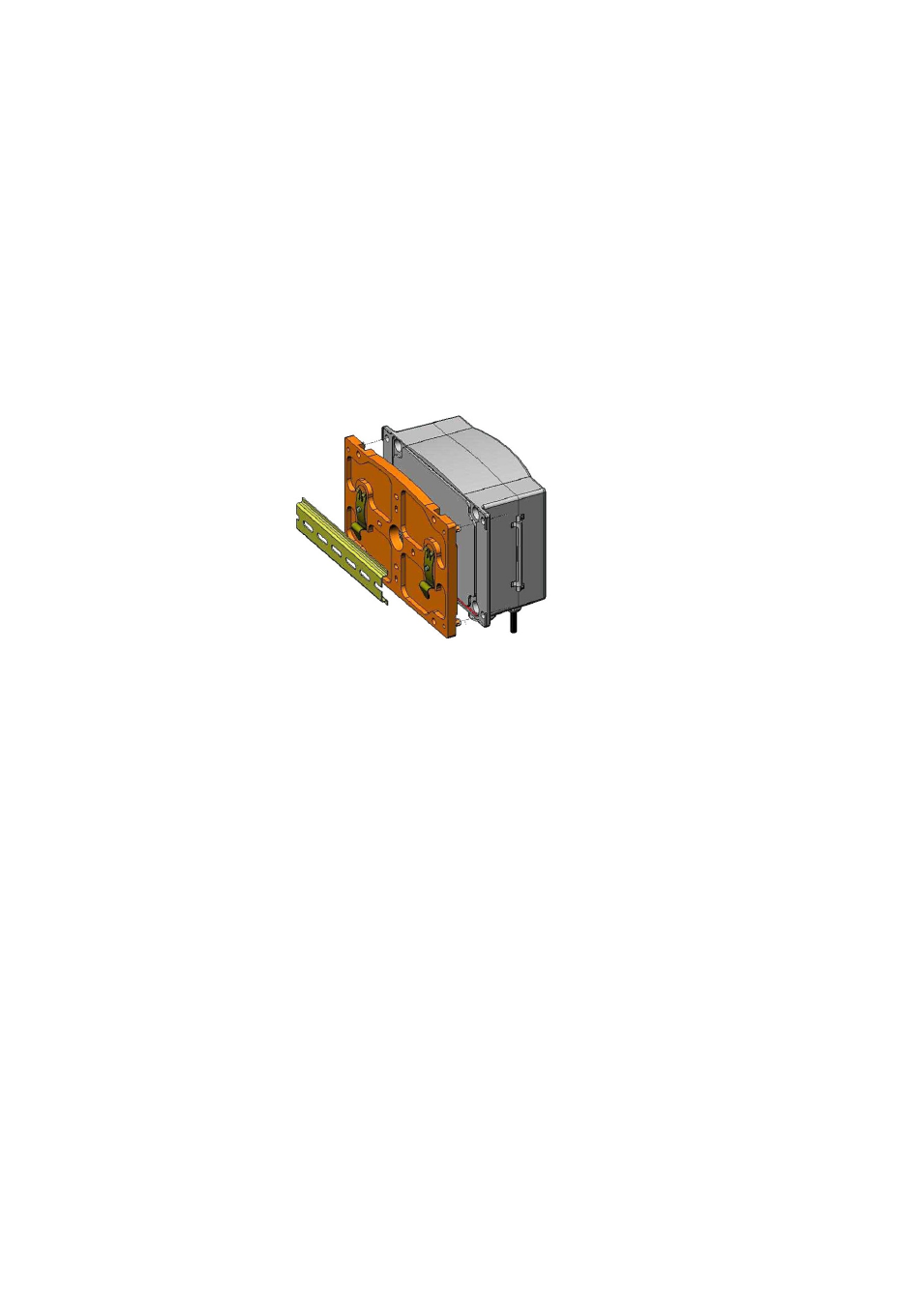

Figure 9
Mounting with DIN Rail Installation Kit
