Figure 7, Mounting with metal wall mounting plate, Figure 8 – Vaisala DMT340 User Manual
Page 27: Dimensions of metal mounting plate (mm/inch)
Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 25
0503-041

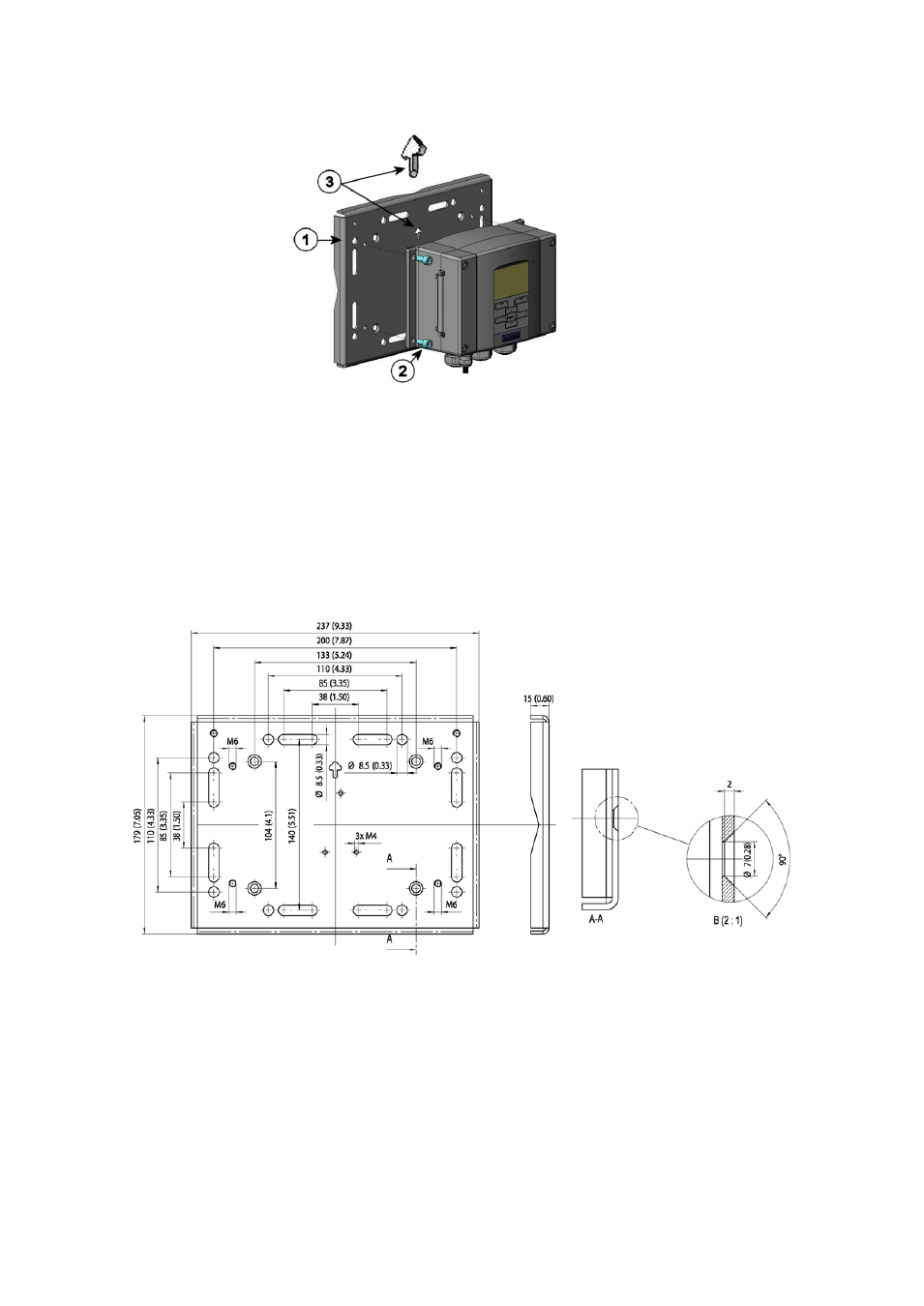

Figure 7
Mounting with Metal Wall Mounting Plate
The numbers refer to Figure 7 above:
1
=
Mount the plate to wall with 4 screws M8 (not provided)
2
=
Fasten DMT340 to the mounting plate with 4 fixing screws
M6 (provided)
3
=
Note the position of the arrow when mounting. This side must
be up when mounting.
0509-151
Figure 8
Dimensions of Metal Mounting Plate (mm/inch)
