2.8 Connecting Peripherals

You can connect external peripherals to the Mobile Computer for added

functionality.

External audio

Connect the supplied stereo headset to the Headset/MIC jack found at the

left side of the Mobile Computer. You may also connect external speakers or

a microphone.

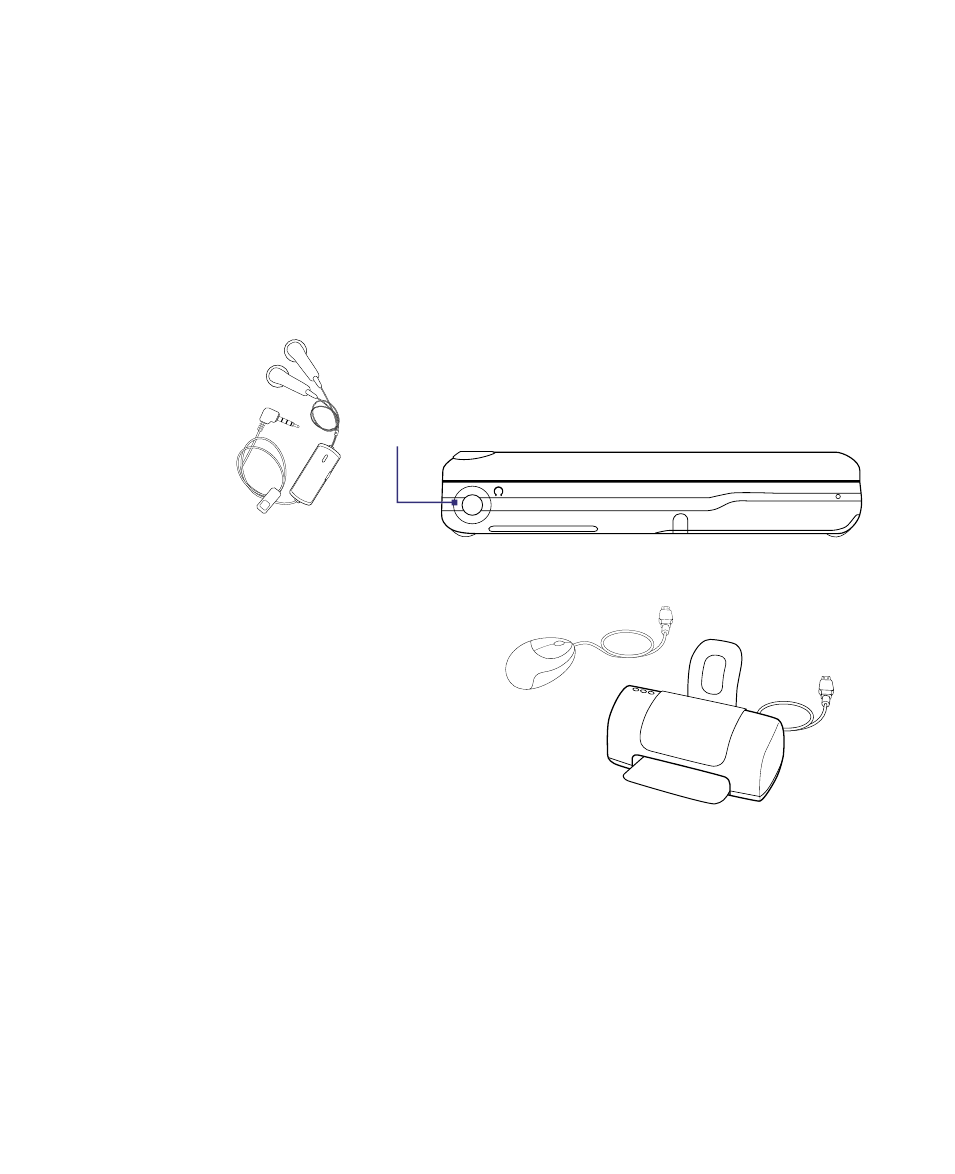

Connect to

Headset/MIC jack

Stereo headset

(supplied)

USB device

You can expand the functionality

of your Mobile Computer by

connecting USB devices to the

USB port. You can connect a USB

thumb drive, external hard disk,

printer, mouse, keyboard, or any

USB device.

External monitor

You can connect an external monitor to use a larger screen if you are using

the Mobile Computer for an extended period of time. You can also set up

dual display with the external monitor.

1.

Connect the monitor cable’s D-SUB cable connector to the VGA port

at the back side of the Mobile Computer.
