Port Mirroring

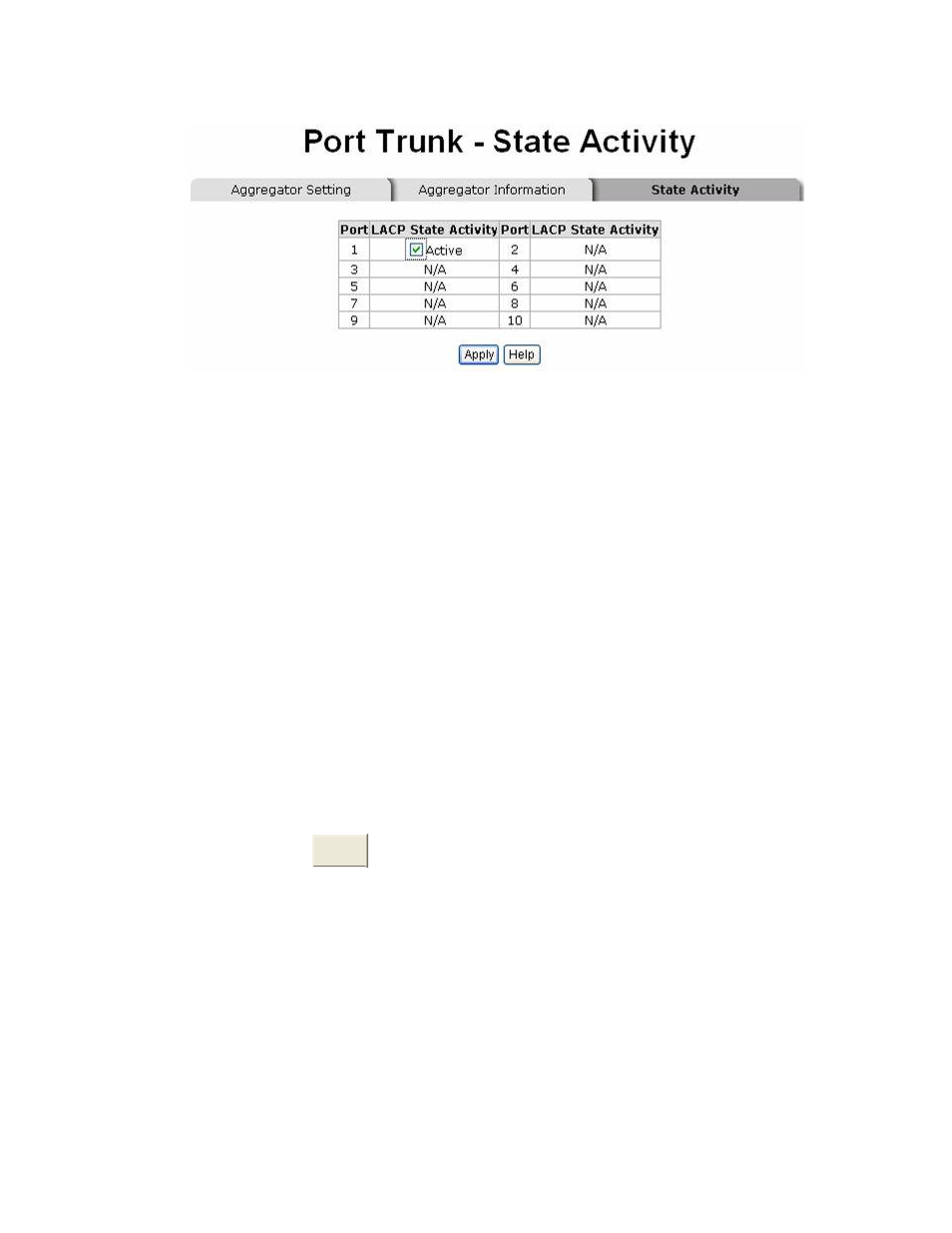

Port Trunk – State Activity interface
The Port mirroring is a method for monitor traffic in switched networks. Traffic through
ports can be monitored via one specific port. That means traffic goes in or out monitored
(source) ports will be duplicated into mirror (destination) port.
¢ Destination Port: You can select one port to be the destination (mirror) port
for monitoring both RX and TX traffic which come from source port. Or, use one of two
ports for monitoring RX traffic only and the other one for TX traffic only. User can
connect mirror port to LAN analyzer or Netxray
¢ Source Port: The ports that user wants to monitor. All monitored port traffic will be
copied to mirror (destination) port. User can select multiple source ports by checking
the RX or TX check boxes to be monitored.
¢ And then, click Apply button.
