Front Panel
The front panel of the 8 10/100TX + 2 Gigabit copper/Mini-GBIC Combo with 8 PoE
Injectors Managed Switch consists of 8 x 10/100Base-TX RJ-45 Ethernet ports (Auto
MDI/MDIX), 2 Giga port and 2 Mini-GBIC ports. The LED Indicators are also located on
the front panel of the switch.

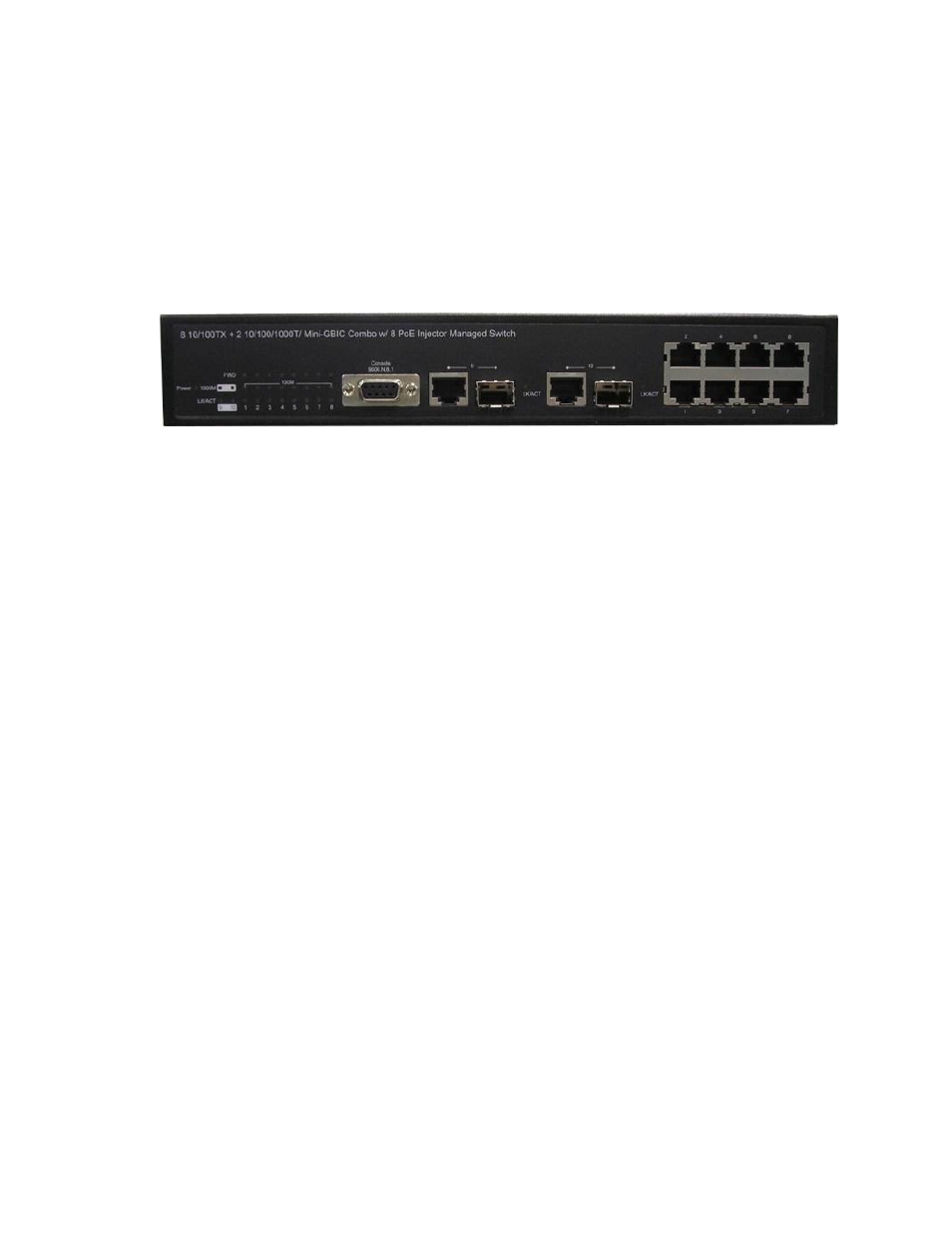

The Front panel of the 8 10/100TX + 2 Gigabit copper/Mini-GBIC Combo with 8 PoE Injectors Managed
Switch
- RJ-45 Ports: 8 x 10/100 N-way auto-sensing for 10Base-T or 100Base-TX
connections. Moreover, these ports also supply power for PDs.
In general, MDI means connecting to another Hub or Switch while
MDIX means connecting to a workstation or PC. Therefore, Auto
MDI/MDIX would allow connecting to another switch or workstation without
changing non-crossover or crossover cabling.
- 2 Gigabit Ethernet port: 2 x 10/100/1000TX N-Way auto-sensing for 10/100/1000
connection.
- 2 Mini-GBIC port: 2 mini-GBIC ports for Gigabit or 100M fiber connection.
