American Fibertek SM10p-PoE - Manual (Page 54)

¢ Key in “http://” + “IP Address” of the Switch, and then press “Enter”
¢ Login screen will appear right after
¢ Key in the user name and password. The default user name and password is “root”
¢ Click “Enter” or” OK”, then the home screen of the Web-based management
appears right after
Note: The web interface features shown below are introduced by the screen
displays of 8 10/100 TX + 2 10/100/1000T/Mini-GBIC Combo (SM10P-POE)
model. Unless specifically identified, the all of the screen displays are suitable for
the models in this manual.

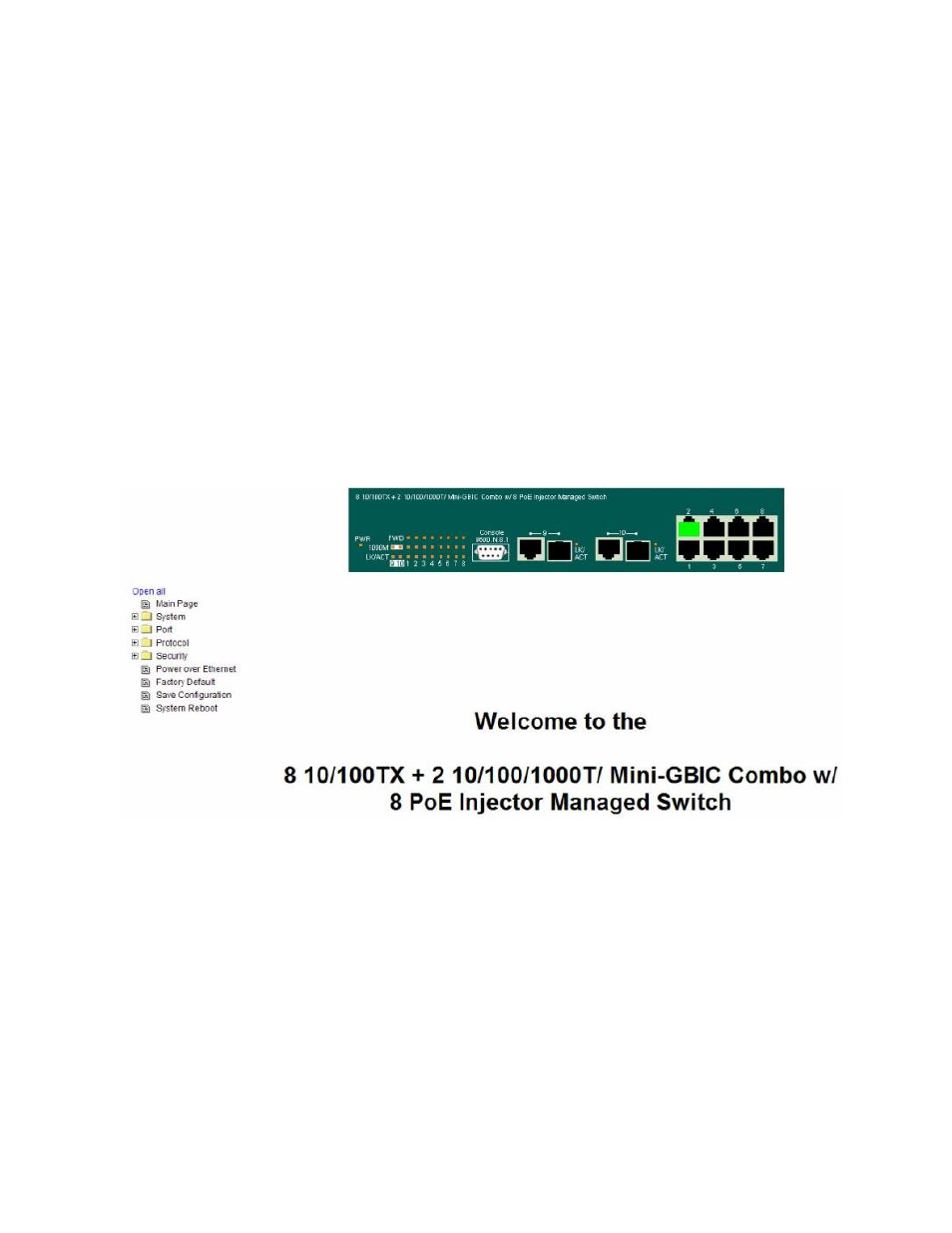

Main interface
System Information
Assign the system name and location and view the system information
¢ System Name: Assign the system name of the switch (The maximum length is 64
bytes)
47
