Rear Panel
The 3-pronged power plug and terminal block are located on the rear panel of the 8
10/100TX + 2 Gigabit copper/Mini-GBIC Combo with 8 PoE Injectors Managed Switch as shown below.
The switch will work with AC in the voltage range of AC 100-240V with
Frequency
of 50-60Hz, or work with DC 48V which is the redundant power supply for the switch.

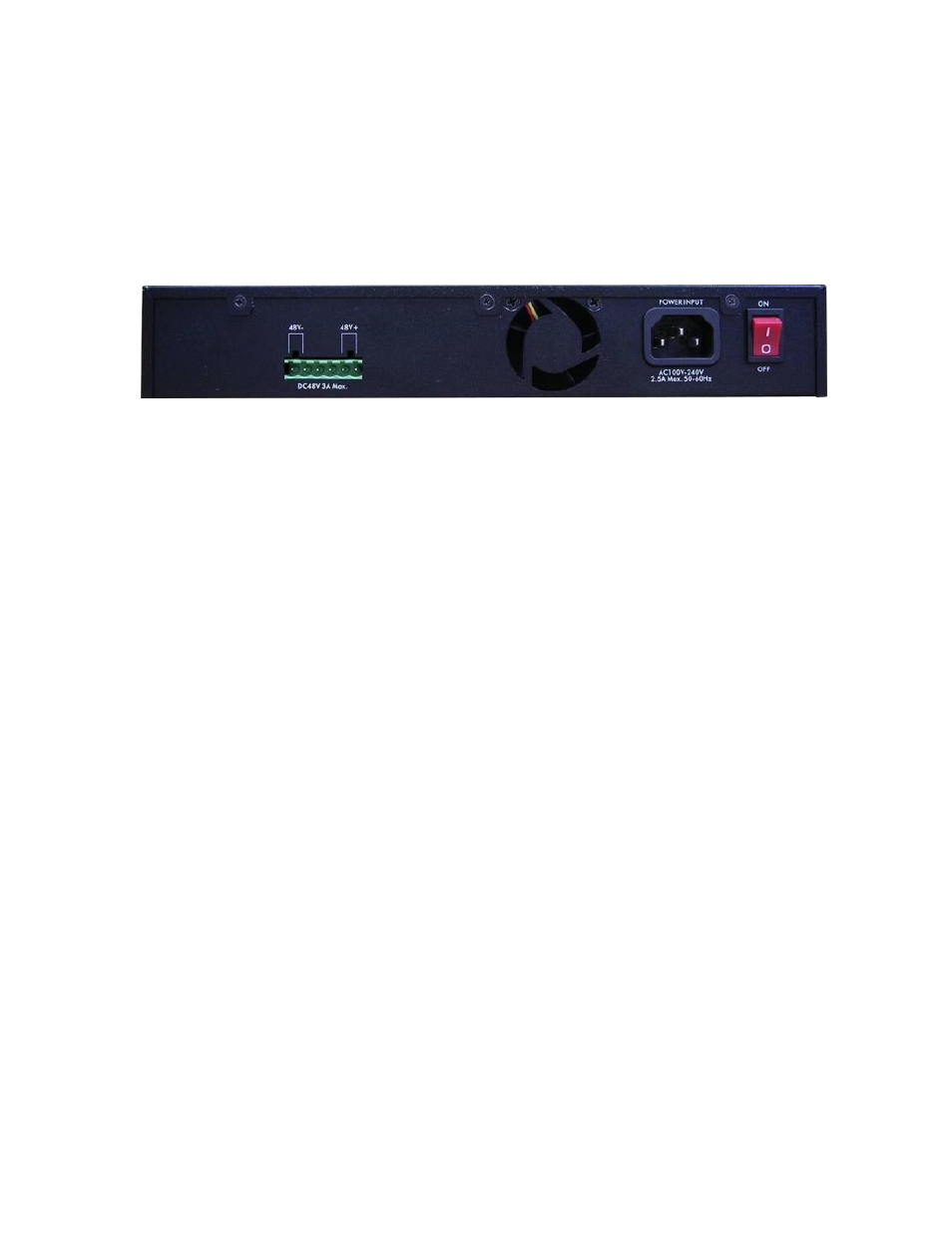

The Rear Panel
of the 8 10/100TX + 2 Gigabit copper/ MINI GBIC Combo with 8 PoE Injector Managed Switch
12
