User Interface

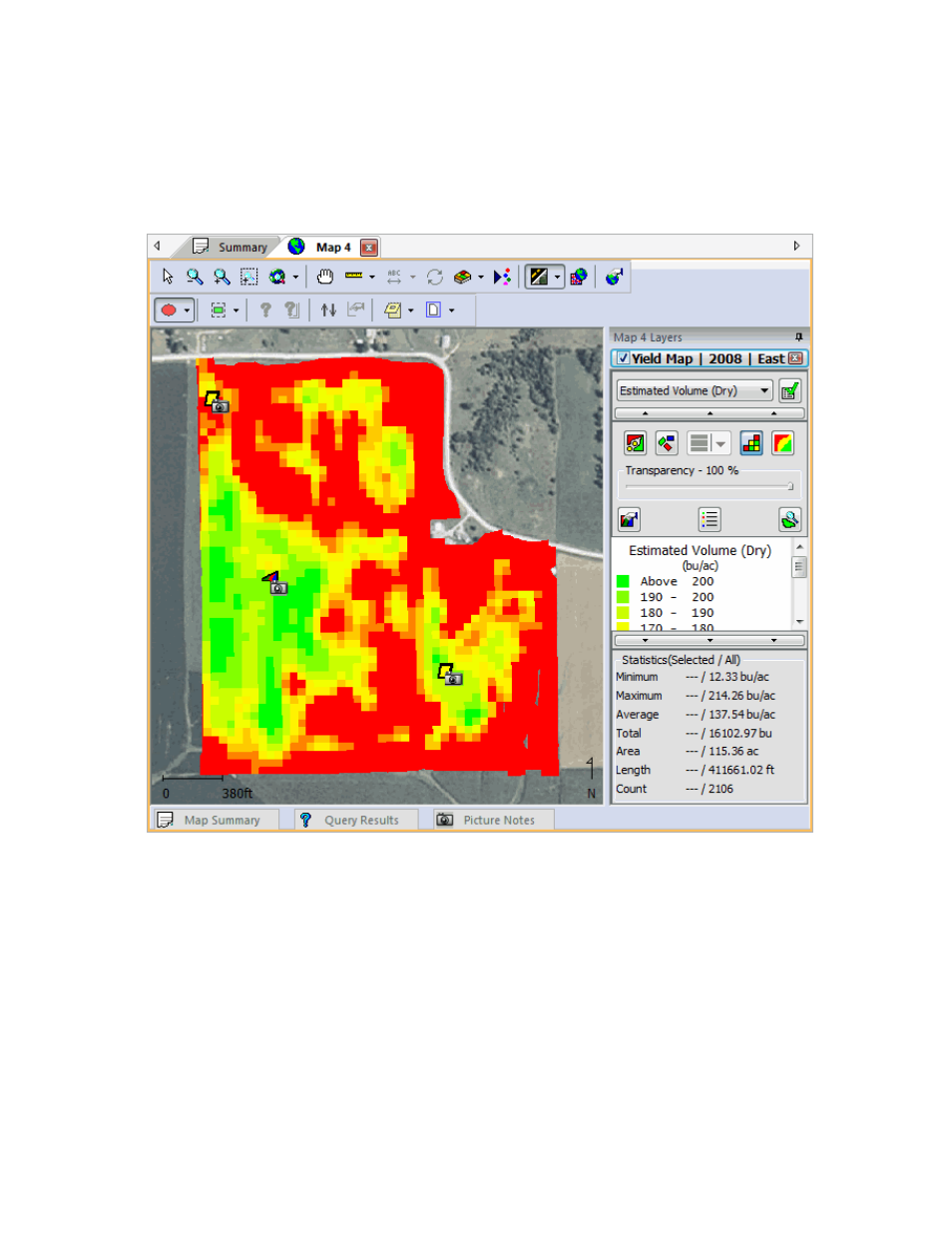

Map Properties Tabs
Properties for the map are displayed at the bottom of each map as buttons/tabs which open views of additional
information related to the current map. To open the views, move your mouse over the button/tab and it will
automatically expand as long as you keep the cursor over its displayed area, and then hide again when move you
move off the area. You can also click the pin icon in the right corner of the window to make it have a fixed location and
not auto hide.
Map Summary, Query Results, Elevation Profile, and Picture Notes views are available currently for viewing.
Select one of the topics below for more information:
Map Summary View
Query Results View
Picture Notes View
Elevation Profile View
3D Plot Window (ADVANCED)
The 3D Plot document window displays a 3D plot of a selected dataset from the Management Tree. It provides various
tools and settings for manipulating and displaying the 3D Plot. The 3D Plot can also be printed.
39
