HP Scanjet Enterprise 8500 fn1 Document Capture-Workstation User Manual
Page 72
4.

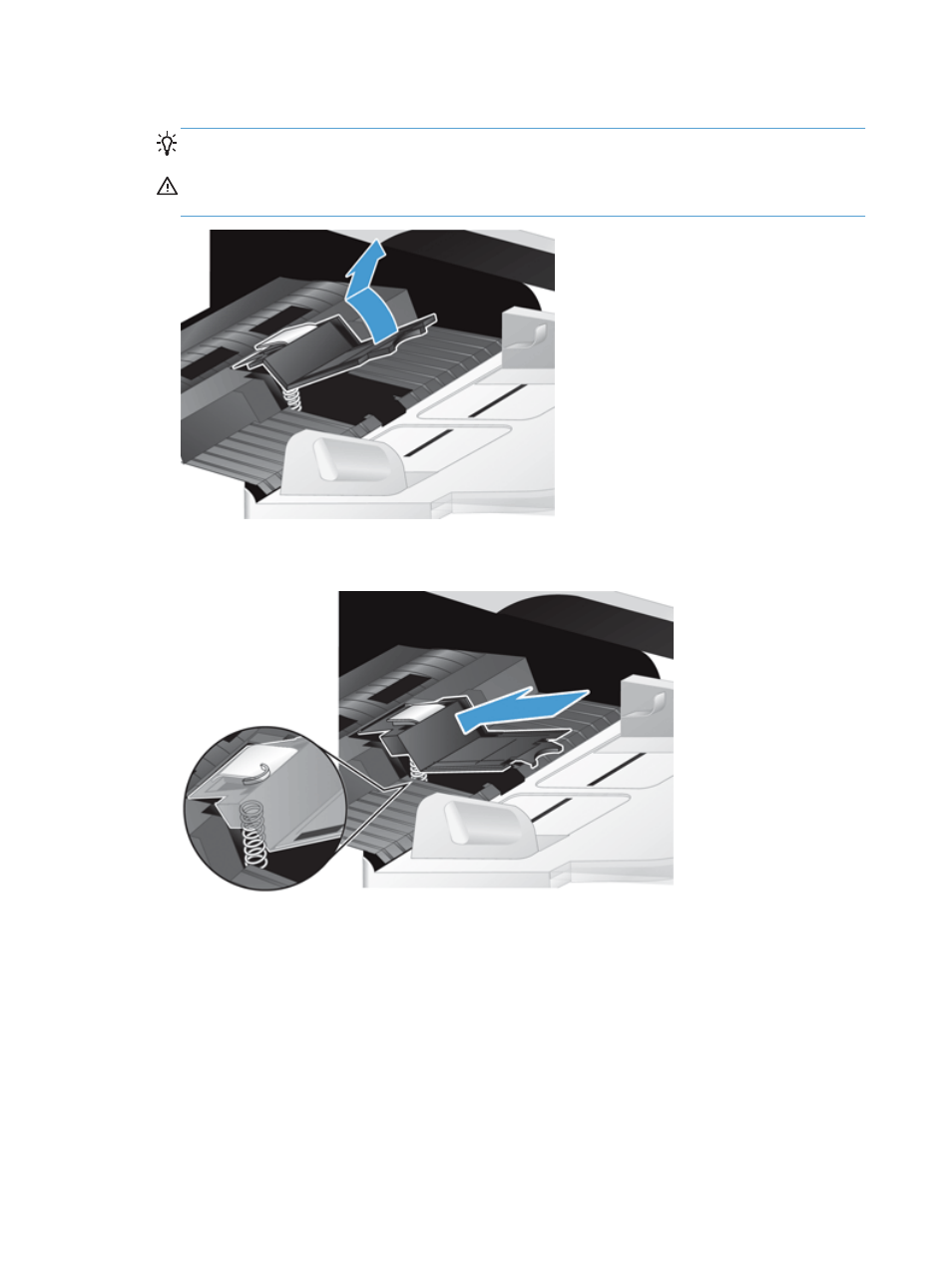

Lift up on the separation pad component, release it from its housing, and set it aside.
TIP:
This is easier to do if you lower the input tray.
CAUTION:
Do not touch the pad itself with bare fingers, as oils from your fingers could impact
performance.
5.
Slide the rear edge of the new separation pad component into its housing, ensuring that the spring
below the pad is not bent down.
64
Chapter 8 Replace and install components
