Chapter 4 Configuration
91
When the initialization has completed, the display returns to the Online Expansion
Method.
13. Make another selection or press Cancel to exit to the Manual
Configuration dialog box.
14. Reboot the host system (Windows NT) to recognize the logical drive’s
new size.
Add Logical Drive
Use this procedure to create new logical drives when adding new physical drives
to an existing array. The strip size and cache line sizes for the new logical drives
will be identical to your existing logical drive for this array.
To configure the Logical Drives from Expand Array, refer to the following
procedure.
1. Select a RAID level from the drop-down list for the first logical drive. See
Figure 4-57.
Supported RAID levels are RAID 0, RAID 1, RAID 3, RAID 5,
RAID 0+1, and stand-alone drive (JBOD).
Only RAID levels compatible with the current configuration will be
available in the list.

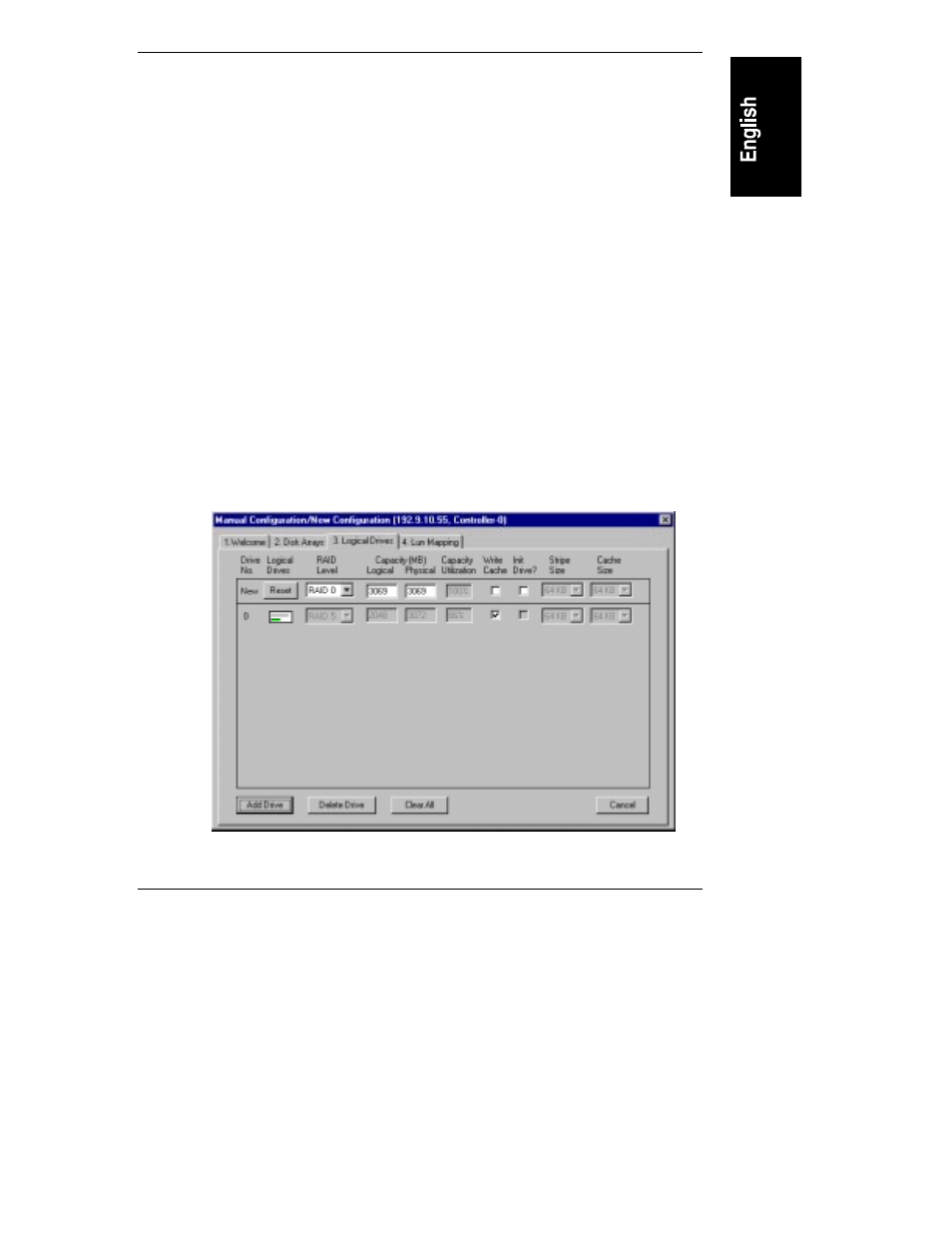

Figure 4-57. Manual Configuration - Logical Drives
