Chapter 5 Monitoring
108
Displaying Logical Drive Information
The icons on the right side of the Controller View window represent the logical
drives (also known as logical units or system drives) created by the controller out
of the available physical drives. To display information about a particular logical
drive, do the following:
•
Double-click a logical drive icon in the Controller View window. See
Figure 5-5.
The Logical Drive Information window appears (see Figure 5-13).

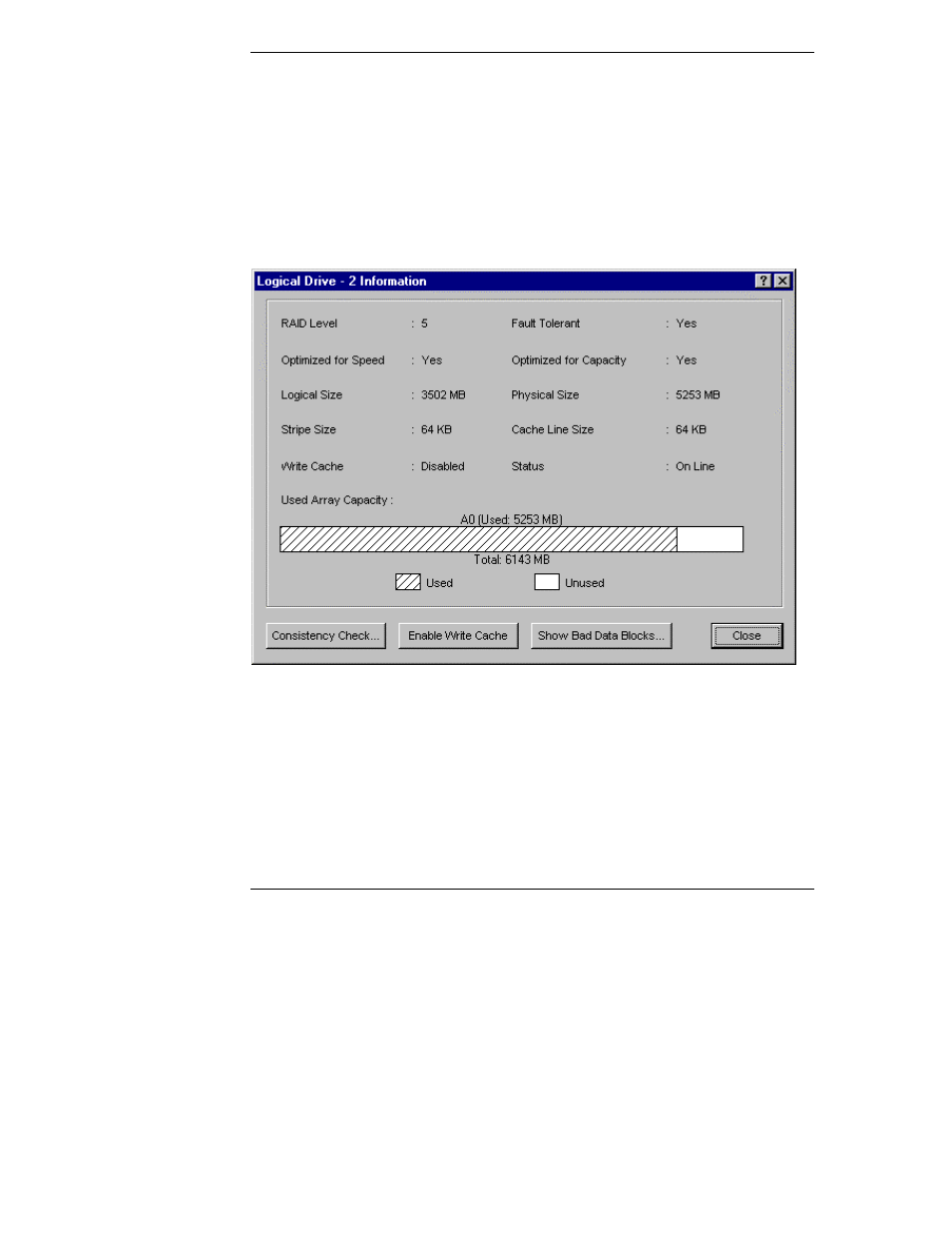

Figure 5-13. Logical Drive Information for a RAID Controller
Logical Drive Information provides the following information about the currently
selected logical drive.
•
Indicates the logical drive number (in the window’s title bar).
•
Indicates the RAID level of the logical drive’s configuration.
•
Indicates, by Yes/No, if the logical drive’s configuration is optimized for
speed, capacity, and is fault tolerant.
