Chapter 4 Configuration
77

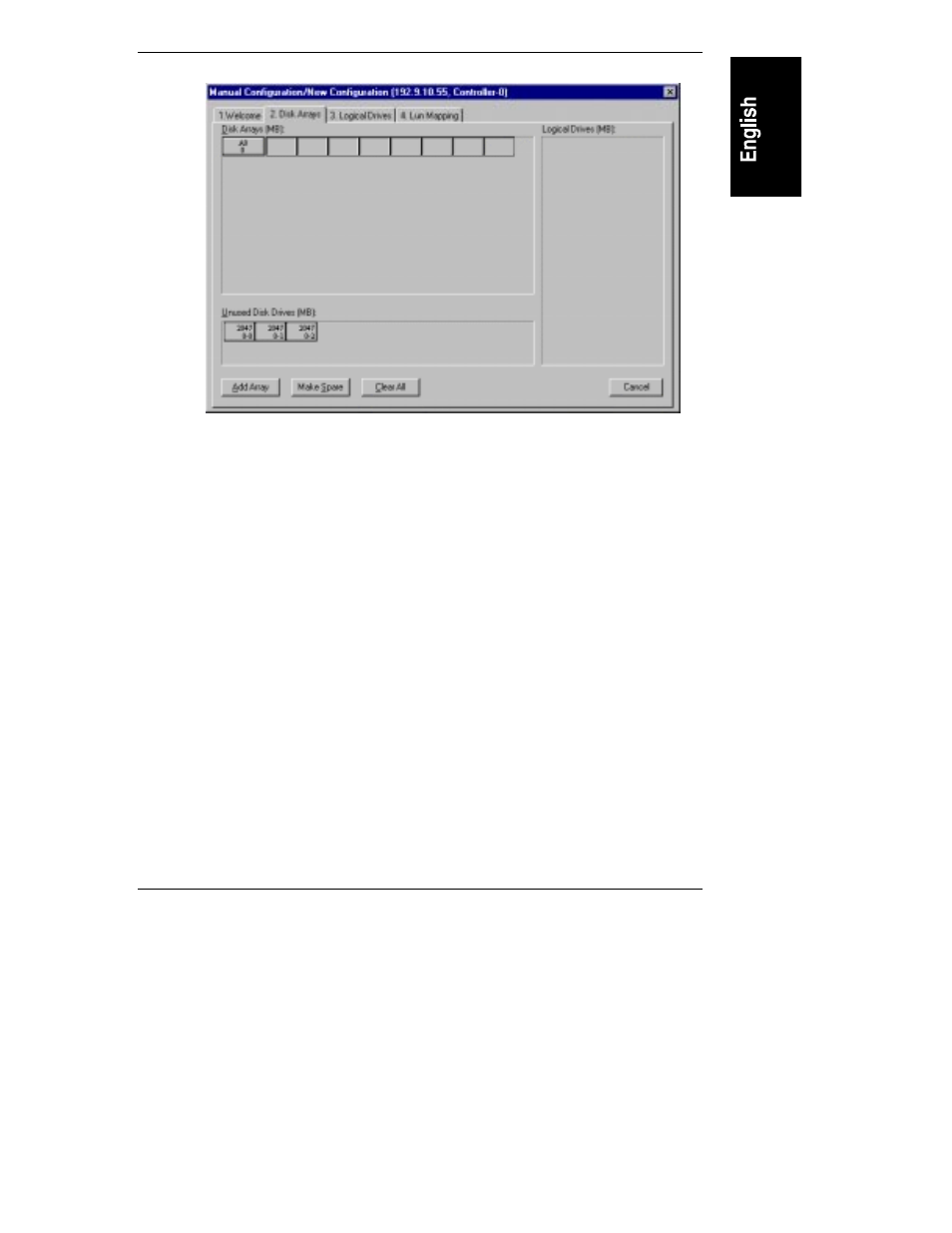

Figure 4-41. Manual Configuration - Disk Arrays
To configure the Disk Array, perform the following steps:
1. Select an unused drive and drag it to the Disk Array A0 section.
The drive will be part of a disk array referred to as "A0."
2. Select the other unused drives and drag each one to Disk Array A0.
a. Or, click the Add Array button to create a row for Disk Array A1 (then
A2, A3, etc.),
b. Drag unused drives to A1, if desired.
3. If you want to manually configure a hot spare, click an unused drive, then
click the Make Spare button.
4. If you want to start over, click the Clear All button and start again.
5. Once you’ve assembled the disk array groups, click the Logical Drives tab
to continue on to logical drive setup. See Figure 4-42.
