Chapter 4 Configuration
81
Controller 1/Port 1. Load balancing is achieved by spreading the configured LUNs
across both these controllers.
PW R PW R
FCArray Controller 1 FCArray Controller 0
Default
Active Port 1 Port 0 Default
Active Port 1 Port 0
Rack Storage/12FC (rear view)

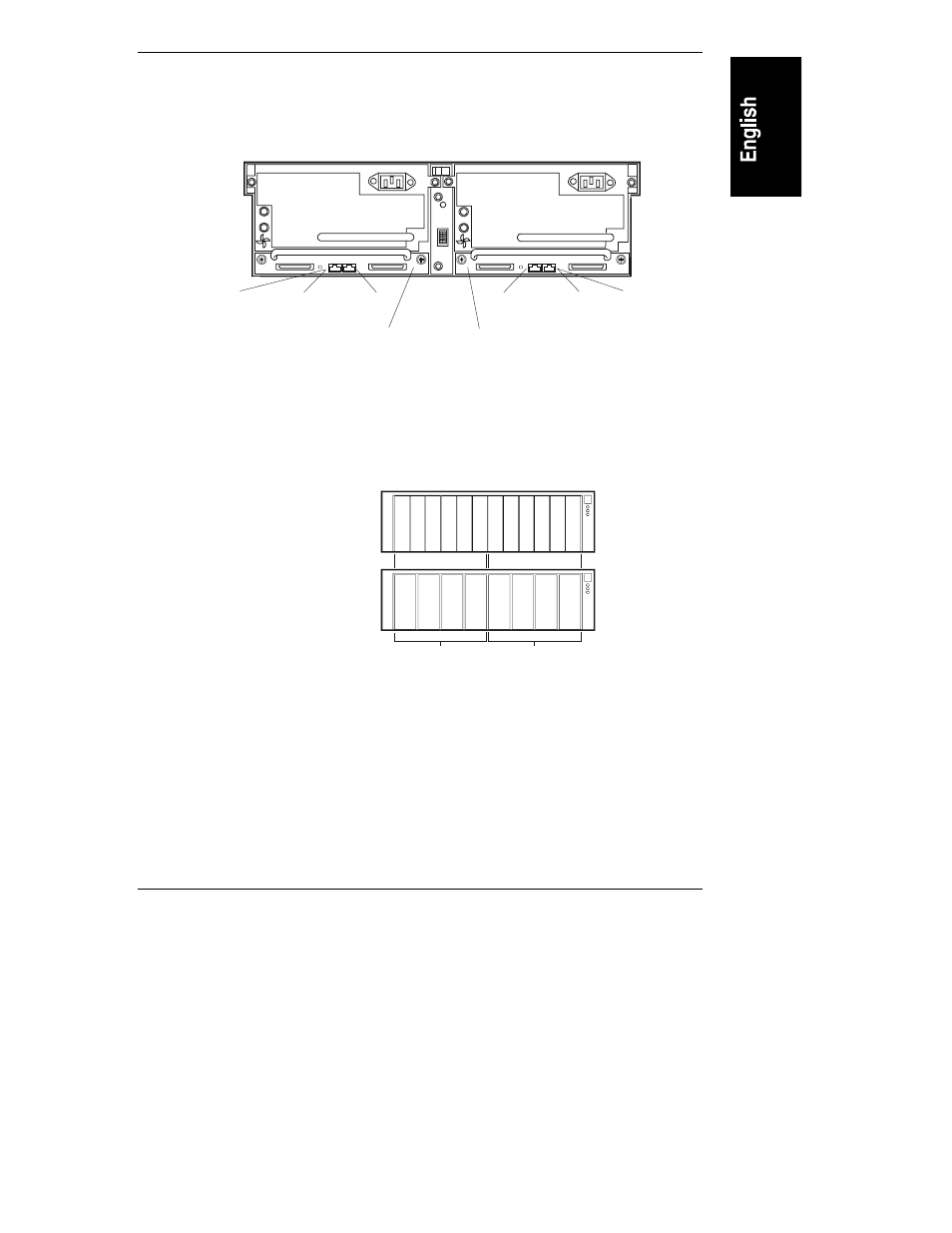

Figure 4-43. FCArray Controller Physical Layout
(Rear View)
Channel 0 Channel 1
1 2 3 8 91011 12131415 0
10 11 13 14 1 0 8 3
Low-Profile
Drives
Half-Height
Drives
Rack Storage/12FC (front view)
Figure 4-44. FCArray Controller Layout/SCSI ID Assignment
(Front View)
LUN Mapping Tab
The FCArray Assistant implements LUN Mapping by allowing the user to map
Logical Unit Numbers (LUNs) to specific controller/port combinations. To
configure the HP Rack Storage/12FC for a Simplex or Dual Active configuration,
refer to the following procedure. See Figures 4-43 through 4-46.
