Chapter 5 Monitoring
102
◊ The number of logical drives configured on this controller and the
maximum number of configurable logical drives
◊ Host Connection Information: OS Controller number, channel and
target number

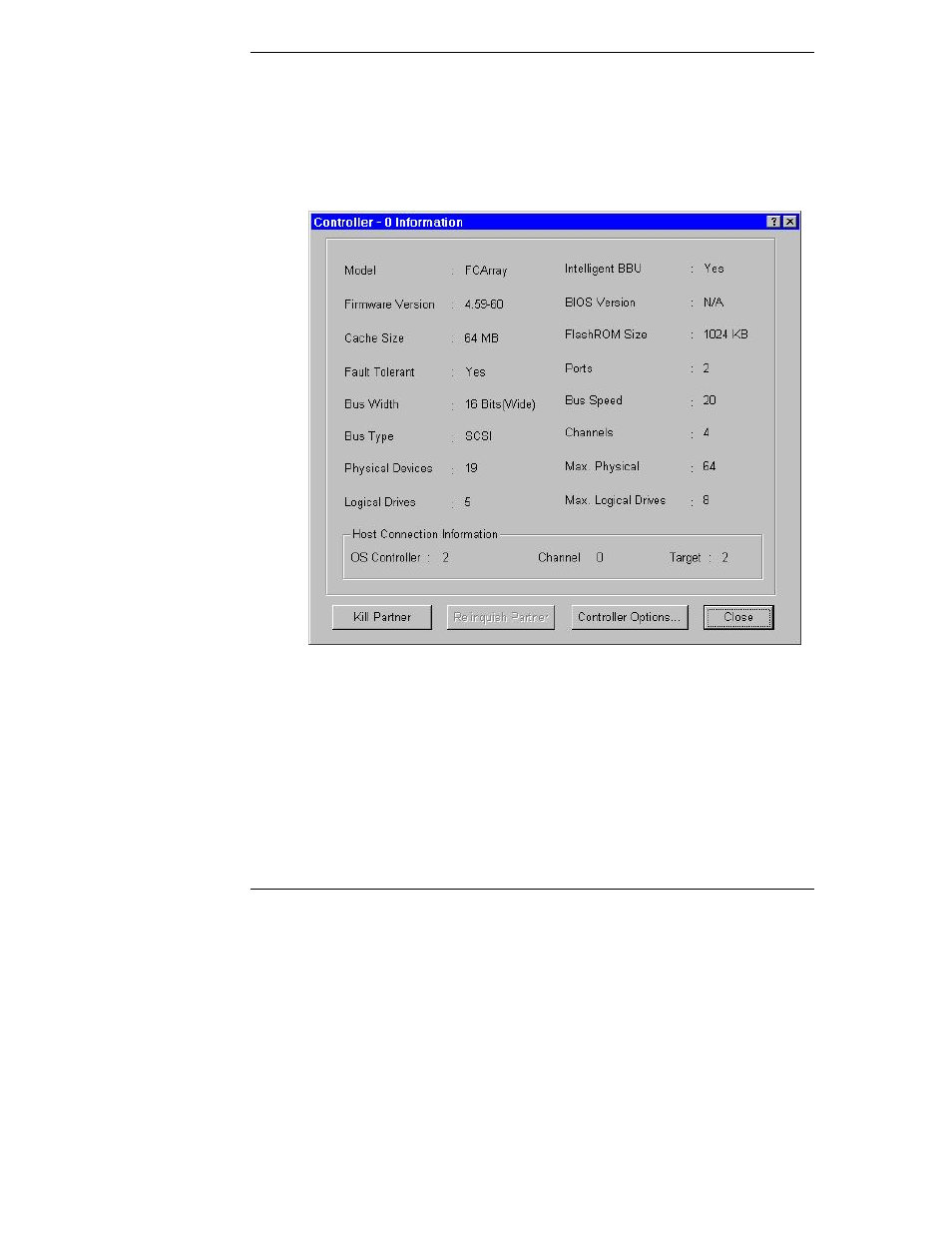

Figure 5-7 shows the Controller Information window.
Figure 5-7. Controller Information Window
1. Click the Controller Options button to view a dialog box of
user-definable Controller parameters.
Refer to Setting and Modifying Controller Options for more information.
2. Click the Kill Partner button to cause this controller’s partner controller to
be placed in reset.
The controller must be in duplex mode and this is also required before
selecting Expand Array.
