Chapter 5 Monitoring
100

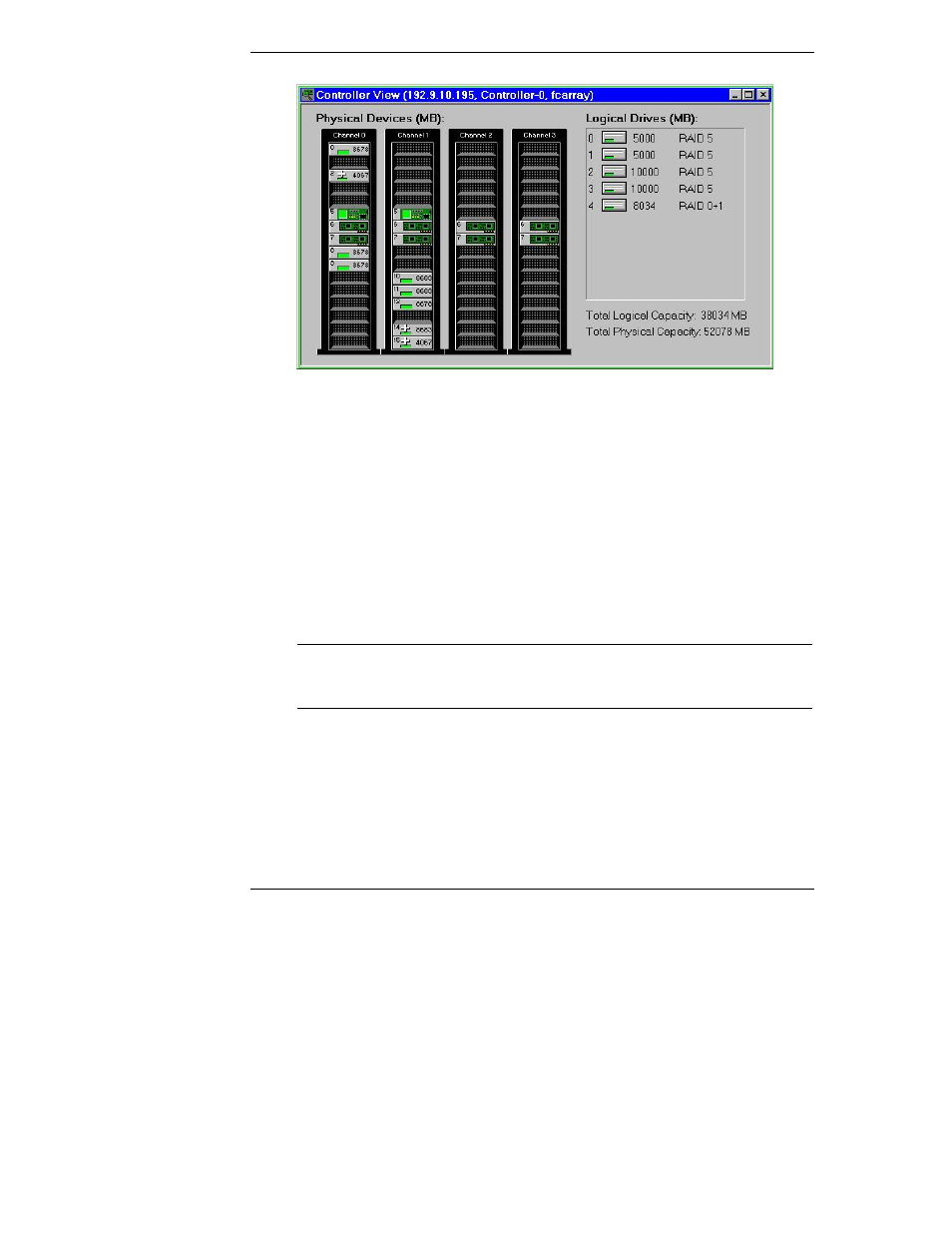

Figure 5-5. Controller View Window
The Controller View window displays the following information about the
controller currently selected in the controller selection box (FCArray Assistant
window) (see Figure 5-5):
Physical Devices (MB)
•
The number of channels on this controller and each channel is depicted as a
tower.
•
The physical devices present on each channel, specifying the target ID
(1 to 15), capacity of the device, device type, and device status. See the
section "Displaying Device Information" later in this chapter.
NOTE If configured, the Dual Active Controllers show at target ID 6
and 7 in each channel column. This only appears if the selected
controller is operating in duplex mode.
Logical Drives (MB )
•
This specifies the logical drive configurations: the logical drive number,
capacity of the logical drive, configured RAID level, and logical drive
status on the controller.
