HP XP P9500 Storage - Manual (Page 31)

•
To add the external volume By New External Path Group:

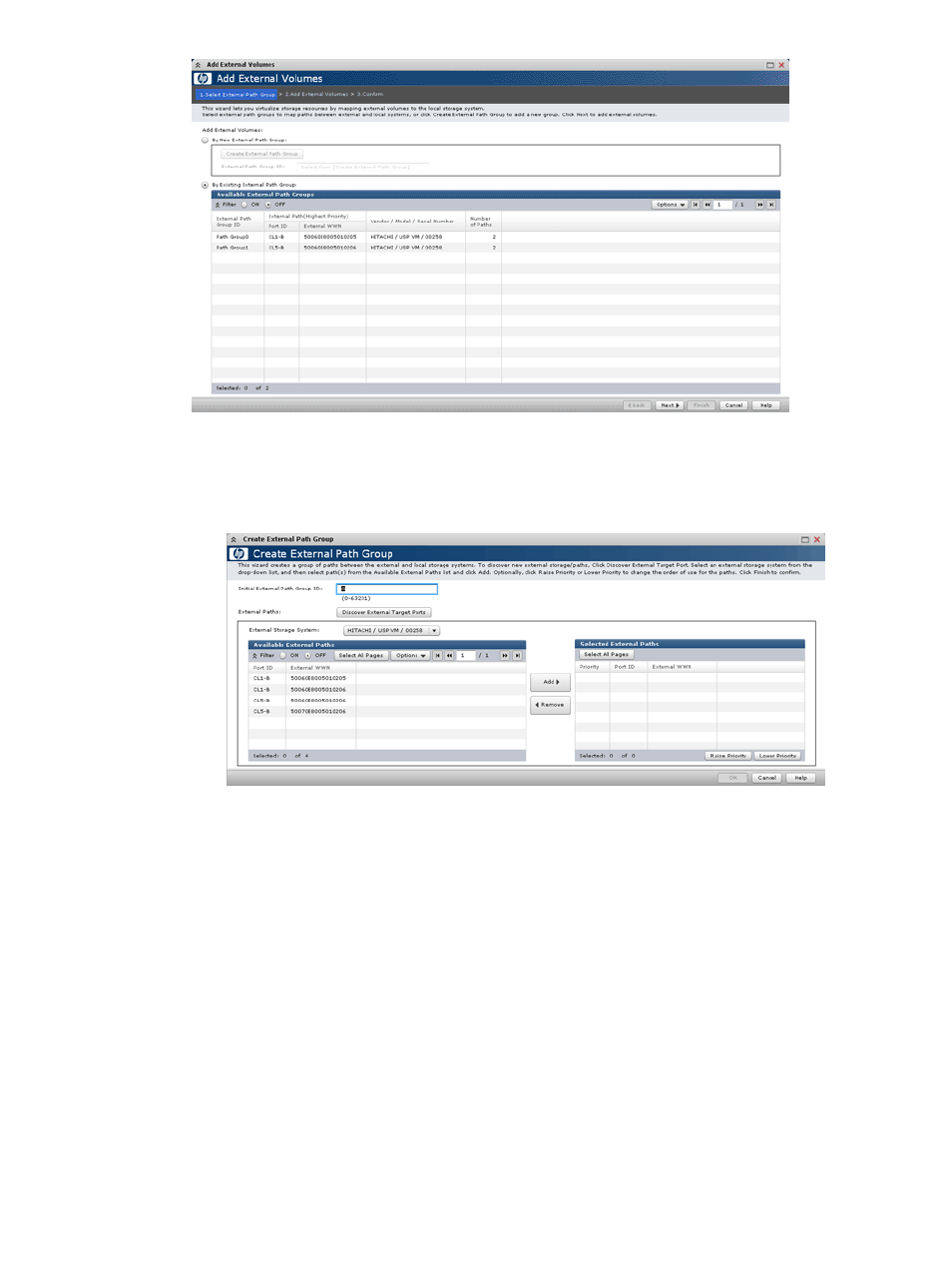

a. Click Create External Path Group.
b. In the Create External Path Group window, enter the following:
— Initial External Path Group ID. The storage system searches IDs from the initial ID you
specify in ascending order and allocates an ID that can be used. The range can be from
0 to 63,231. 0 is the default.
— External Paths. If you do not see the port or WWN you want in the Available External
Path box, click Discover External Target Ports. In the new window, select the desired ports
and click Add, then click OK.
— External Storage System. If the external system is not selected, scroll down the list and
select it.
— Available External Path. Select the desired port IDs and click Add, then click OK.
c. Set the priority for a path by selecting it and clicking Raise Priority or Lower Priority.
d. Click OK.
Mapping an external volume 31
