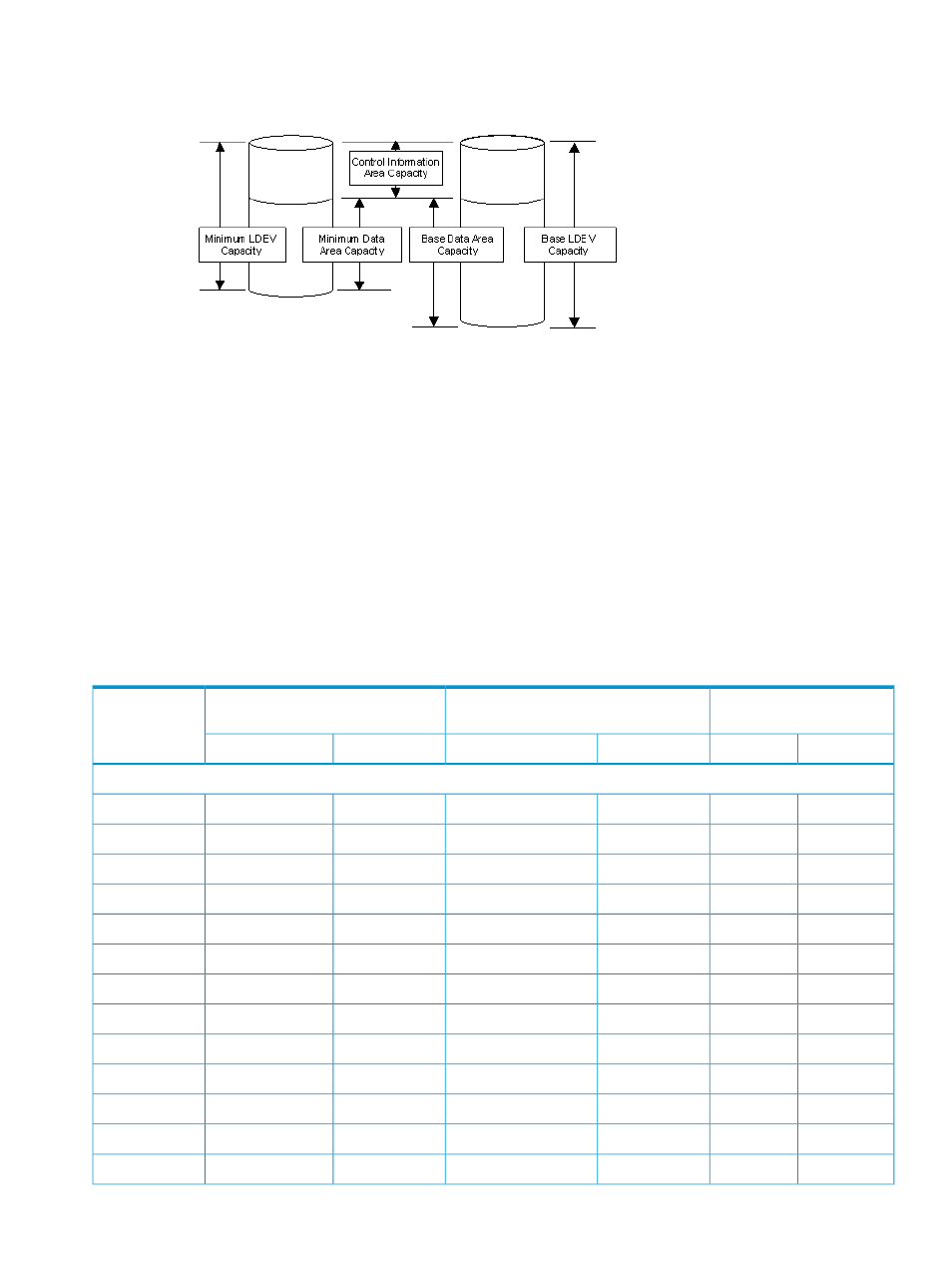

Figure 1 Idea of LDEV capacity
•
An external volume whose capacity is more than the base LDEV capacity for the emulation
type results in multiple LDEVs created when the volume is mapped. These LDEVs will have the
base LDEV capacity.
•
When using VLL, a maximum 2,048 CVs can be created.
(VLL is not supported for the OPEN-L emulation type.)
•
For emulation types other than OPEN-V, usable capacity in the internal volume is the capacity
of the external volume minus control information area capacity.
•
Data above the maximum capacity cannot be accessed.
LDEV capacities per emulation type
The following table shows LDEV capacities for each emulation type in units of blocks and cylinders.
Control Information Area
Capacity Base Data Area Capacity Minimum Data Area Capacity Emulation Type
Cylinders Blocks Cylinders Blocks Cylinders Blocks
Mainframe
7 10,080 3,339 4,808,160 50 72,000 3380-3
7 10,080 3,339 4,808,160 50 72,000 3380-3A
7 10,080 3,339 4,808,160 50 72,000 3380-3B
7 10,080 3,339 4,808,160 50 72,000 3380-3C
6 10,440 3,339 5,809,860 50 87,000 3390-3
6 10,440 3,339 5,809,860 50 87,000 3390-3A
6 10,440 3,339 5,809,860 50 87,000 3390-3B
6 10,440 3,339 5,809,860 50 87,000 3390-3C
6 10,440 3,339 5,809,860 50 87,000 3390-3R
25 43,500 10,017 17,429,580 50 87,000 3390-9
25 43,500 10,017 17,429,580 50 87,000 3390-9A
25 43,500 10,017 17,429,580 50 87,000 3390-9B
25 43,500 10,017 17,429,580 50 87,000 3390-9C
