Networks defined in a hypervisor
VMware: port groups
◦
◦
Hyper-V: virtual switches
◦
Integrity VM: virtual switches connected to a physical NIC
•
Networks defined by the infrastructure orchestration administrator that identify VLANs carried
on a VC tunneled trunk
See
“Setting up virtual machine networks” (page 36)
for additional information.
When two or more hosts have the same network name, only one is shown in the infrastructure
orchestration console Networks tab. Subnets with the same name are collapsed into a single subnet
in IO. In the network details Associations tab, the Cluster/VC Domain Group shows the VCDG
and the cluster or the host (if not in a cluster) where the network is visible.
To view and configure physical and virtual networks, the infrastructure orchestration administrator
must perform the following steps.
1.

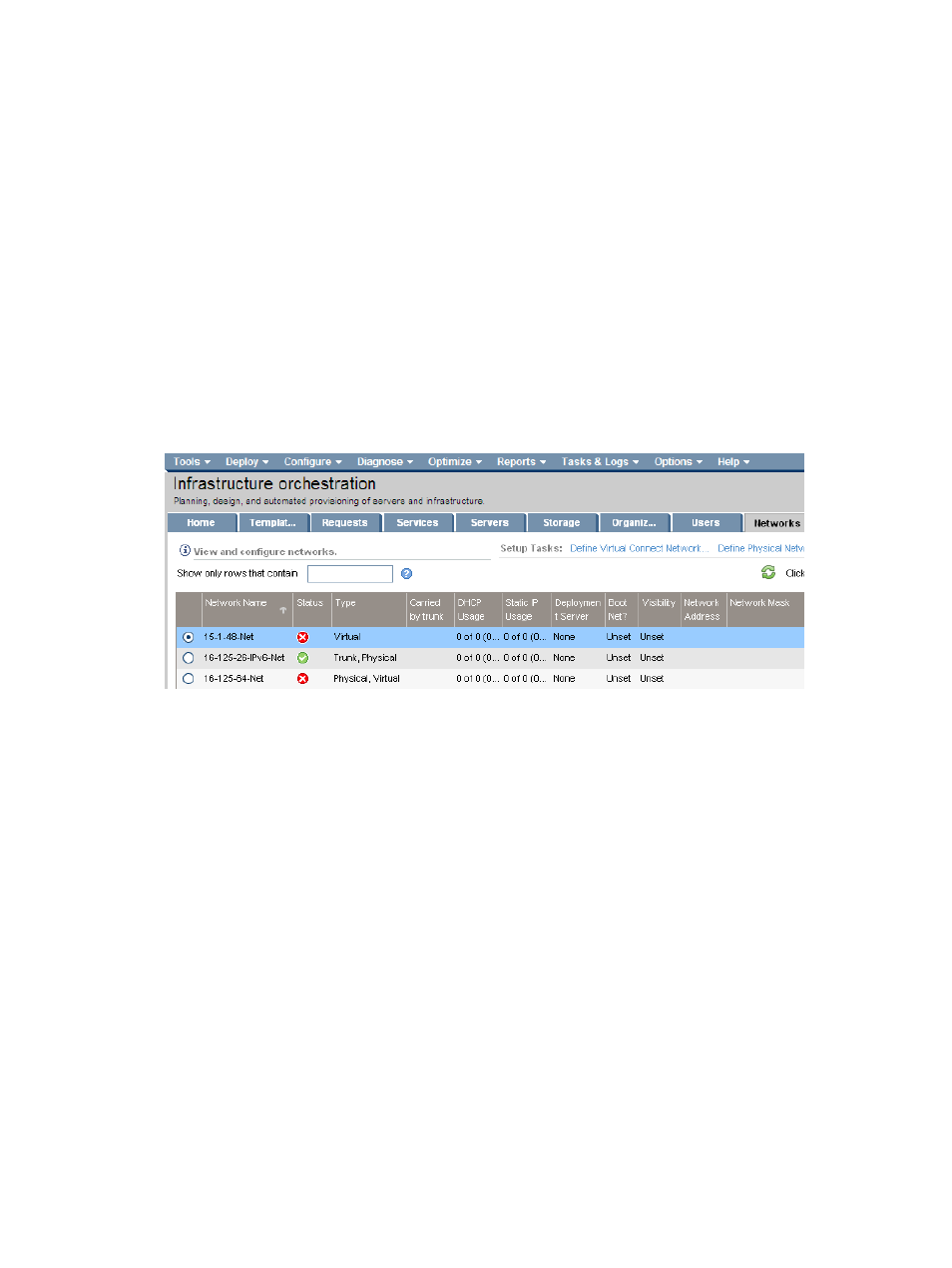

In the infrastructure orchestration console, select the Networks tab.
Matrix OE provides information about configured networks to infrastructure orchestration. For
each network to be used with infrastructure orchestration, add DHCP and/or static address
ranges. If networks do not appear correctly, see
2.
Select a network, and then click View/Edit.
