4
INSTALLATION FOR ENERGY MEASUREMENT
38
OPTISONIC 6300 P
www.krohne.com 03/2013 - 4000972603 - MA OPTISONIC 6300 P R03 en
4.3 Program the converter
Three settings must be programmed in order to measure the amount of energy.
4.3.1 Program the I/O input
• Go to menu nr. 2.4.5 via "Measurement Setup I/O"
If the recommended KROHNE energy set is used, the standard settings are correct. The
temperature range is 4 mA = 0°C / 32°F and 20 mA = 120°C / 248°F:

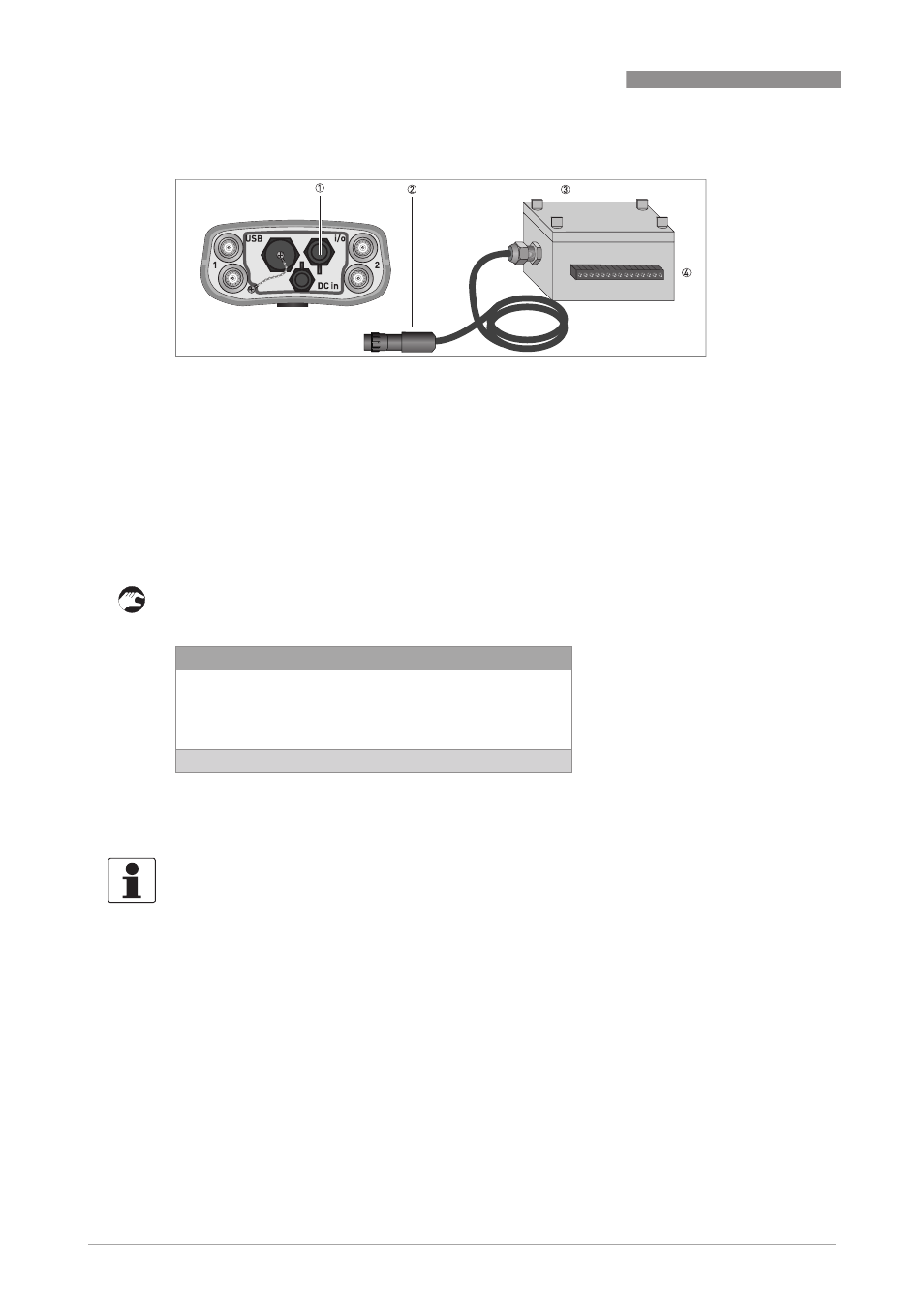

Figure 4-5: I/O box
1 I/O connector on converter
2 Connector of I/O box
3 I/O box with screw terminals for 1 mm
2 wiring
4 Screw terminal pin 1...15
2.4.5
Current output
Current inputs Current inputs Current inputs Current inputs
Status output / limit switch
Frequency / pulse output
Simulation
13-04-2010 14:11:09 13 MB free
INFORMATION!
On the converter, you must scroll down in the menu to see all settings.
