PCS-1000 User Manual
28

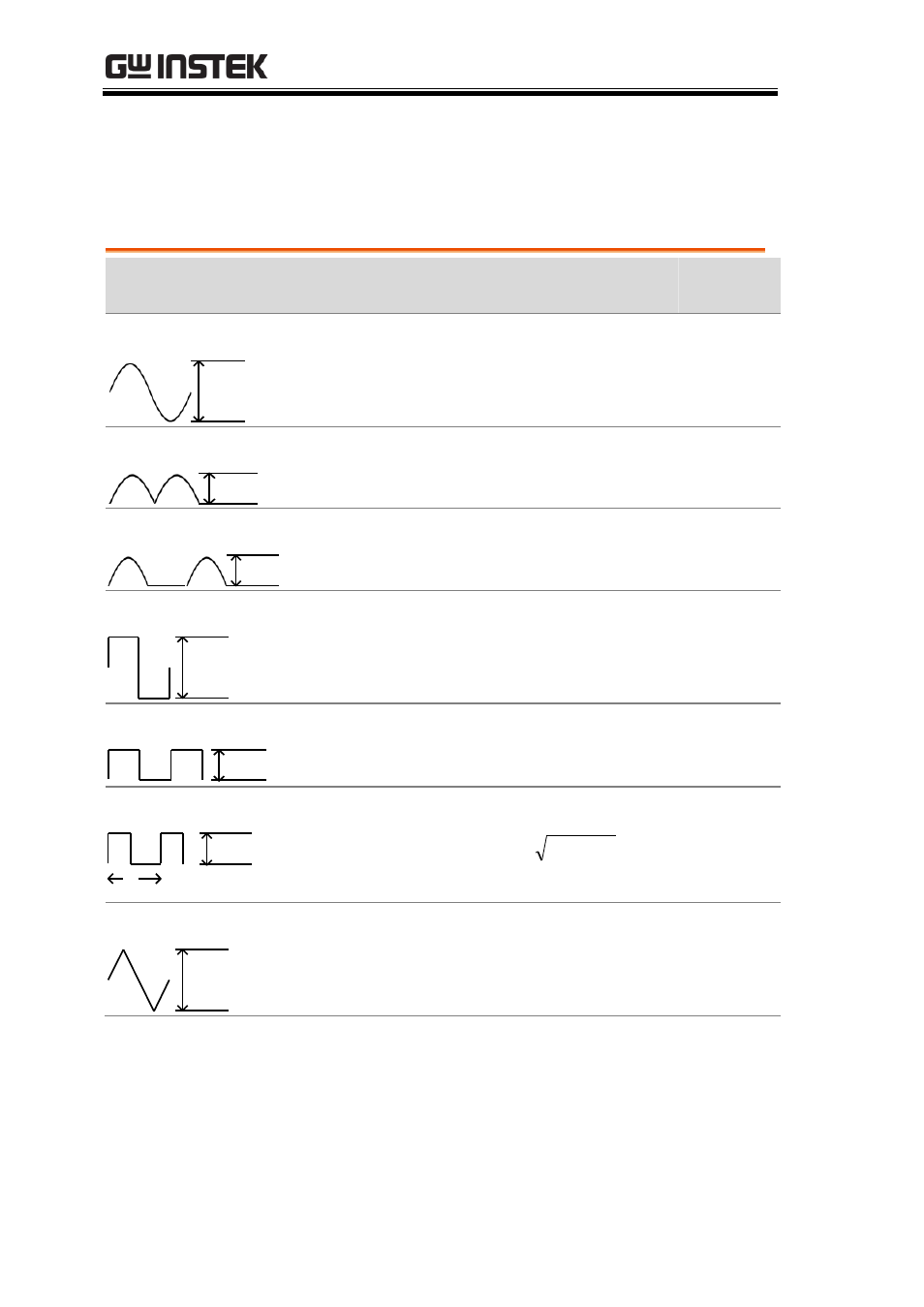

Voltage Range Conversion Table
This table shows the relationship between AC and DC readings in
various waveforms.
Waveform Peak to Peak AC (True RMS) DC
Sine
PK-PK
2.828 1.000 0.000
Rectified Sine (full wave)
PK-PK
1.414 0.435 0.900
Rectified Sine (half wave)
PK-PK
2.000 0.771 0.636
Square
PK-PK
2.000 1.000 0.000
Rectified Square
PK-PK
1.414 0.707 0.707
Rectangular Pulse
PK-PK X
Y
2.000 2K
K=
) 2 ( D D

D=X/Y
2D
D=X/Y
Triangle Sawtooth
PK-PK
3.464 1.000 0.000
