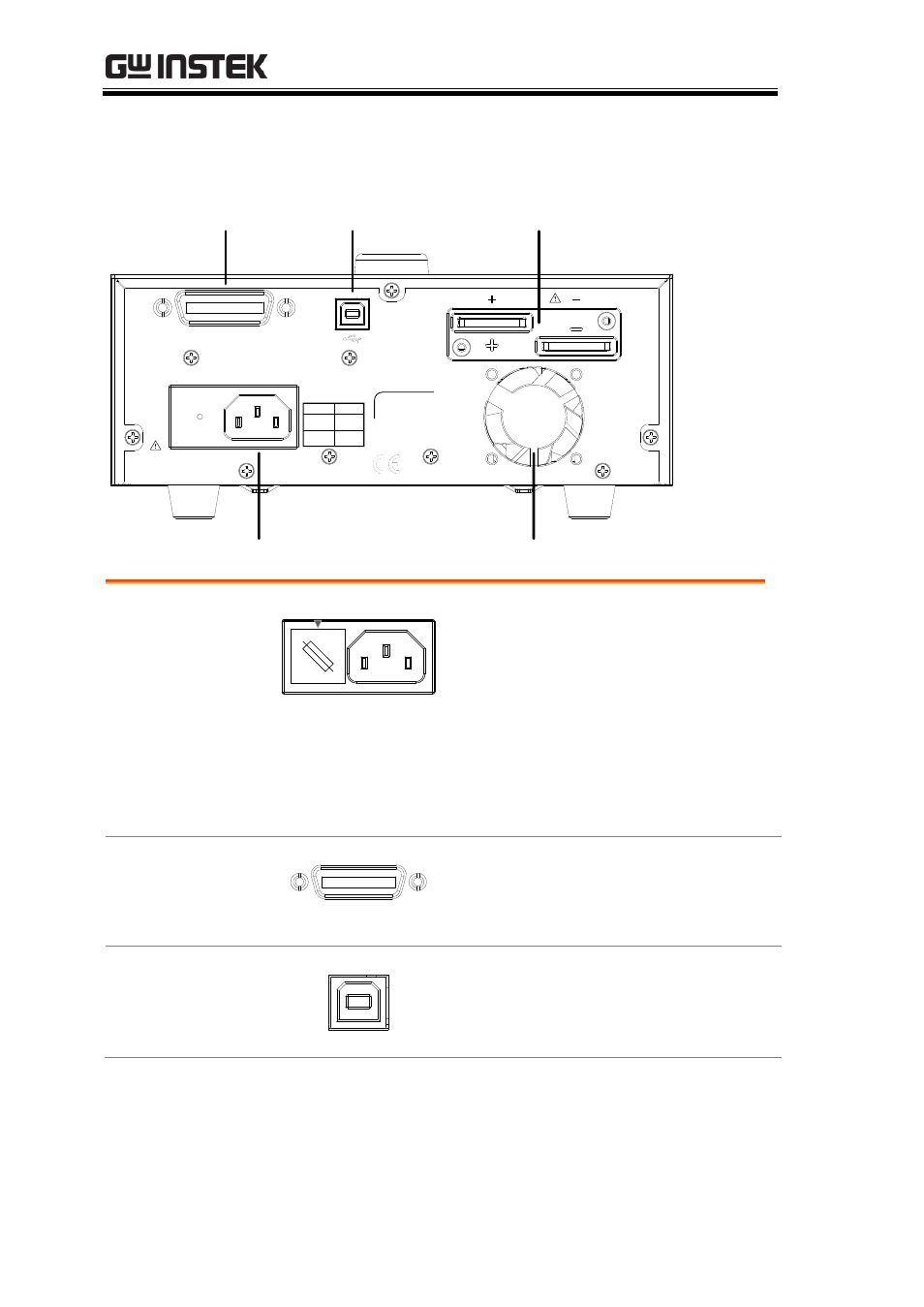

Rear Panel
GPIB
300A MAX.
50 / 60 Hz 35VA MAX.
LINE RATING
FUSE LINE
100VAC
120VAC
220VAC
240VAC
T200mA
SER.NO. LABEL
AND TEST LEADS BEFORE
DISCONNECT POWER CORD
REPLACING FUSE
INPUT
T100mA
( NO FUSE )
17 18
16 20
19
16. Power Cord
Socket
Fuse Socket
1
0
0
2
2
0
120
24 0
Accepts the power cord.
Input: AC 100/120/220/240V
±10%
Line frequency: 50Hz/60Hz
Power: 35VA Max
Fuse rating: T200mA, 250V for
AC 100/120V; T100mA, 250V for
AC 220/240V
17. GPIB
Communicati
on Port
GPIB used for remote control.
18. USB
Communicati
on Port
USB B device port. Used for
remote control and firmware
update.
