GETTING STARTED
15
Auto Autorange indicator for the 30mA,
300mA and 3A ranges. If the
Autorange indicator is off, then
that indicates that the range has
been manually selected.
mA Milliamp unit indicator.
A Ampere unit indicator.

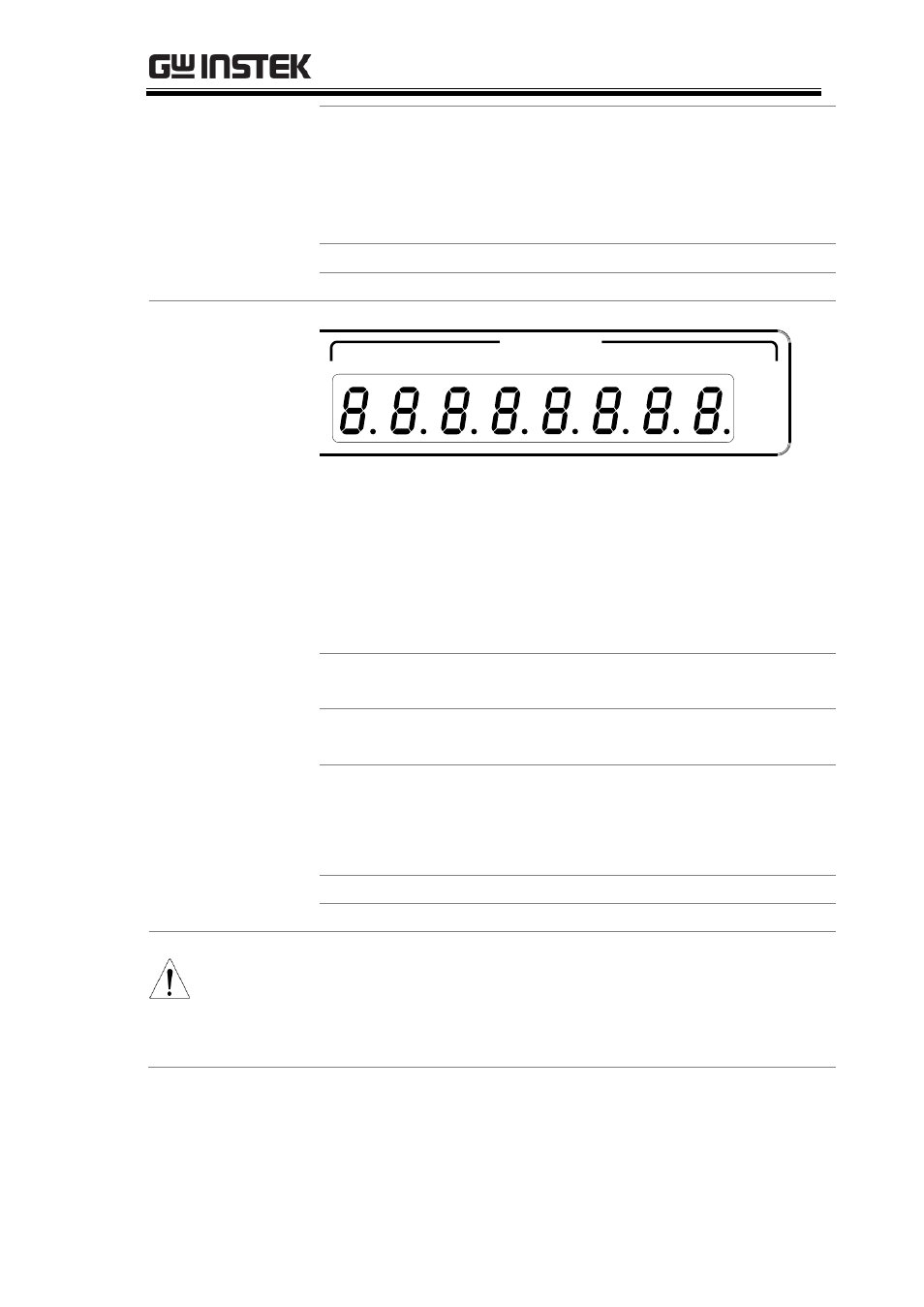

15. Voltage Meter
RMT ACA 30A Auto
mA
A
CURRENT
ACV DCV Auto
mV
V
VOLTAGE
DCA 300A ERROR
Displays voltage measurement.
ERROR Indicates an interface error. The
SYSTem:ERRor? query can be
used to read back error messages.
See page 87 and 74 for details.
ACV AC voltage measurement mode
indicator.
DCV DC voltage measurement mode
indicator.
Auto Autorange indicator. If the Auto
indicator is off, then that indicates
that the range has been manually
selected.
mV Millivolt unit indicator.
V Volt unit indicator.
Warning:
For the 3A, 30A and 300A terminals on the front and
rear panels, the maximum voltage difference
between the negative terminal and earth cannot
exceed 500Vpeak.
