Sweep (2100 series only)

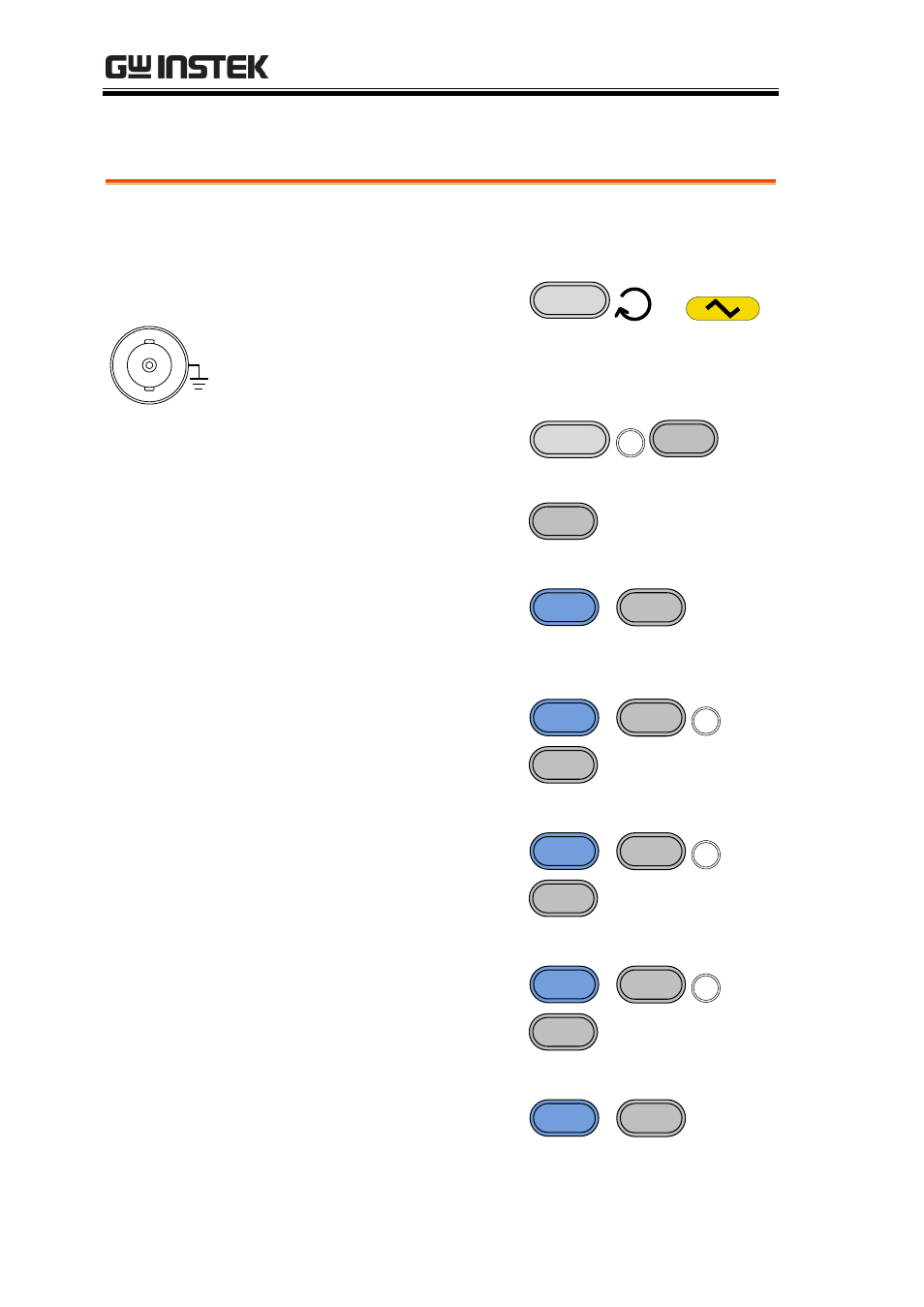

Example: Frequency Sweep. Start Frequency 1Hz, Stop Frequency
1MHz. 1Hz Rate. 1Vpp. Linear Sweep.
Output
50
W
MAIN
1. Press the FUNC
key repeatedly to
select the Ramp
wave.
FUNC
→
2. Press AMPL > 1 >
Vpp.
AMPL
1
Hz/Vpp
3. Press Sweep.
Sweep
4. Press Shift >
INT/EXT > select
INT source.
Shift
+
INT/EXT
kHz/Vrms
5. Press Shift >
Start/Stop select
Start> 1 > Hz.
Shift
+
Start/Stop
Sweep
1
Hz/Vpp
6. Press Shift >
Start/Stop select
Stop> 1 > MHz.
Shift
+
Start/Stop
Sweep
1
MHz/dBm
7. Press Shift > Rate
> 1 > Hz.
Shift
+
Rate
FSK
1
Hz/Vpp
8. Press Shift >
LIN/LOG > select
LINS.
Shift
+
LIN/LOG
%
