QUICK REFERENCE
23
ARB
ARB - Points

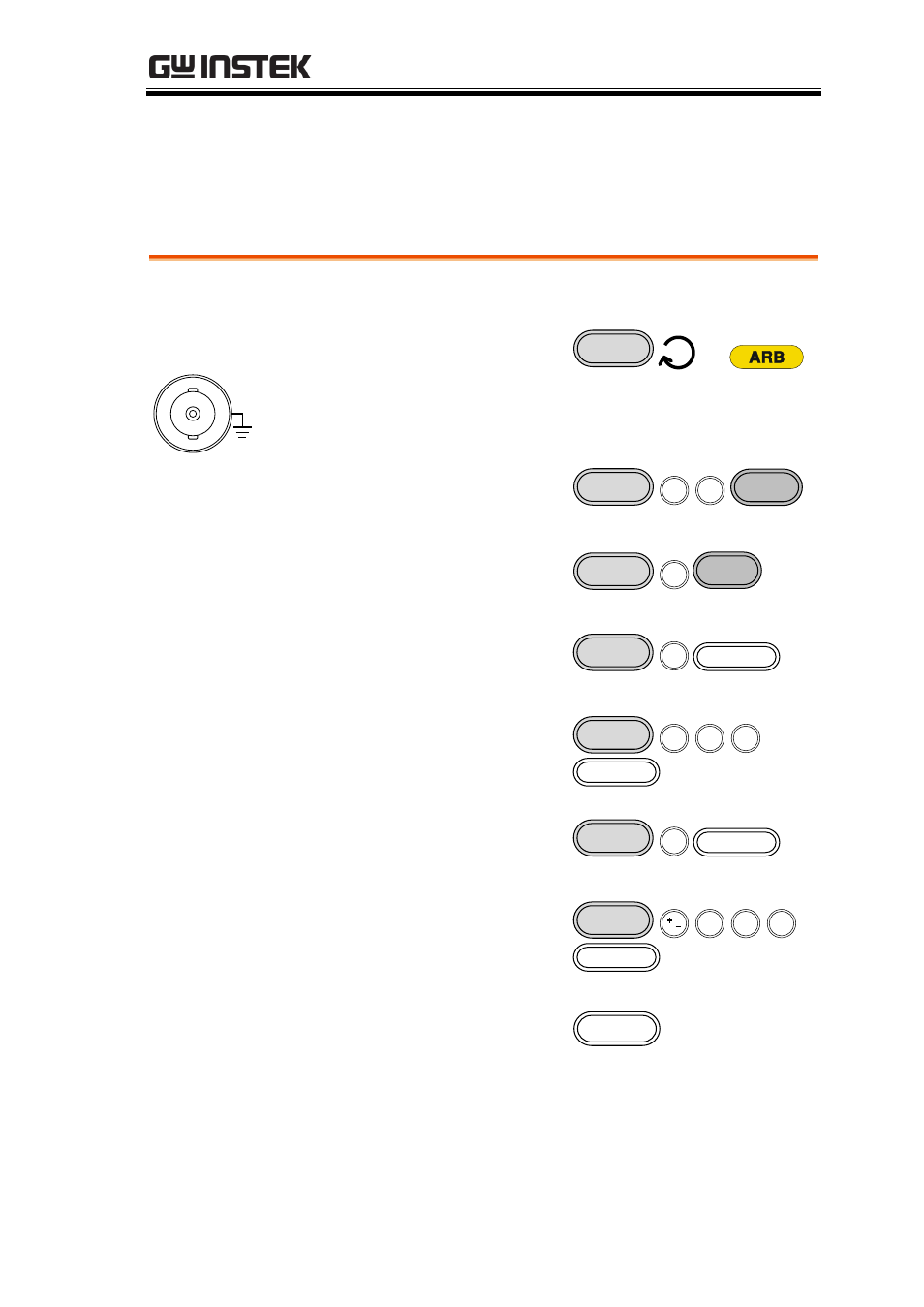

Example: 2 ARB points, 10 kHz, 1Vpp.
Output
50
W
MAIN
1. Press the FUNC
key repeatedly to
select the ARB
wave.
FUNC
→
2. Press FREQ > 1 > 0
> kHz.
FREQ
1 0
kHz/Vrms
3. Press AMPL > 1 >
Vpp.
AMPL
1
Hz/Vpp
4. Press Point > 0 >
Enter.
Point
0 Enter
5. Press Value > 5 > 1
>1 > Enter.
Value
5 1 1
Enter
6. Press Point > 1 >
Enter.
Point
1 Enter
7. Press Value > ± > 5
> 1 >1 > Enter.
(-511)
Value
/ 5 1 1
Enter
8. Press the OUTPUT
key.
OUTPUT
