AFG-2000 Series User Manual
22
3. Press AMPL > 3 >
Vpp.
AMPL
3
Hz/Vpp
4. Press DUTY > 7 > 5
> %.
DUTY
7 5
%
5. Press the output
key.
OUTPUT

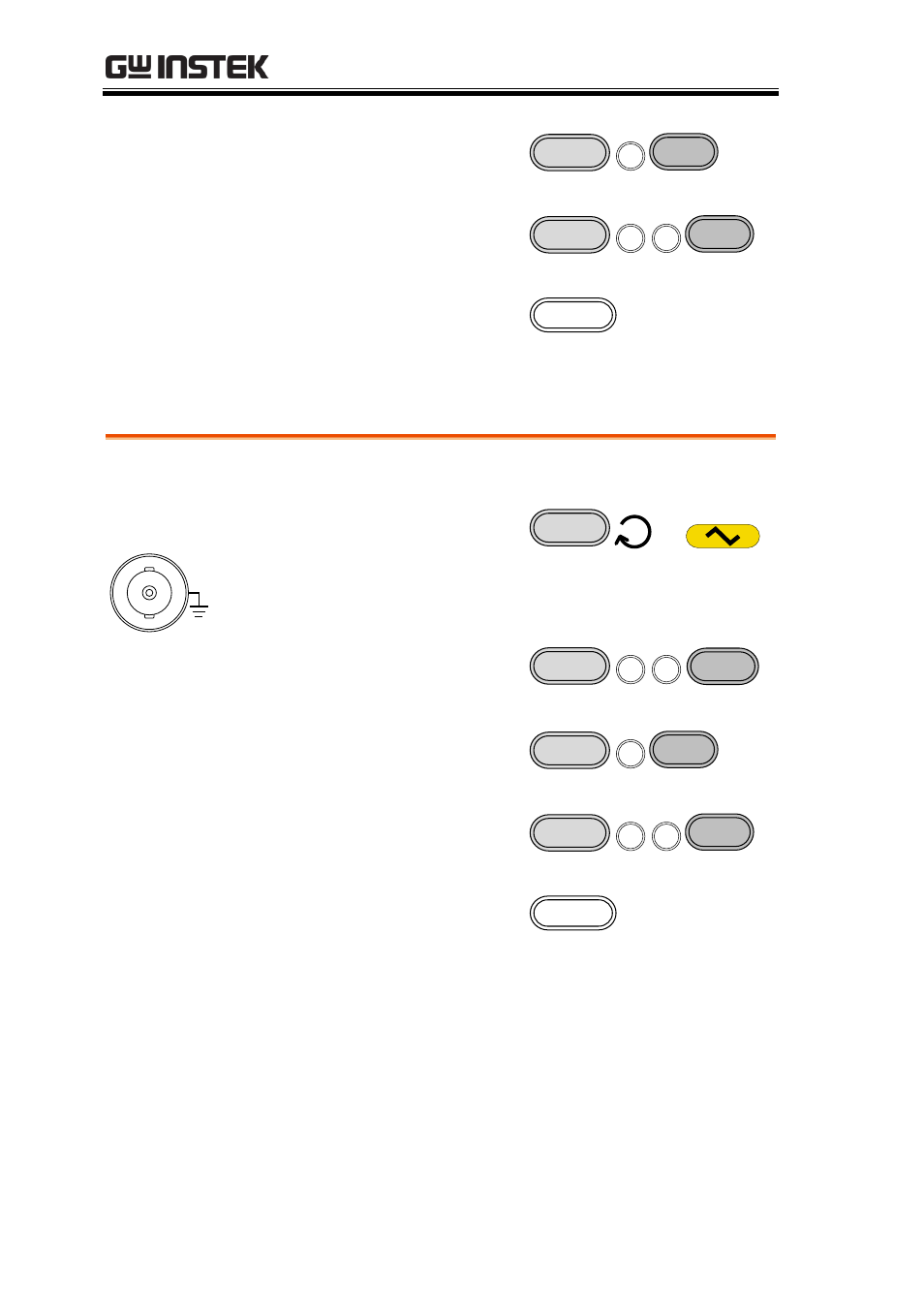

Ramp Wave
Example: Ramp Wave, 10kHz, 3Vpp, 25% symmetry
Output
50
W
MAIN
1. Press the FUNC
key repeatedly to
select the Ramp
wave.
FUNC
→
2. Press FREQ > 1 > 0
> kHz.
FREQ
1 0
kHz/Vrms
3. Press AMPL > 3 >
Vpp.
AMPL
3
Hz/Vpp
4. Press DUTY > 2 > 5
> %.
DUTY
2 5
%
5. Press the OUTPUT
key.
OUTPUT
