GDS-1000A-U Programming Manual
6

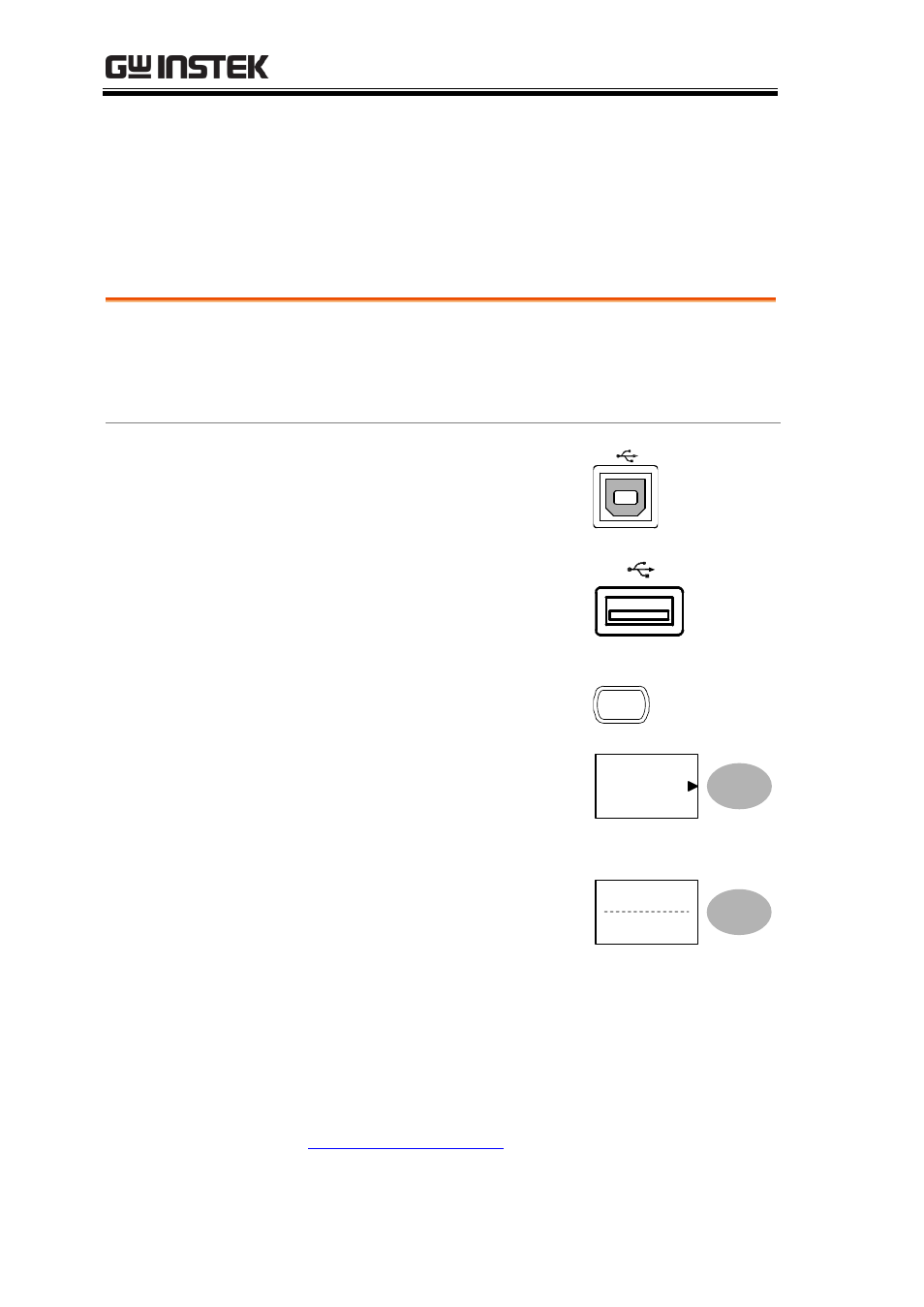

Configuring the USB Interface
This section describes how to set up the USB port for remote control.
Note that printing to a PictBridge compatible printer and remote
control cannot be supported at the same time as the same USB port
is used.
USB connection PC / Printer end Type A, host
GDS-1000A-U end Type B, slave
Speed 1.1/2.0 (full speed)
Panel operation 1. Connect the USB cable to
the USB slave port on the
rear panel.
2. Insert the other end of the
USB cable into the PC USB
port.
3. Press the Utility key. Utility
4. Press More twice.
More
x2
5. Press USB Port repeatedly to
set the host device to PC.
USB Port
Auto Detect
Range Printer, PC, Auto Detect
6. When the PC asks for the USB driver, select
dso_cdc_1000.inf (Windows XP) or
dso_vista_cdc.inf (Vista 32bit) which are
downloadable from the GW website,
www.gwinstek.com , GDS-1000A-U product
corner.
