SEED HAWK
®
AIRCART OPERATOR’S MANUAL 24
4.3.2 OPERATING THE CONVEYOR
1. Ensure that all screens and shrouds are in
place and that cleanout gate on each meter is
closed, Figure 17.
2. Activate tractor hydraulic circuit #4, and pull
the diverter valve up to the auger circuit.
3. Use either of the buttons located at the top
and bottom of the conveyor to start and stop
the conveyor, Figure 18.
4. Whether filling or unloading the aircart, the
auger performs at its highest capacity when
product is falling directly into the flighting.
4.3.3 CONVEYOR POSITION FOR UNLOADING AIRCART
1. Using your remote, rotate the conveyor hopper
under any of the aircart compartments in order
to empty them, Figure 19.
2. Loosen the cross thumb‐nuts on the cleanout
gate, Figure 8, and slide it up to allow product to
fall between the airstream tubes.
3. Once emptied, the bottom airstream door can
be removed for complete cleanout below the
meter.

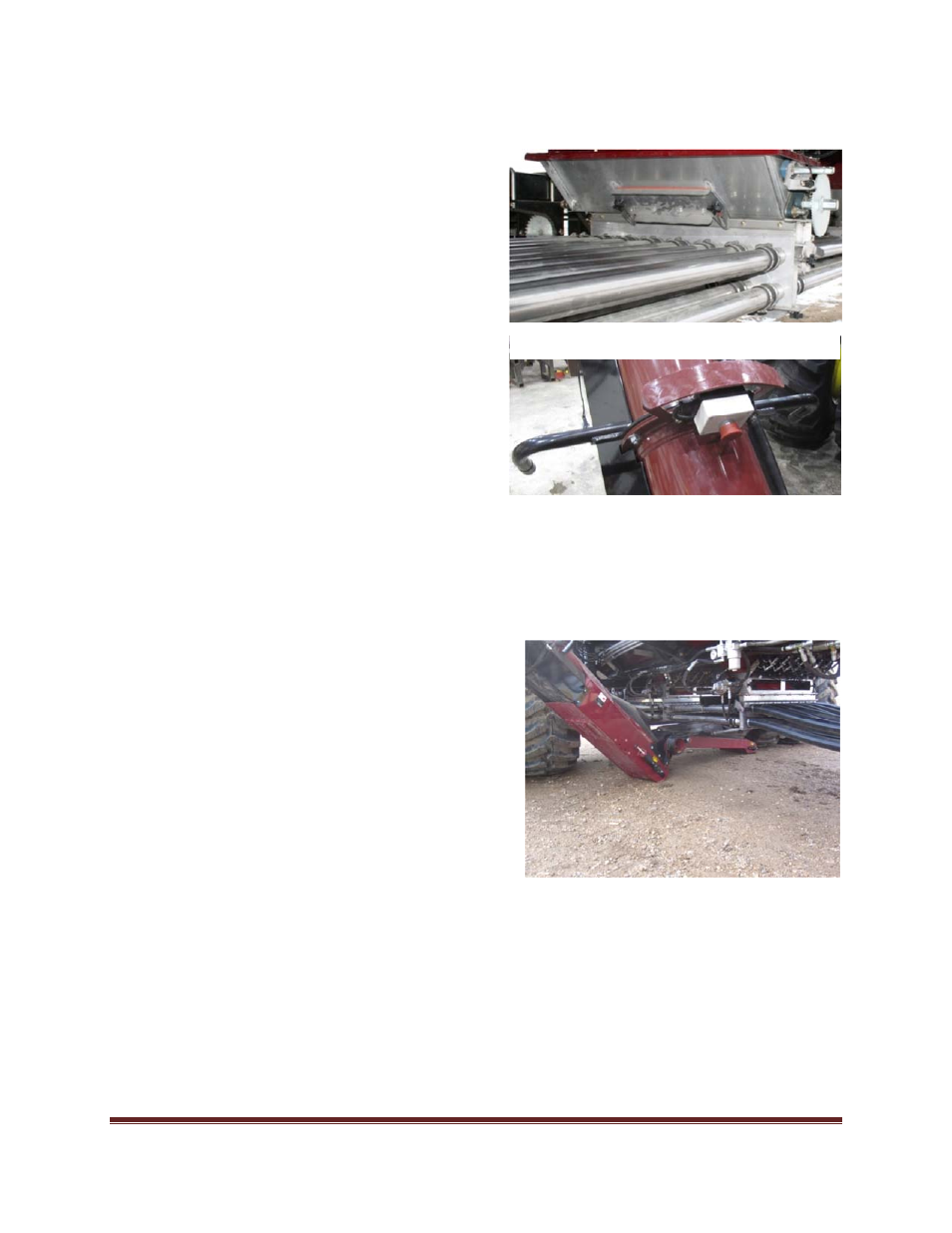

Figure 17
Figure 18
Figure 19
