SEED HAWK
®
AIRCART OPERATOR’S MANUAL 23
4.3.1 POSITIONING THE CONVEYOR
NOTE: Ensure that the area in the vicinity of conveyor operation is free of obstructions and
that all bystanders, especially children, are kept at a safe distance before positioning
or operating the conveyor.
1. Ensure your tractor circuit is engaged in
the correct direction prior to engaging the
conveyor diverter valve. If circuit is already
engaged, direct the fan diverter valve to the
conveyor position from the fan setting. Use
the remote provided to move the conveyor
in and out of transport. NOTE: If remote
does not operate properly use manual
levers provided as backup control.
2. Remove pin from outer arm locking
mechanism and unlatch, Figure 14.
3. Remove pin from rear locking arm, swing
out handle, and release conveyor, Figure
15.
4. Maneuver conveyor, using tilt cylinder first
to lift conveyor out of the front saddle,
Figure 16.
5. Move the outer arm and then the inner arm
to position conveyor where filling or
emptying the aircart is optimal. Unlatch
and unfold the conveyor hopper.
6. Hydraulic cylinders will hold the position so
conveyor will not move even if placed on
uneven terrain.

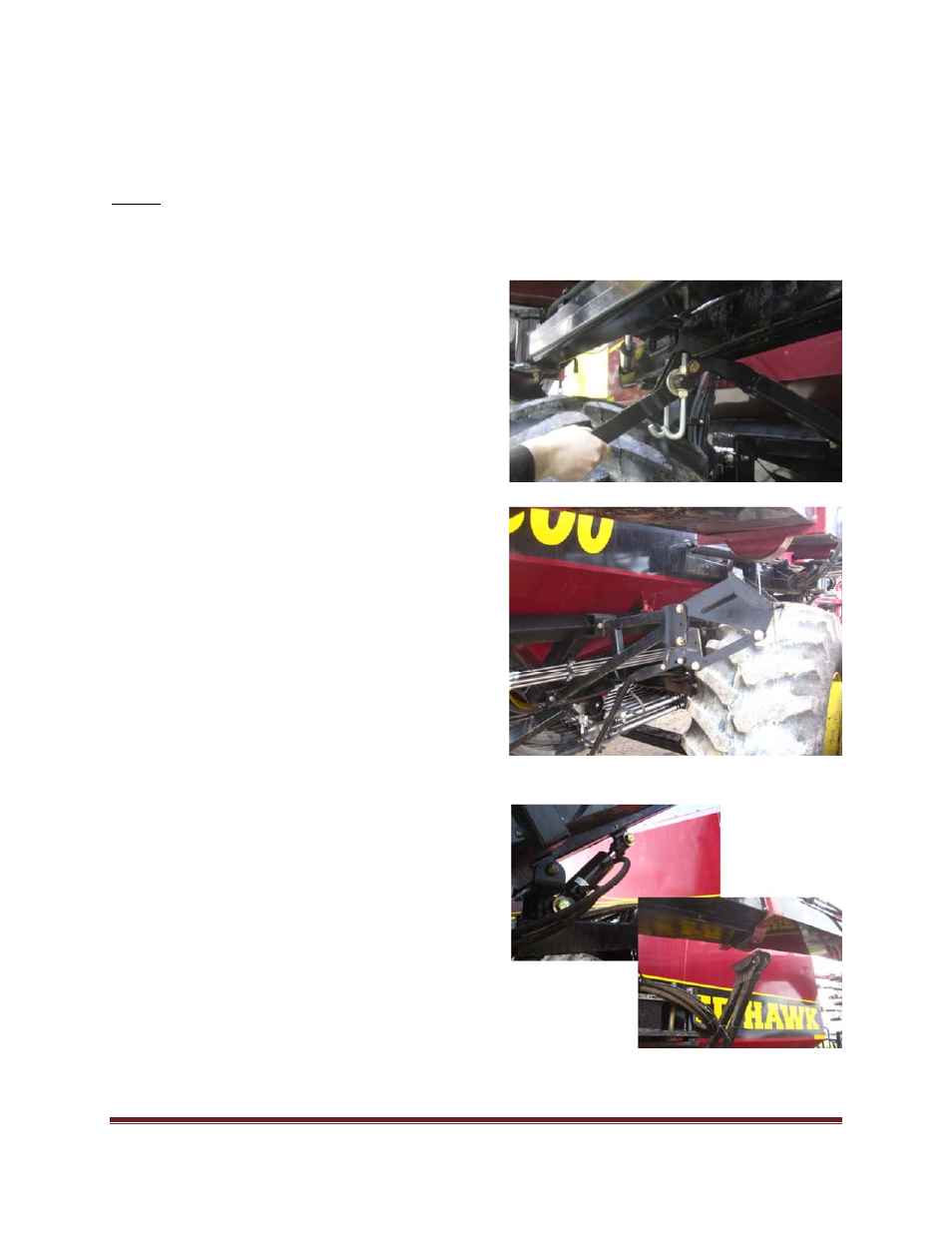

Figure 14
Figure 15
Figure 16
