64 Fabric OS Encryption Administrator’s Guide (DPM)
53-1002922-01
Configuring hosts for encryption targets
2
NOTE
You can also select a group, switch, or engine from the Encryption Center Devices table, then
click the Targets icon.
The Encryption Targets dialog box displays. (Refer to Figure 47 .)

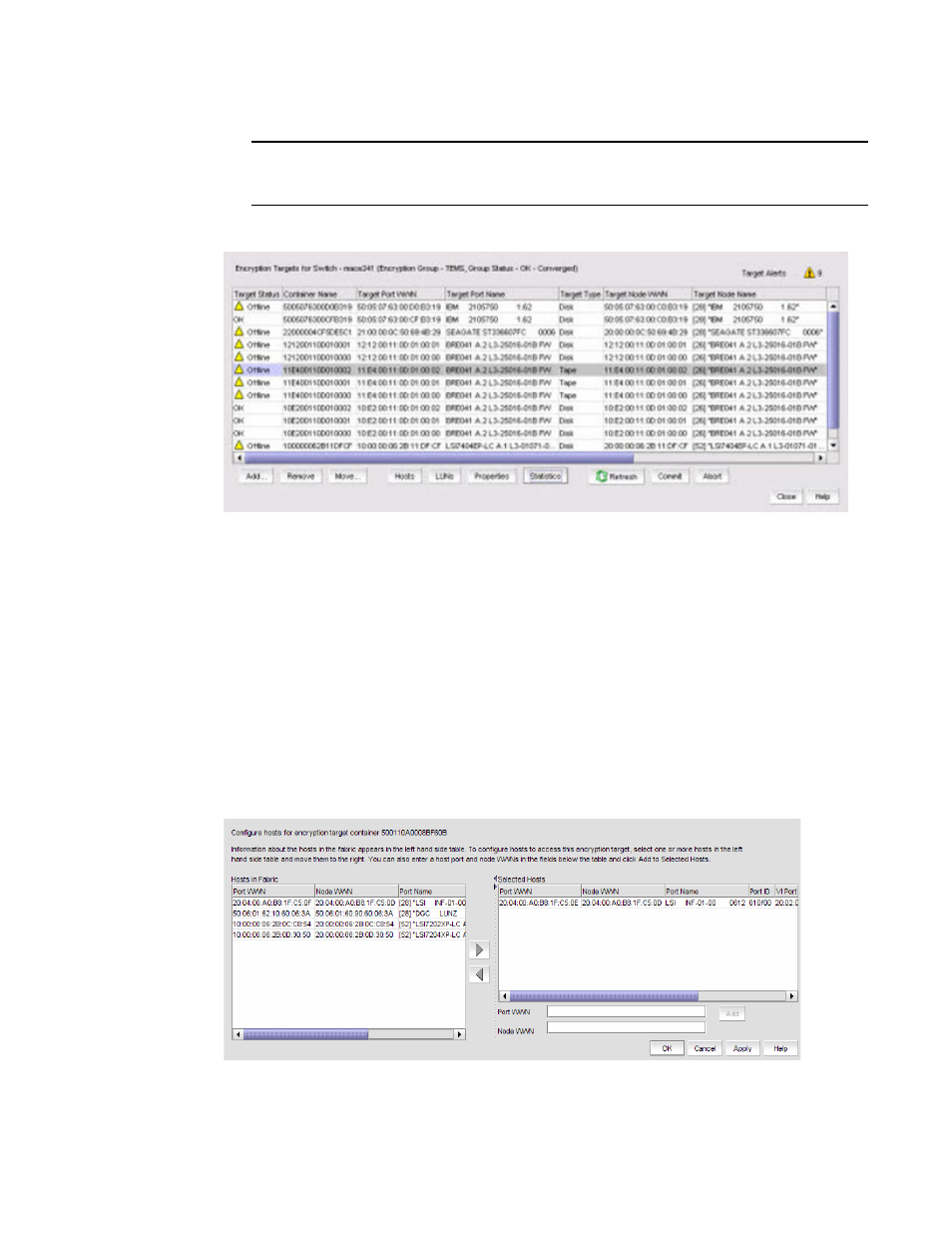

FIGURE 47 Encryption Targets dialog box
3. Select a target storage device from the list, then click Hosts.
The Encryption Target Hosts dialog box displays. (Refer to Figure 48 .) The Hosts in Fabric table
lists the configured hosts in a fabric.
The table displays the following information:
• Port WWN: The world wide name of the host ports that are in the same fabric as the
encryption engine.
• Node WWN: The world wide name of the host nodes that are in the same fabric as the
encryption engine.
• Port Name: The name of the hosts that are in the same fabric as the encryption engine.
• Port ID: Displays the 24-bit port ID (PID) of the host port in both the Hosts in Fabric table
and the Selected Hosts table.
FIGURE 48 Encryption Target Hosts dialog box
