Fabric OS Encryption Administrator’s Guide (DPM)

49

53-1002922-01

Adding a switch to an encryption group

2

6. Enter the location where you want to store the public key certificate that is used to

authenticate connections to the key vault, or browse to the desired location, then click Next.

The Confirm Configuration dialog box displays. (Refer to

Figure 33

.) Confirm the encryption

group name and switch public key certificate file name you specified are correct, then click
Next.

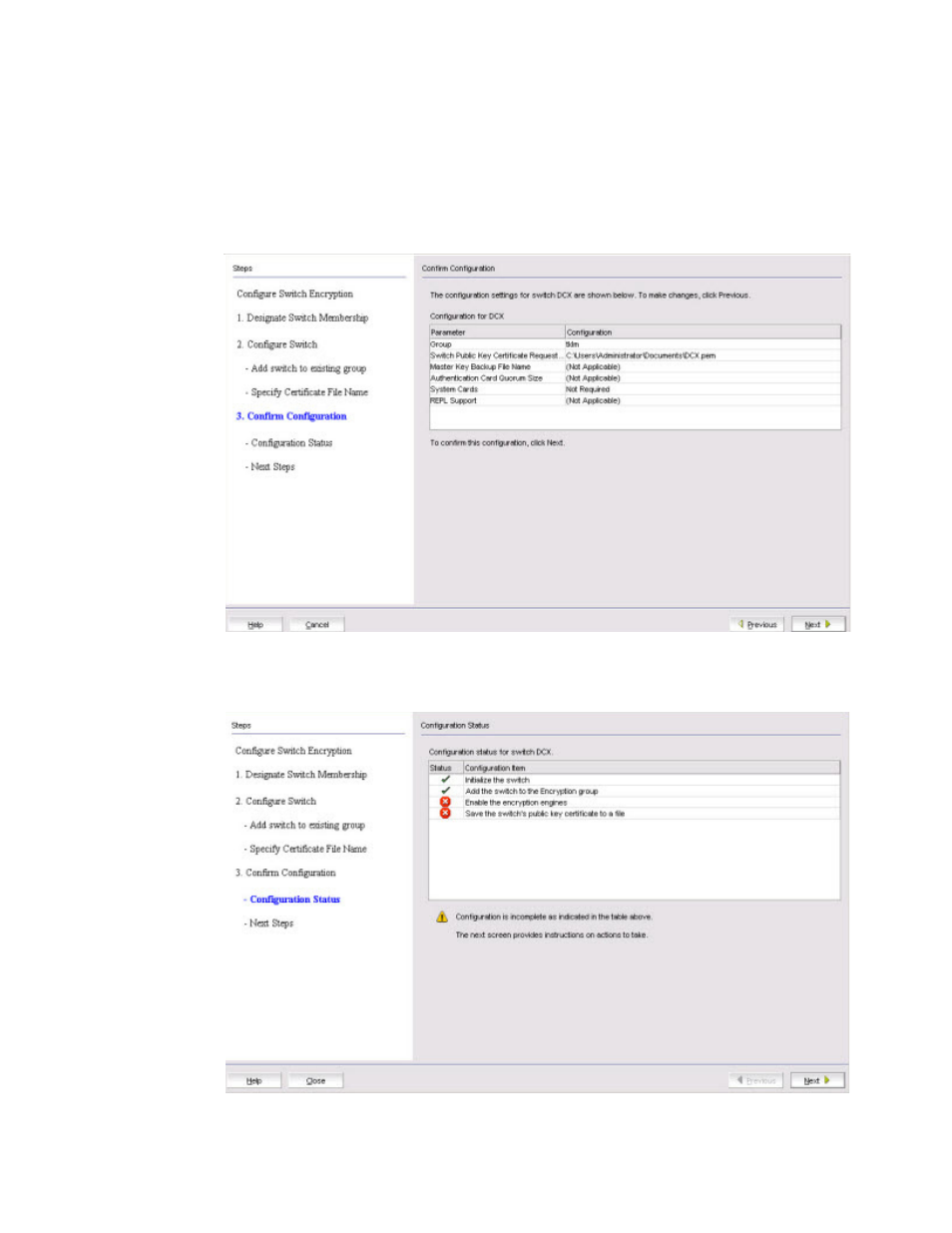

FIGURE 33

Confirm Configuration dialog box

The Configuration Status dialog box displays. (Refer to

Figure 34

.)

FIGURE 34

Configuration Status dialog box
