High availability clusters
2

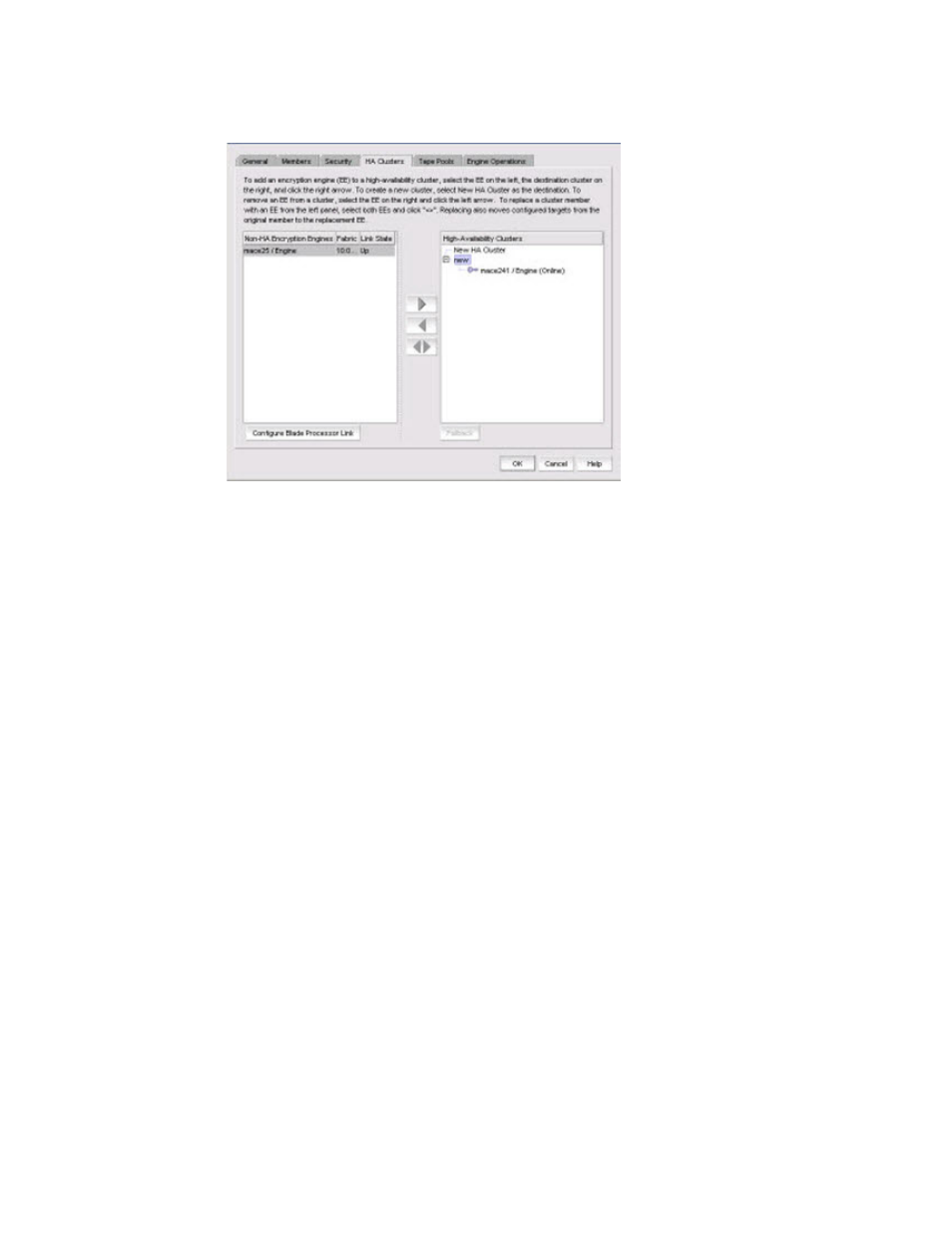

FIGURE 37 Encryption Group Properties dialog box - HA Clusters tab
To add the second encryption node to the HA cluster, perform the following procedure.
1. Select the desired HA cluster from the right panel.
2. Select the desired encryption engine to be added from the left panel.
3. Click the right arrow to add the encryption engine to the selected HA cluster.
4. Click OK.
Removing engines from an HA cluster
Removing the last engine from an HA cluster also removes the HA cluster.
If only one engine is removed from a two-engine cluster, you must either add another engine to the
cluster, or remove the other engine.
1. Select Configure > Encryption from the menu task bar to display the Encryption Center
dialog box. (Refer to Figure 6 on page 14.)
2. Select an encryption group from the Encryption Center Devices table, then select Group >
HA Cluster from the menu task bar.
The Encryption Group Properties dialog box displays, with the HA Clusters tab selected.
3. Select an engine from the High Availability Clusters table, then click the left arrow. (Refer to
Figure 37 .)
4. Either remove the second engine or add a replacement second engine, making sure all HA
clusters have exactly two engines.
5. Click OK.
