Fabric OS Encryption Administrator’s Guide (DPM)

41

53-1002922-01

Creating an encryption group

2

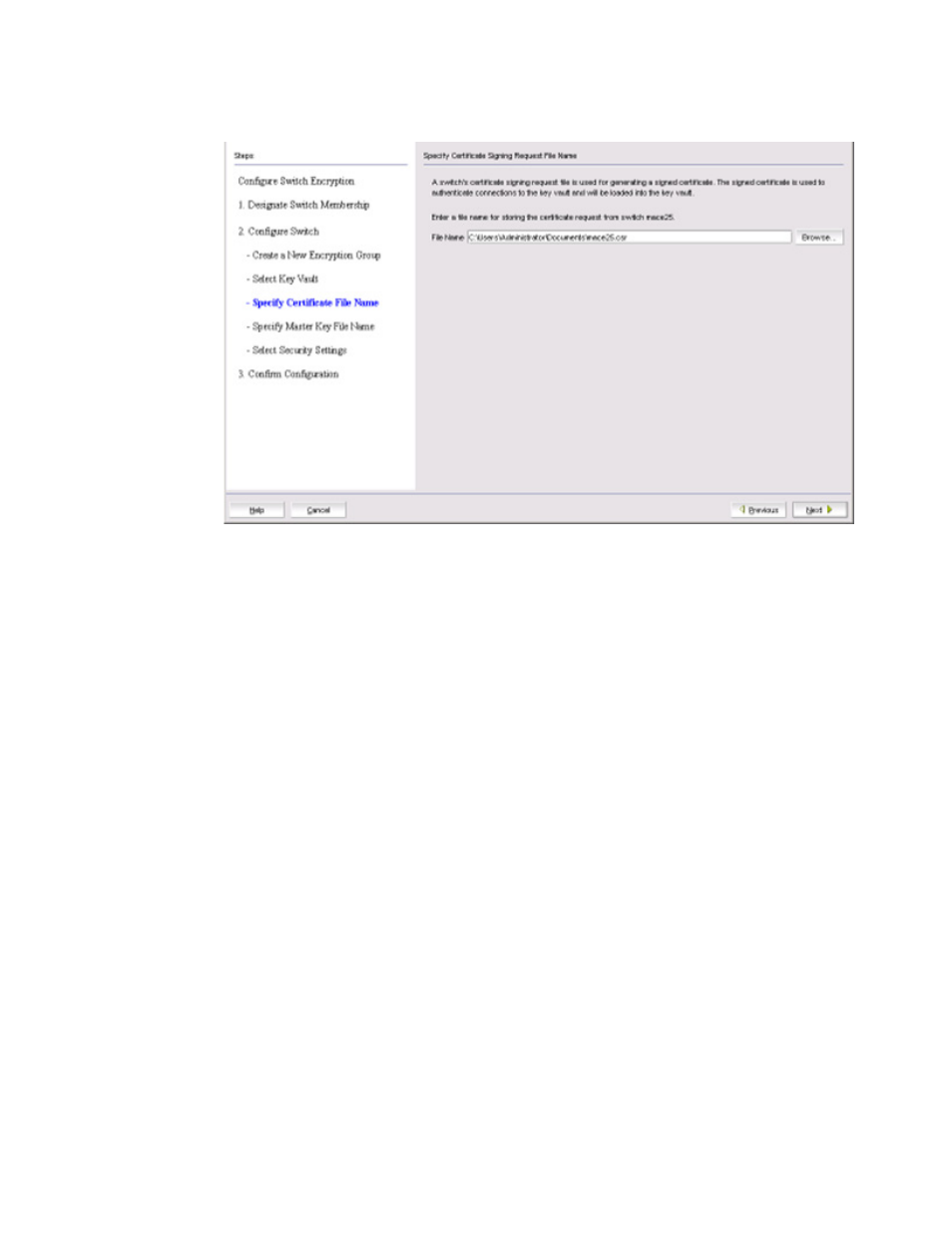

FIGURE 23

Specify Certificate Signing Request File Name dialog box

5. Enter the filename in which you want to store the certificate information, or browse to the file

location.

The certificate stored in this file is the switch’s Switch Certificate Signing file. You will need to
know this path and file name to install the switch’s Switch Certificate Signing file on the key
management appliance.

6. Click Next.

The Specify Master Key File Name dialog box displays. (Refer to

Figure 24

.)
