Fabric OS Encryption Administrator’s Guide (DPM)

89

53-1002922-01

Master keys

2

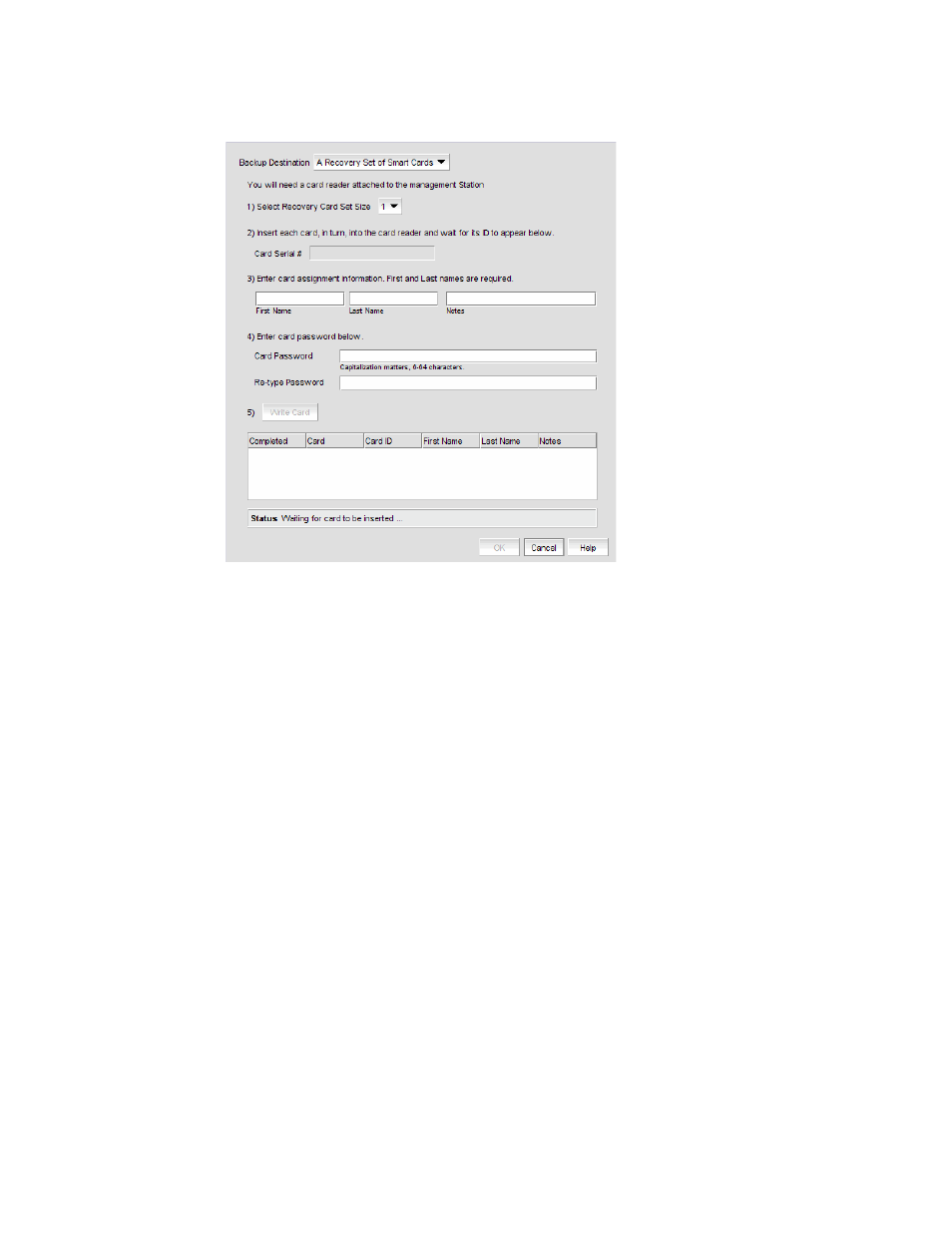

FIGURE 68

Backup Master Key for Encryption Group dialog box - Backup Destination to smart cards

4. Select A Recovery Set of Smart Cards as the Backup Destination.

5. Enter the recovery card set size.

6. Insert the first blank card and wait for the card serial number to appear.

7. Run the additional cards through the reader that are needed for the set. As you read each card,

the card ID displays in the Card Serial# field. Be sure to wait for the ID to appear.

8. Enter the mandatory last name and first name of the person to whom the card is assigned.

9. Enter a Card Password.

10. Re-enter the password for verification.

11. Record and store the password in a secure location.

12. Click Write Card.

You are prompted to insert the next card, up to the number of cards specified in

step 5

.

13. Repeat

step 6

through

step 12

for each card in the set.

14. After the last card is written, click OK in the Master Key Backup dialog box to finish the

operation.
