Fabric OS Encryption Administrator’s Guide (DPM)

57

53-1002922-01

Configuring encryption storage targets

2

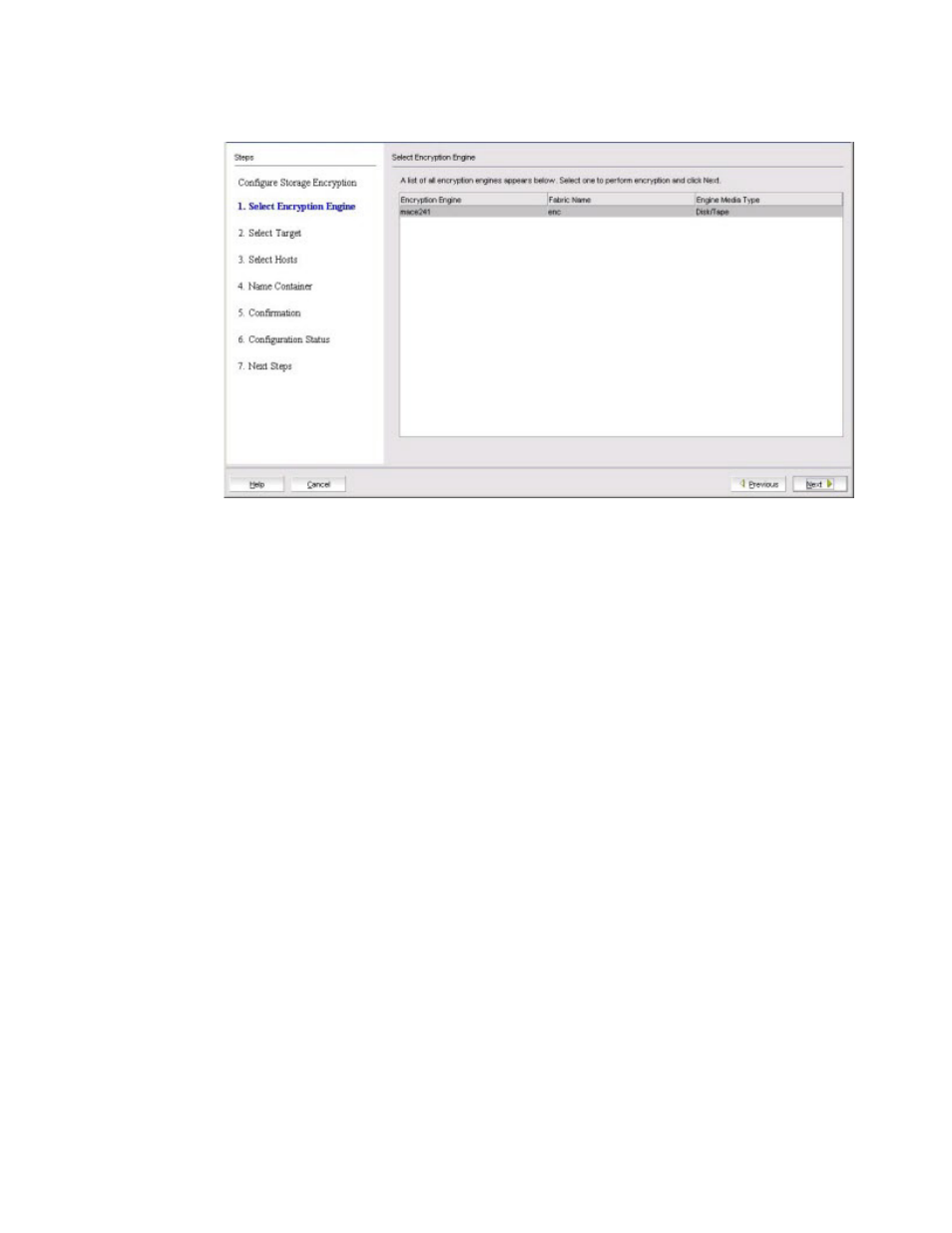

FIGURE 40

Select Encryption Engine dialog box

The dialog box contains the following information:

Encryption engine: The name of the encryption engine. The list of engines depends on the
scope being viewed:

-

If an encryption group was selected, the list includes all engines in the group.

-

If a switch was selected, the list includes all encryption engines for the switch.

-

If a single encryption engine was selected, the list contains only that engine.

Fabric Name: The name of the fabric to which the selected encryption engine (blade or
switch) is configured.

Engine Media Type: The media type of the encryption engine. Options are: Tape and Disk.

5. Select the encryption engine (blade or switch) to configure, then click Next.

The Select Target dialog box displays. (Refer to

Figure 41

.) The dialog box lists all target ports

and target nodes in the same fabric as the encryption engine. The Targets in Fabric table does
not show targets that are already configured in an encryption group.
