Brocade Fabric OS Encryption Administrator’s Guide Supporting RSA Data Protection Manager (DPM) Environments (Supporting Fabric OS v7.2.0) User Manual
Page 59

Fabric OS Encryption Administrator’s Guide (DPM)
39
53-1002922-01
Creating an encryption group
2

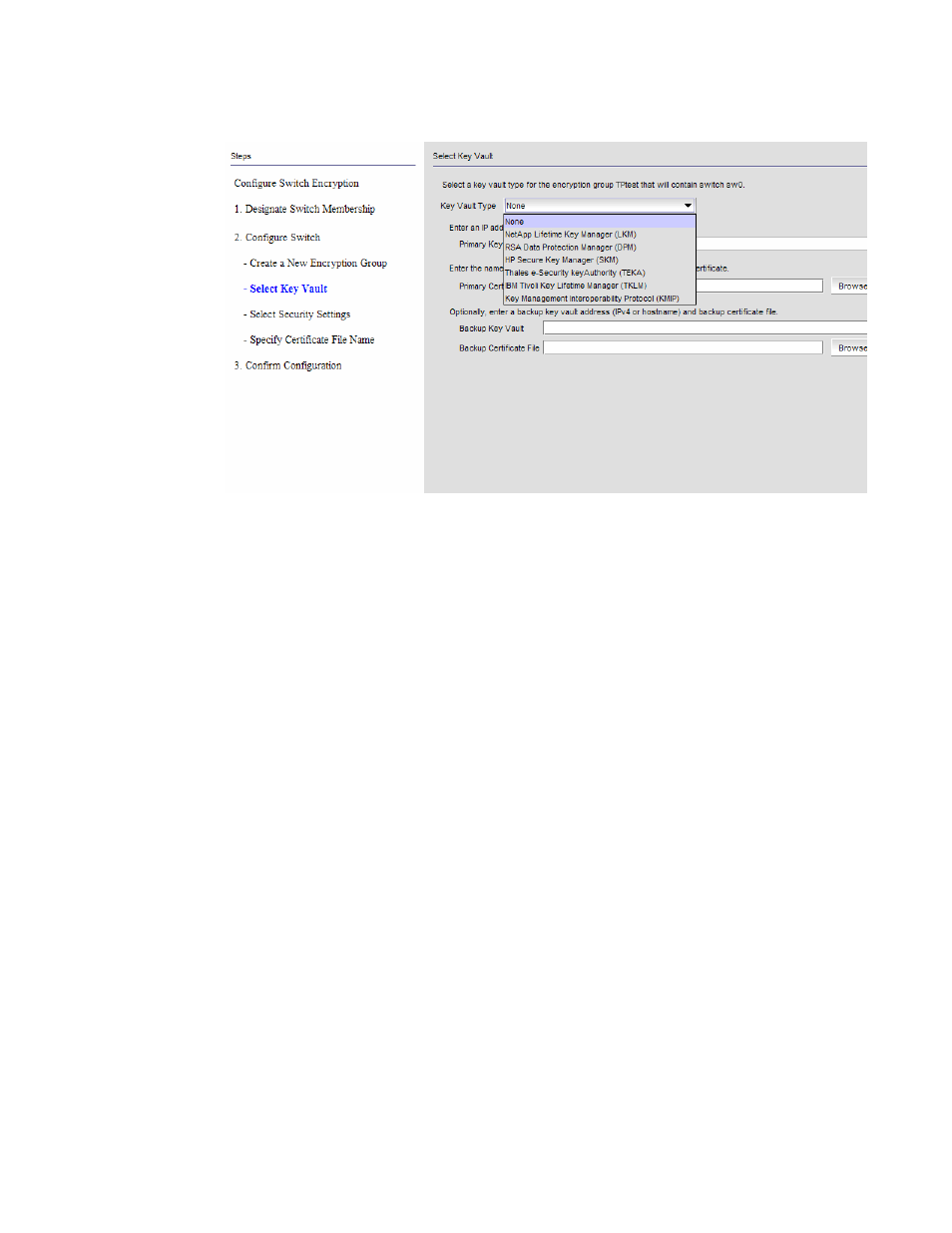

FIGURE 21
Select Key Vault dialog box
Using this dialog box, you can select a key vault for the encryption group that contains the
selected switch. Prior to selecting your Key Vault Type, the selection is shown as None. The
dialog box contains the following information:
•
Key Vault Type:
If an encryption group contains mixed firmware nodes, the Encryption Group Properties
Key Vault Type name is based on the firmware version of the group leader.
•
Options are:
•
NetApp Link Key Manager (LKM)
•
RSA Data Protection Manager (DPM): If an encryption group contains mixed firmware
nodes, the Encryption Group Properties Key Vault Type name is based on the firmware
version of the group leader. For example, If a switch is running Fabric OS 7.1.0 or later,
the Key Vault Type is displayed as “RSA Data Protection Manager (DPM).”If a switch is
running a Fabric OS version prior to v7.1.0, Key Vault Type is displayed as “RSA Key
Manager (RKM)”.
•
HP Secure Key Manager (SKM)
•
Thales e-Security keyAuthority (TEKA)
•
Tivoli Key Lifecycle Manager (TKLM)
•
Key Management Interoperability Protocol (KMIP)
8. Select RSA Data Protection Manager (DPM) as the Key Vault Type.
