Single encryption switch, two paths from host to target
4
Single encryption switch, two paths from host to target
Figure 94 shows a basic configuration with a single encryption switch providing encryption between
one host and one storage device over two the following two paths:
• Host port 1 to target port 1, redirected through CTC T1.
• Host port 2 to target port 2, redirected through CTC T2.
Host port 1 is zoned with target port 1, and host port 2 is zoned with target port 2 to enable the
redirection zoning needed to redirect traffic to the correct CTC.

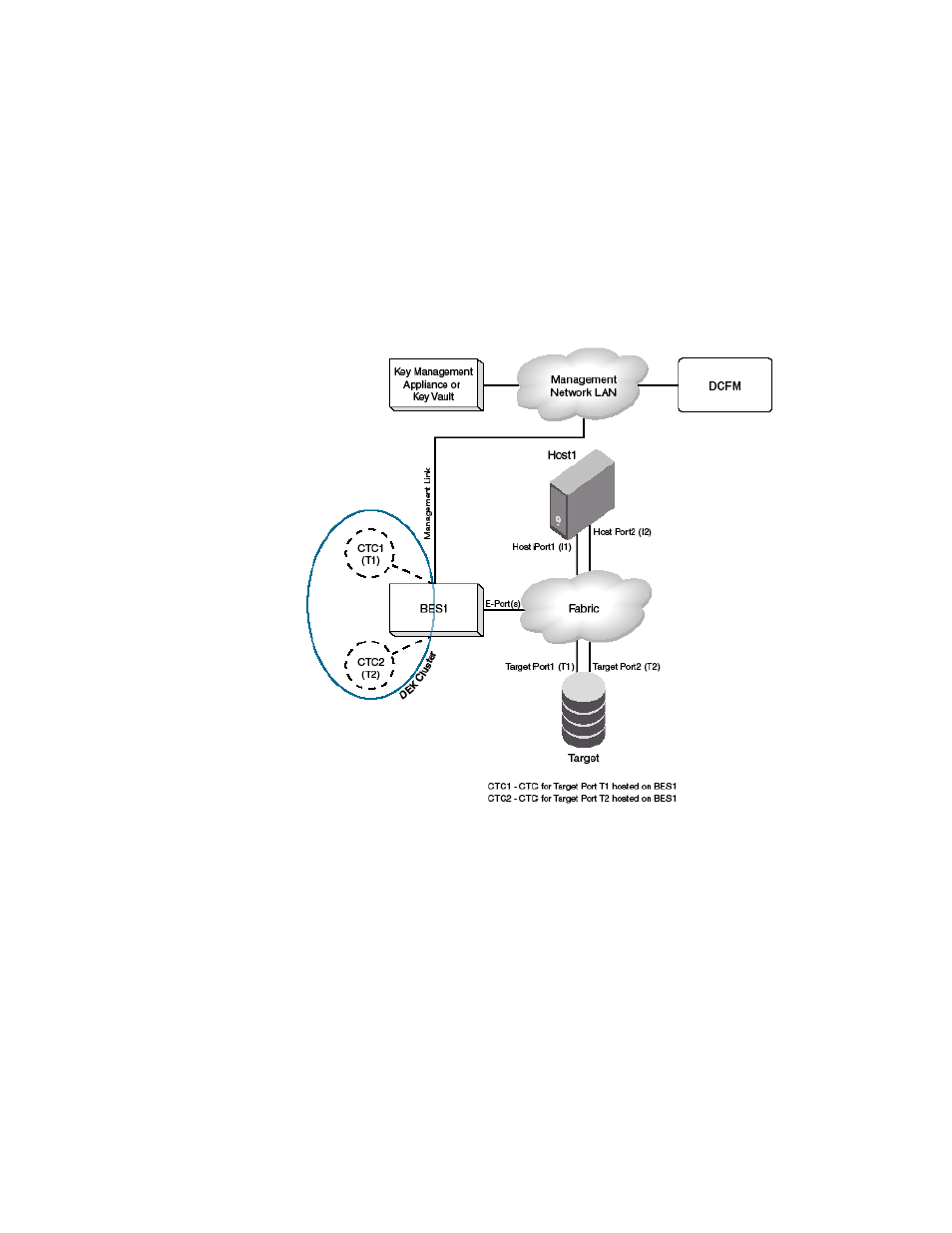

FIGURE 94 Single encryption switch, two paths from host to target
