Fabric OS Encryption Administrator’s Guide (DPM)

47

53-1002922-01

Adding a switch to an encryption group

2

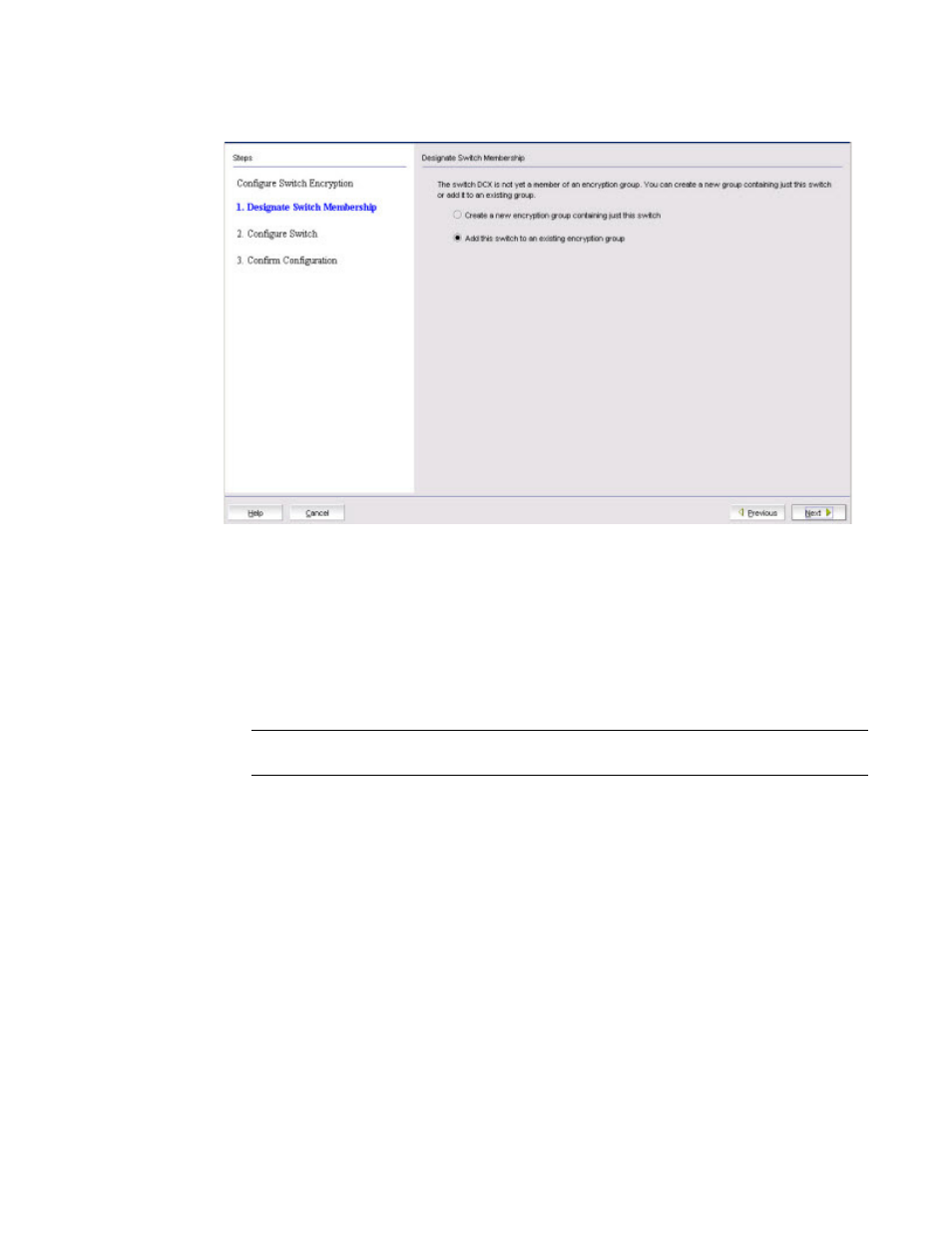

FIGURE 30

Designate Switch Membership dialog box

4. For this procedure, select Add this switch to an existing encryption group, then click Next.

The Add Switch to Existing Encryption Group dialog box displays. (Refer to

Figure 31

.)

The dialog box contains the following information:

Encryption Groups table: Enables you to select an encryption group in which to add a
switch.

Member Switches table: Lists the switches in the selected encryption group.

NOTE

If you are creating a new encryption group, refer to

“Creating an encryption group”

on page 35.
