Six 40 GbE QSFP+ port status LEDs (green)

One DIAG LED bicolor status LED (green and amber)

Two Management port status LEDs

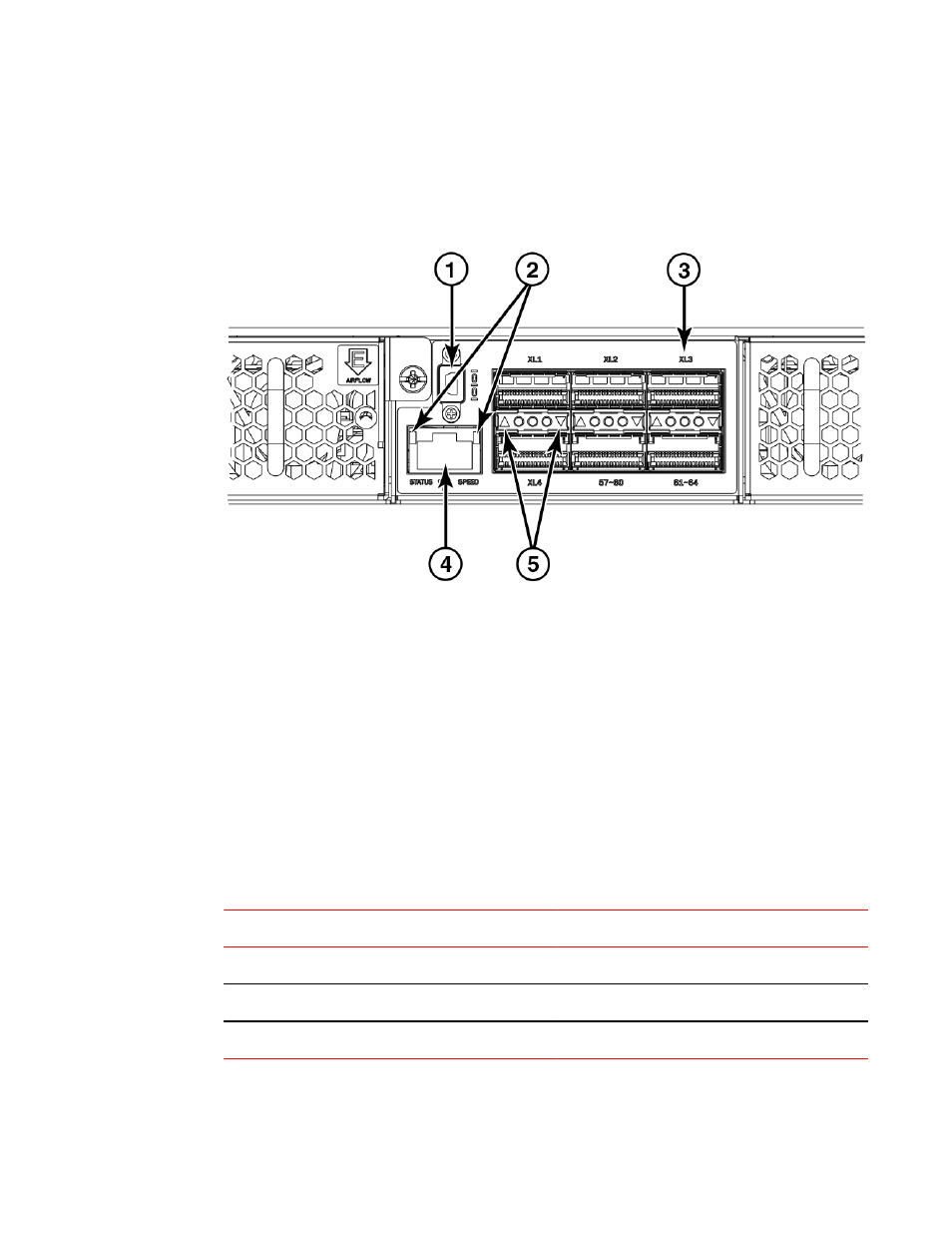

FIGURE 21 Brocade ICX 6650 rear panel LEDs and ports

1.

Mini-USB connector console port

2.

Management port status LEDs

3.

40 GbE ports

4.

Ethernet management port

5.

40 GbE port status LEDs

LED patterns

This section describes the Brocade ICX 6650 LED patterns.

PSU 1 and PSU2

PSU 1 and PSU2

TABLE 5

LED State

Status of hardware

Recommended action

Off (no light)

System is off or there is no power.

Verify the system is on and has completed booting.

Steady green

PSU is on and functioning properly.

No action required.

Steady amber

PSU is in faulty state or missing power.

Replace power supply.
