Page 17

1
Fan unit
2
Mini-USB serial console port
3
Ports 2/1 through 2/2
4
Port 2/3
5
Fan unit
6
Power supply
7
Ethernet management port
8
Port 2/4
9
Ports 3/1 through 3/8
10 Power supply

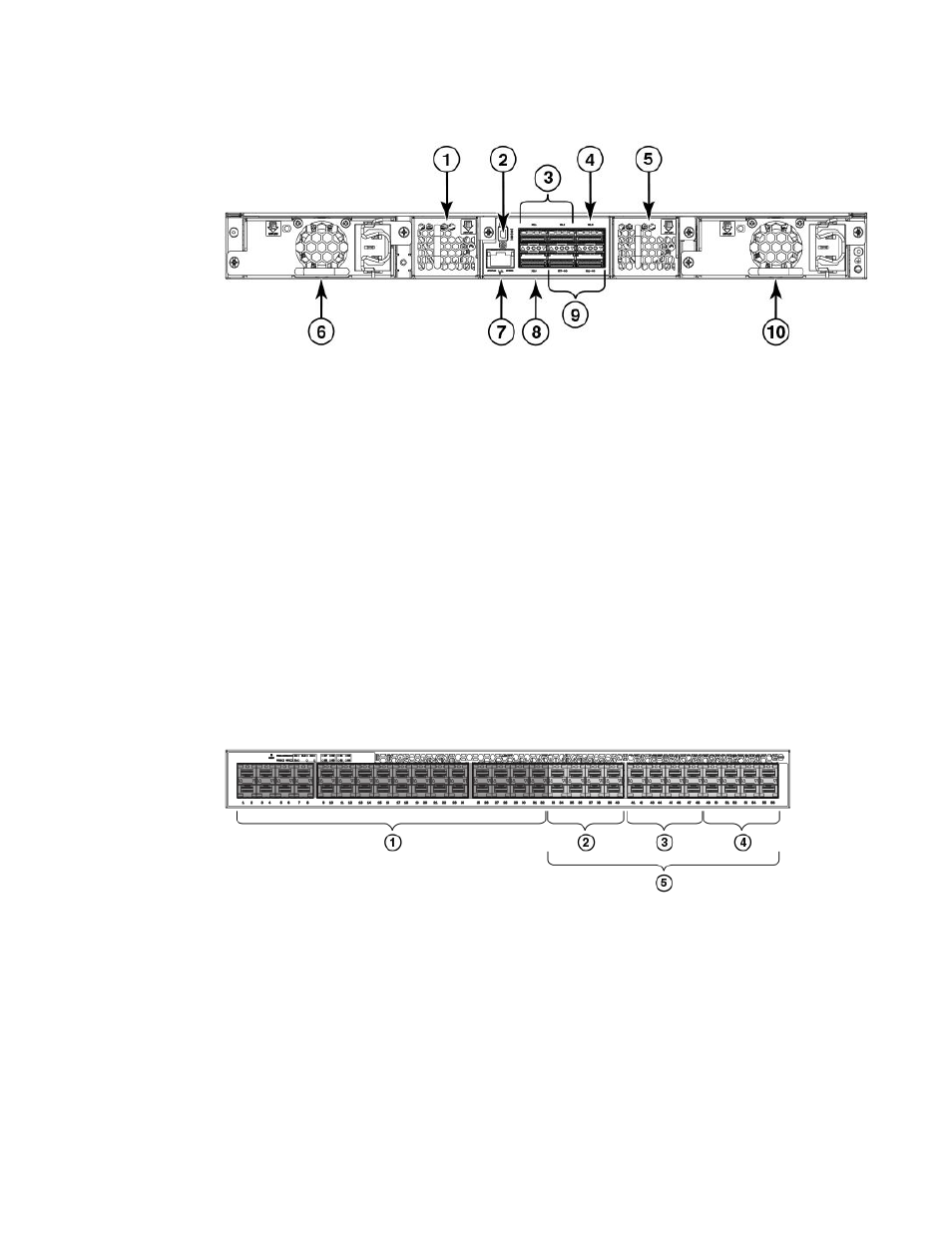

FIGURE 2 Rear view of the Brocade ICX 6650
Ports on Demand licensing
The Brocade ICX 6650 features Ports on Demand licensing. With Ports on Demand licensing, software
features do not require licenses and you can add port licenses as needed.
A fully populated device supports 56 front-panel, dual-speed 1/10 GbE SFP+ ports, 4 rear-panel 40
GbE QSFP+ ports, and 2 rear-panel 4x10 GbE QSFP+ breakout ports.
You can purchase and install Ports on Demand licenses in blocks of eight dual-speed 1/10 GbE SFP+
on the front-panel ports. These ports are grouped sequentially, enabling ports 33 through 40, 41
through 48, and 49 through 56. To enable the additional front-panel ports, you must purchase and
install an ICX6650-8P10G-LIC-POD license.
1
Base (32x10 GbE)
2
8x10 GbE (33-40)
3
8x10 GbE (41-48)
4
8x10 GbE (49-56)
5
Blocks of 8x10 GbE SFP+ ports
FIGURE 3 Brocade ICX 6650 front-panel ports
You can purchase and install up to three ICX6650-2P40G-LIC-POD licenses to enable pairs of 40 GbE
ports or 4x10 GbE breakout ports on the rear panel. An ICX6650-2P40G-LIC-POD license can be
applied to any of the following pairs of 40 GbE rear-panel ports or 4x10 GbE breakout ports:
Ports on Demand licensing
Brocade ICX 6650 Hardware Installation Guide
15
53-1003083-01
