Brocade ICX 6650 Hardware Installation Guide User Manual
Page 32

•
Eight 32-10 retainer nuts (for square-hole rack rails). Refer to item 2 in the following figure.
•
Eight 32-10 retainer nuts (for round-hole rack rails). Refer to item 3 in the following figure.

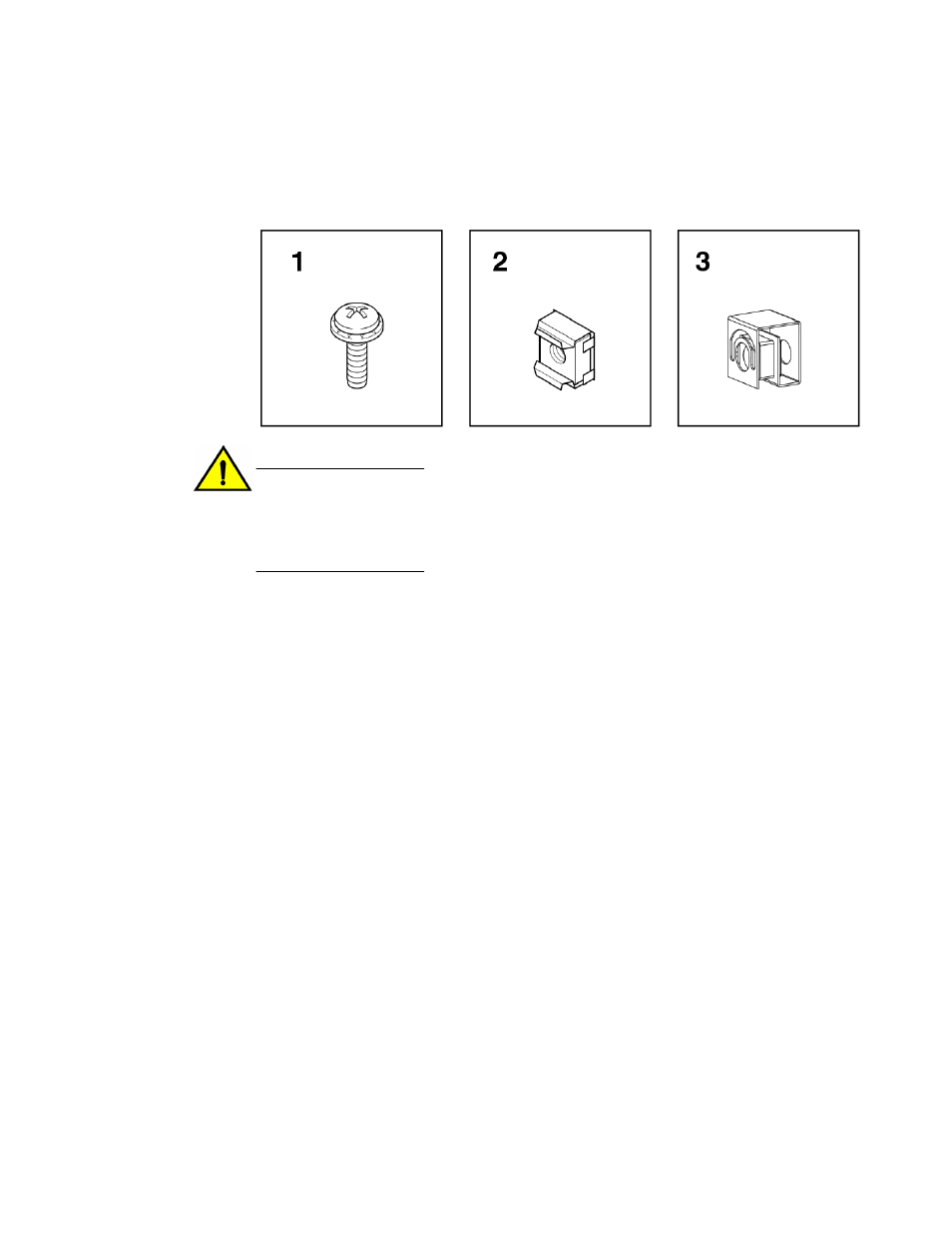

FIGURE 12 4-post screws and retainer nuts
CAUTION
Do not use the hardware supplied in a 2-post rack mounting kit to mount a Brocade ICX
6650 in a 4-post rack. Mounting the in a 4-post rack requires additional hardware to prevent
drooping from possible flexing and distortion of the 4-post rack when a device is not
properly installed.
2.
Attach the mounting brackets to the sides of the device as illustrated in
on page 27 using the 8-32 x 5/16 in. screws.
3.
Attach the appropriate rails: either side attach or rear attach as determined by the type of rack in
which you are installing the device.
Installing the Brocade ICX 6650
30
Brocade ICX 6650 Hardware Installation Guide
53-1003083-01
